Fuel Pressure Release

Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.

NOTE: Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel pressure cannot be completely released because B 15 models do not have fuel return system.

With CONSULT-II

Start engine.
Perform FUEL PRESSURE RELEASE in "WORK SUPPORT" mode with CONSULT-II.
After engine stalls, crank it two or three times to release all fuel pressure.
Turn ignition switch OFF.

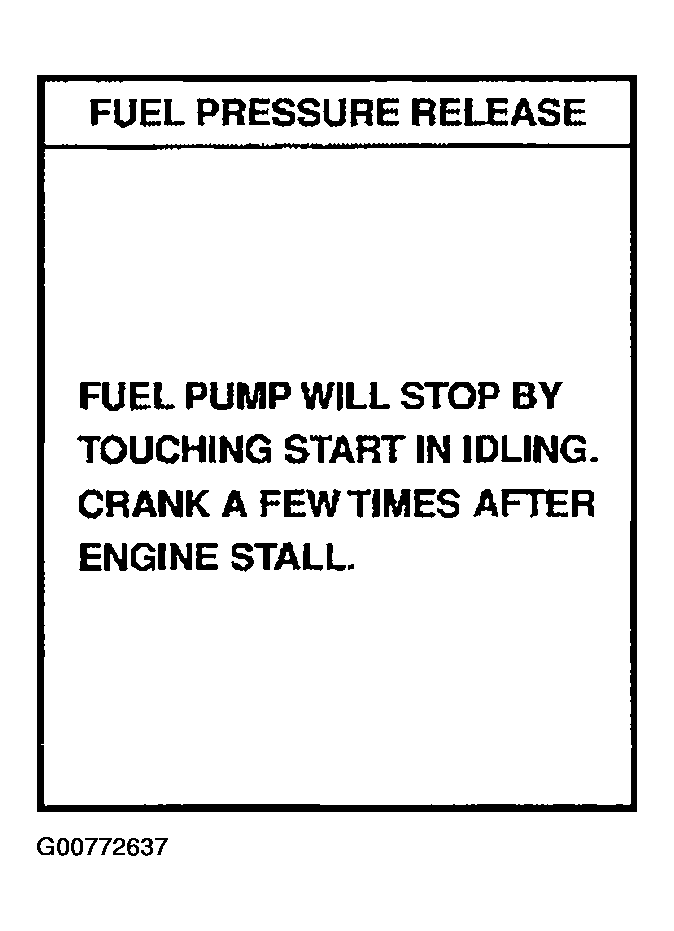

Fig 1: CONSULT-II Display Fuel Pressure Release
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Remove fuse for fuel pump.
Start engine.
After engine stalls, crank it two or three times to release all fuel pressure.
Turn ignition switch OFF and reconnect fuel pump fuse.
Reinstall fuel pump fuse after servicing fuel system.

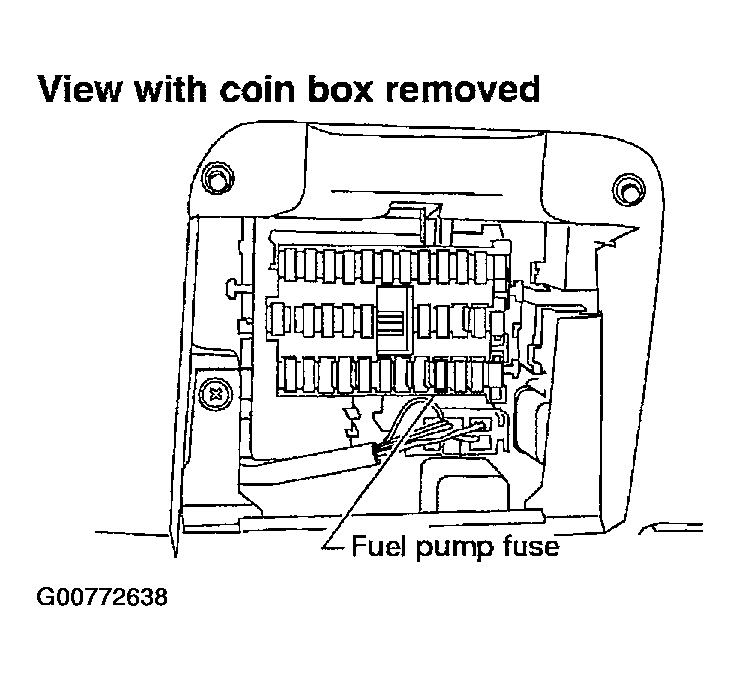

Fig 2: Removing Fuel Pump Fuse
Courtesy of NISSAN MOTOR CO., U.S.A.
