Procedure For Malfunction A

NOTE: If engine will not start or stops soon, wait at least 10 seconds with engine stopped (ignition switch ON) instead of running engine at idle speed.

With CONSULT-II

Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.
Start engine and warm it up to normal operating temperature.
Run engine for at least 10 seconds at idle speed.
If DTC is detected, go to DIAGNOSTIC PROCEDURE .

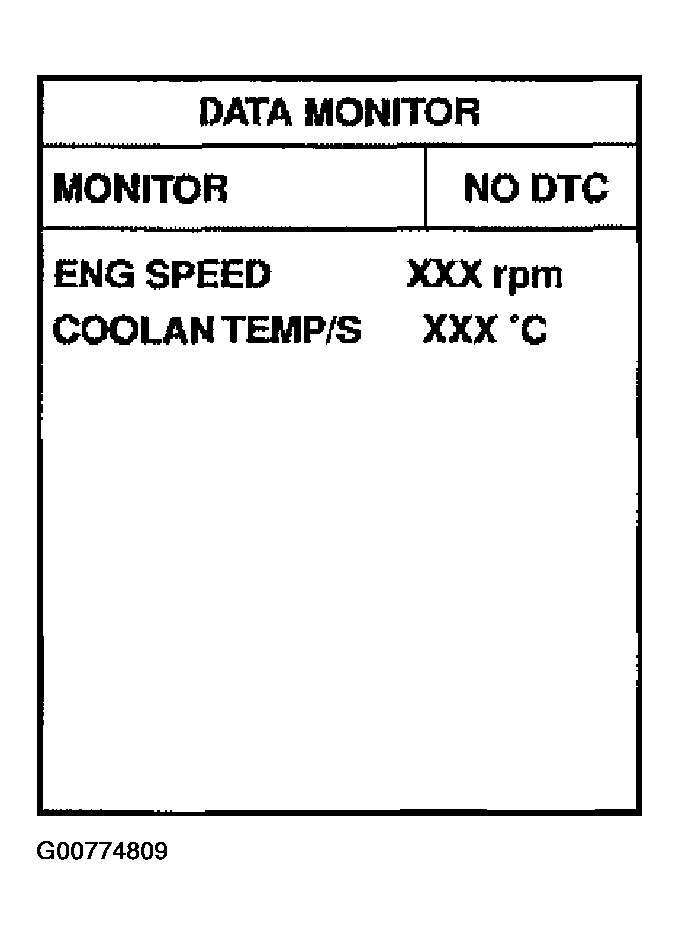

Fig 1: CONSULT-II Display Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

With GST

Follow the procedure "With CONSULT-II" above.
