DTC Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

CAUTION: Always drive vehicle at a safe speed.

TESTING CONDITION:

This test may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.

WITH CONSULT-II

Wait until engine coolant temperature is less than 90°C (194°F)
1. Turn ignition switch ON.
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Check the engine coolant temperature.
4. If the engine coolant temperature is not less than 90°C (194°F), turn ignition switch OFF and cool down engine.
  - Perform the following steps before ENGINE COOLANT TEMPERATURE is above 90°C (194°F).
Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.
Start engine.
Hold vehicle speed at more than 70 km/h (43 MPH) for 100 consecutive seconds.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .

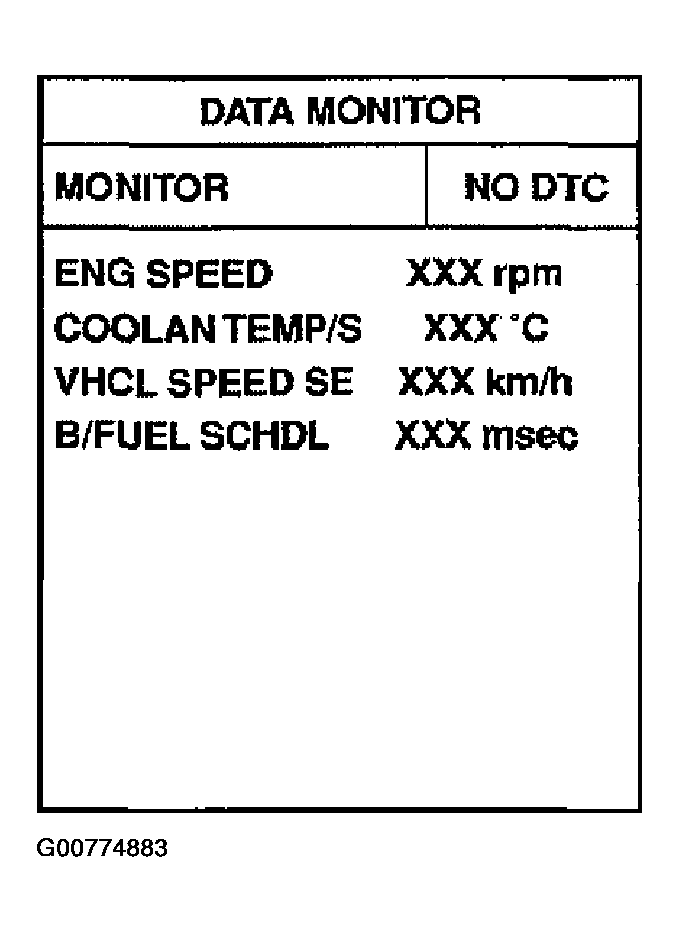

Fig 1: CONSULT-II Display Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

WITH GST

Follow the procedure "WITH CONSULT-II" above.
