Engine Coolant Temperature Sensor

Check resistance as shown in the figure.

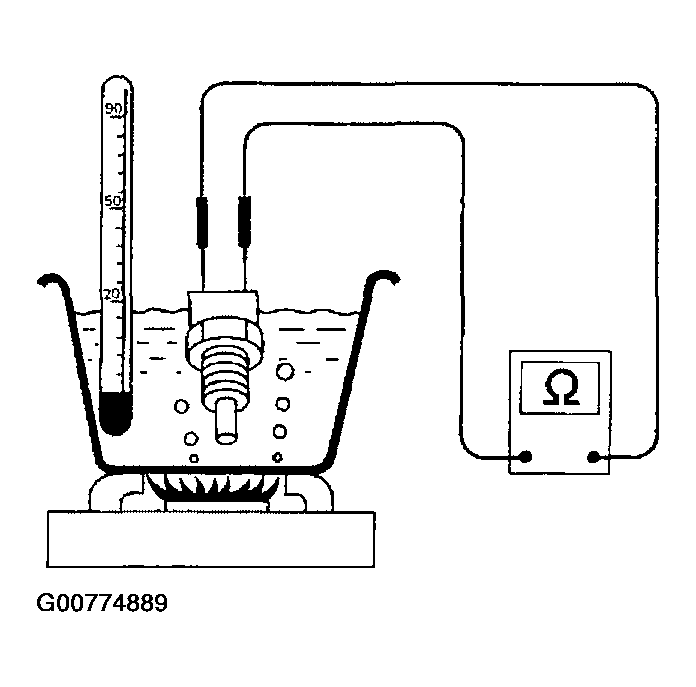

Fig 1: Checking Resistance

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

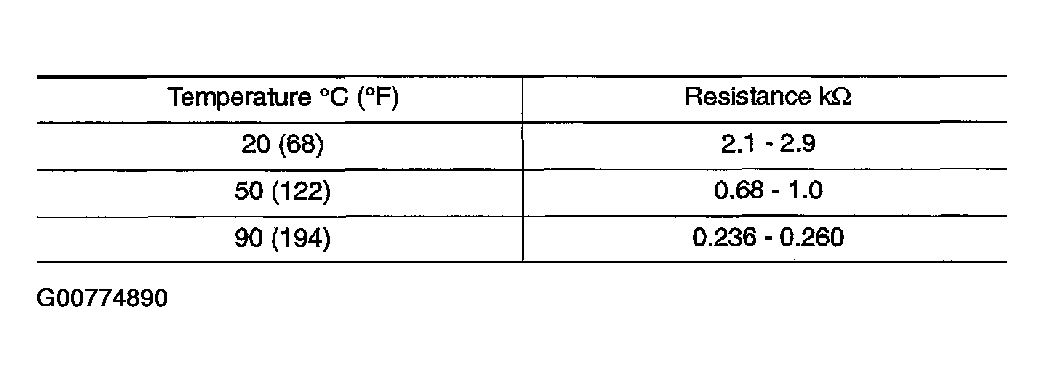

Fig 2: Voltage And Rasistance Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace engine coolant temperature sensor.

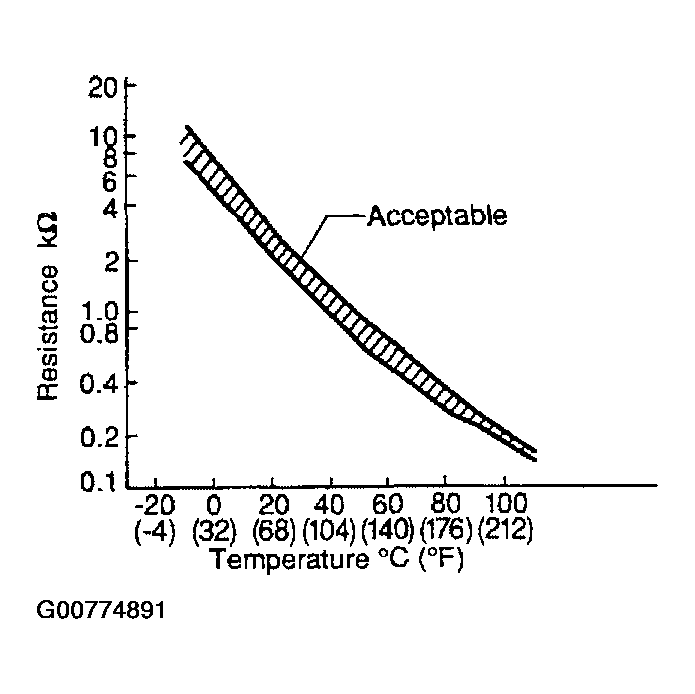

Fig 3: Temperature Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
