Fuel Tank Temperature Sensor

Check resistance by heating with hot water or heat gun as shown in the figure.

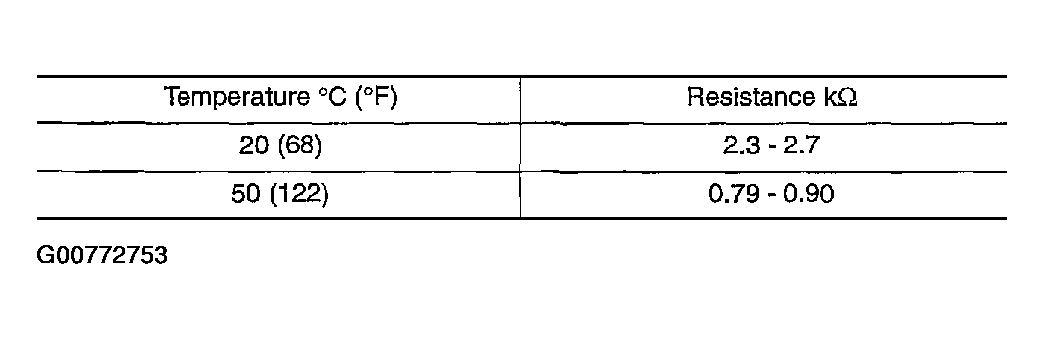

Fig 1: Temperature And Resistance Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

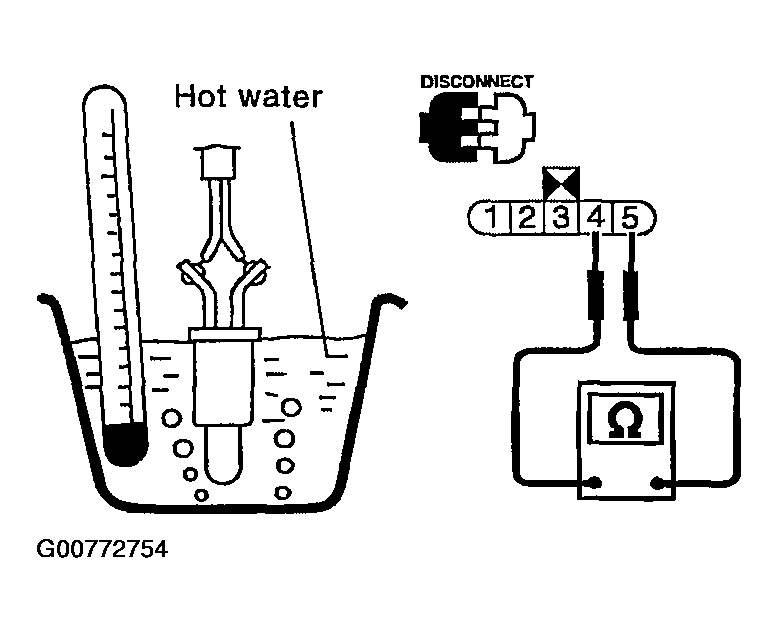

Fig 2: Checking Resistance By Heating With Hot Water Or Heat Gun

Courtesy of NISSAN MOTOR CO., U.S.A.
