DTC Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II

Turn ignition switch ON and wait at least 2 seconds.
Select "DATA MONITOR" mode with CONSULT-II.
Start engine and let it idle for 5 seconds.
If DTC is detected, go to DIAGNOSTIC PROCEDURE .

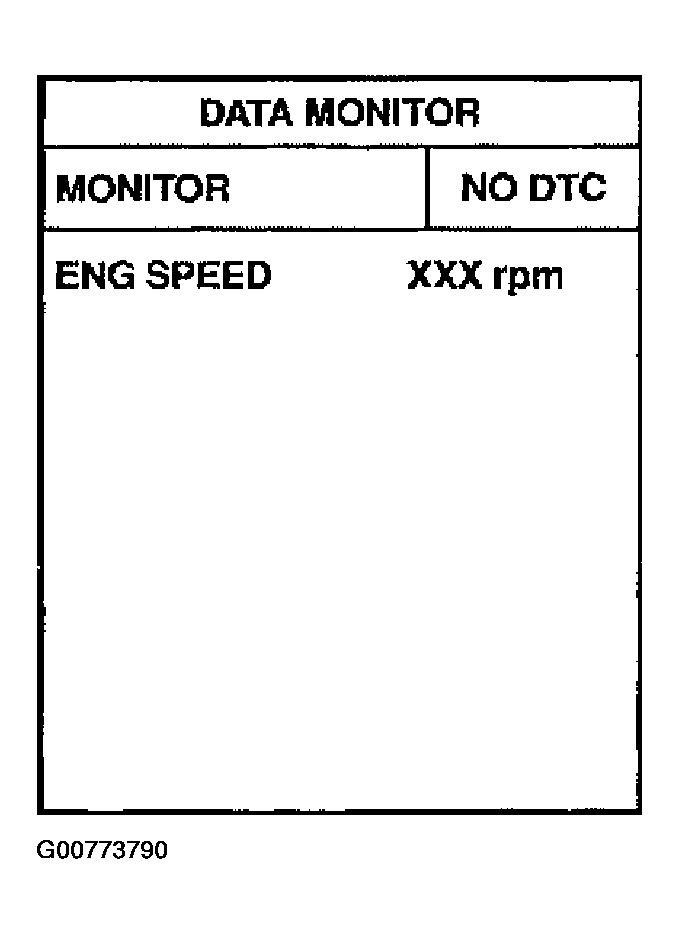

Fig 1: Displaying DATA MONITOR Mode
Courtesy of NISSAN MOTOR CO., U.S.A.

WITH GST

Follow the procedure "WITH CONSULT-II" above.
