Throttle Control Motor

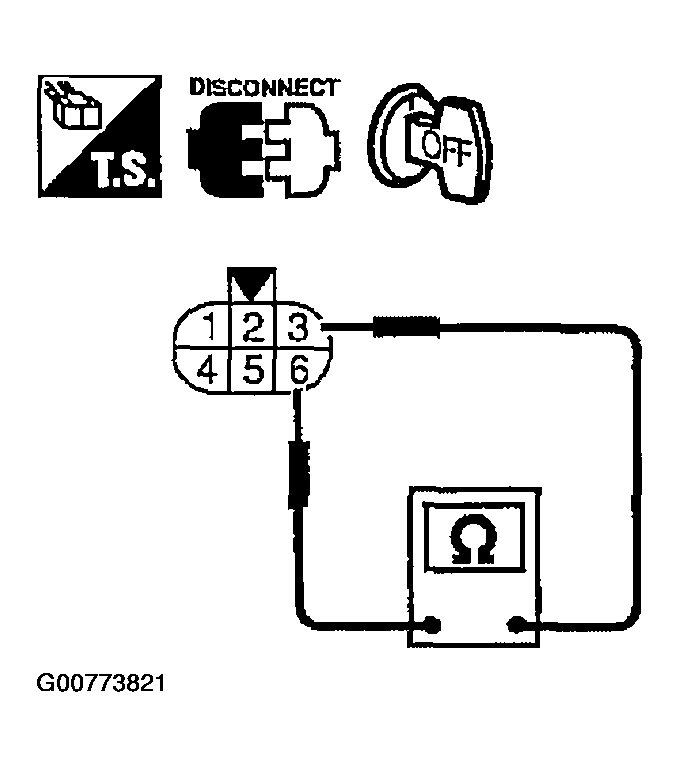

- Disconnect electric throttle control actuator harness connector.
- Check resistance between terminals 3 and 6.
Resistance: Approximately 1 - 15 Ω [at 25 °C (77°F)]
- If NG, replace electric throttle control actuator and go to next step.
- Perform THROTTLE VALVE CLOSED POSITION LEARNING .
- Perform IDLE AIR VOLUME LEARNING ".
