Procedure A

  1. CHECK COOLING FAN POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect cooling fan relay-1.
    3. Turn ignition switch ON.
    4. Check voltage between cooling fan relay-1 terminals 1, 3, 6 and ground with CONSULT-II or tester.
      1. Voltage: Battery voltage

      OK or NG

      1. OK: GO TO  3.
      2. NG: GO TO 2.

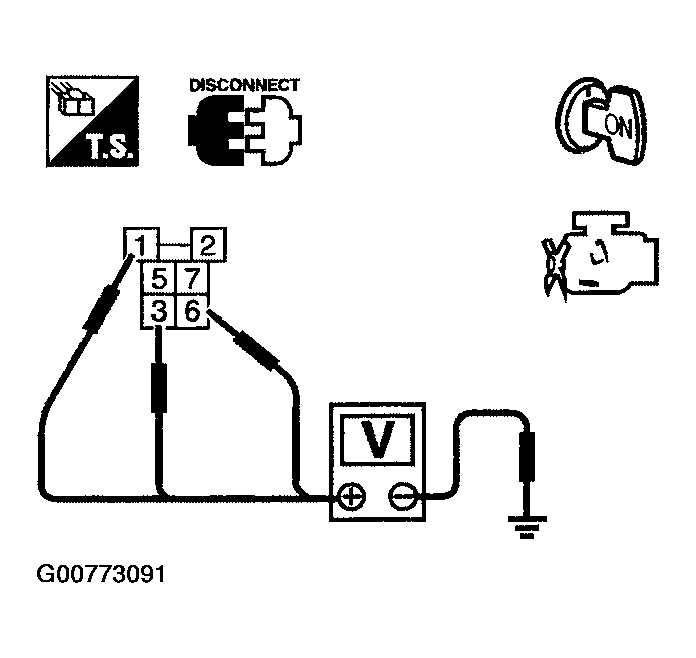

    Fig 1: Checking Voltage Between Cooling Fan Relay-1 Terminals 1, 3, 6 And Ground
    G00773091Courtesy of NISSAN MOTOR CO., U.S.A.
  2. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse and fusible link box connectors E23, E25
    • Fuse block (J/B) connector E103
    • 10A fuse
    • 40A fusible links
    • Harness for open or short between cooling fan relay-1 and fuse
    • Harness for open or short between cooling fan relay-1 and battery
      1. Repair open circuit or short to ground or short to power in harness or connectors.
  3. CHECK COOLING FAN MOTOR CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
    3. Check harness continuity between cooling fan relay-1 terminal 5 and cooling fan motor-1 terminal 1, cooling fan motor-1 terminal 4 and ground.

      Refer to WIRING DIAGRAM .

      1. Continuity should exist.
    4. Also check harness for short to ground and short to power.

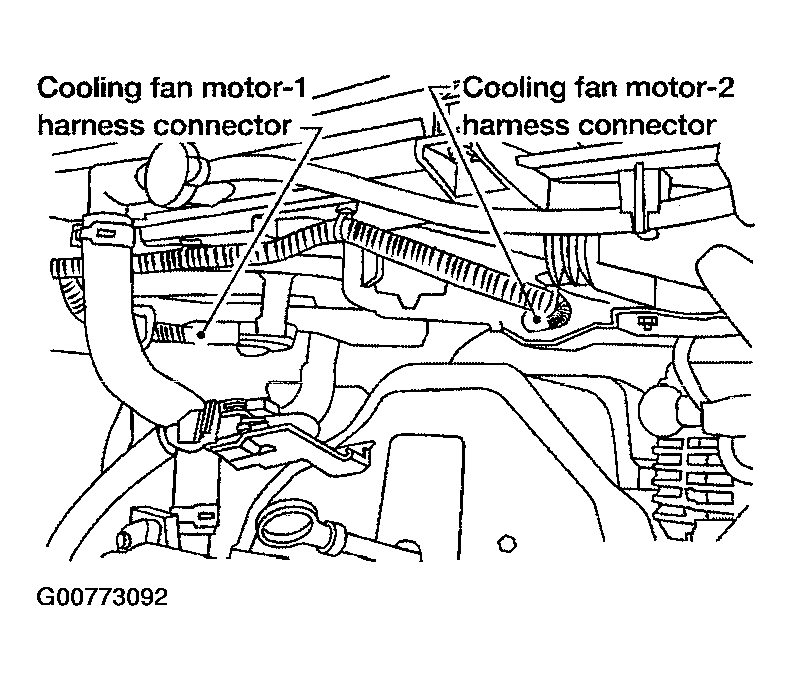

      Fig 2: Disconnecting Cooling Fan Motor-1 And Motor-2 Harness Connector
      G00773092Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Check harness continuity between cooling fan relay-1 terminal 7 and cooling fan motor-2 terminal 2, cooling fan motor-2 terminal 1 and ground.

      Refer to WIRING DIAGRAM .

      1. Continuity should exist.
    6. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK COOLING FAN RELAY-1 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 97 and cooling fan relay-1 terminal 2.

      Refer to WIRING DIAGRAM .

      1. Continuity should exist.
    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  6.
    2. NG: GO TO 5.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E9, F47
    • Harness for open or short between cooling fan relay-1 and ECM
      1. Repair open circuit or short to ground or short to power in harness or connectors.
  6. CHECK COOLING FAN RELAY-1

    Refer to COMPONENT INSPECTION .

    OK or NG

    1. OK: GO TO 7.
    2. NG: Replace cooling fan relay.
  7. CHECK COOLING FAN MOTORS

    Refer to COMPONENT INSPECTION .

    OK or NG

    1. OK: GO TO 8.
    2. NG: Replace cooling fan motors.
  8. CHECK INTERMITTENT INCIDENT

    Perform TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    1. INSPECTION END
