ASCD Steering Switch

  1. Disconnect ASCD steering switch.
  2. Check continuity between ASCD steering switch terminals 1 and 4 with pushing each switch.

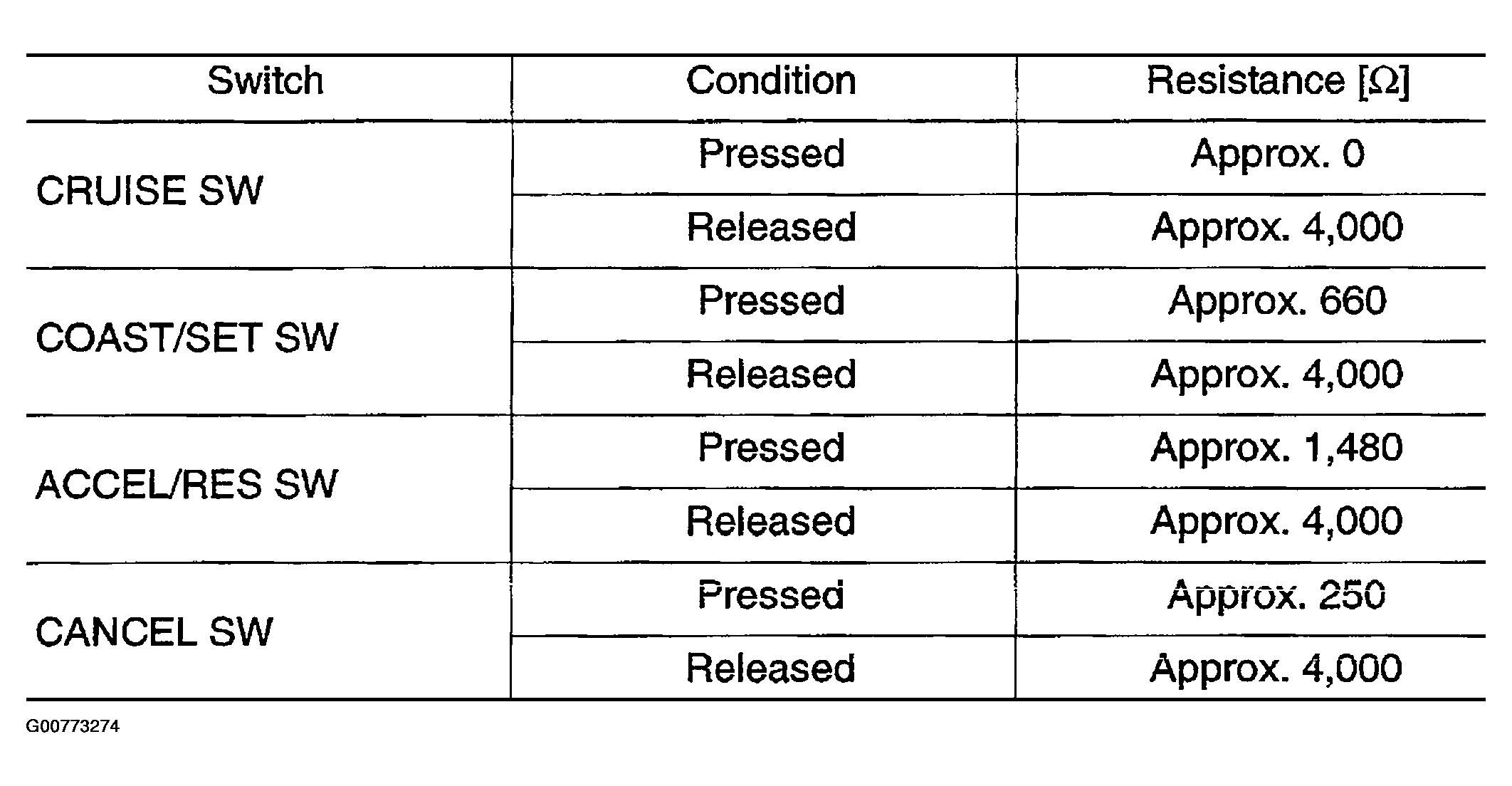

    Fig 1: Switch Resistance Conditions Chart
    G00773274Courtesy of NISSAN MOTOR CO., U.S.A.

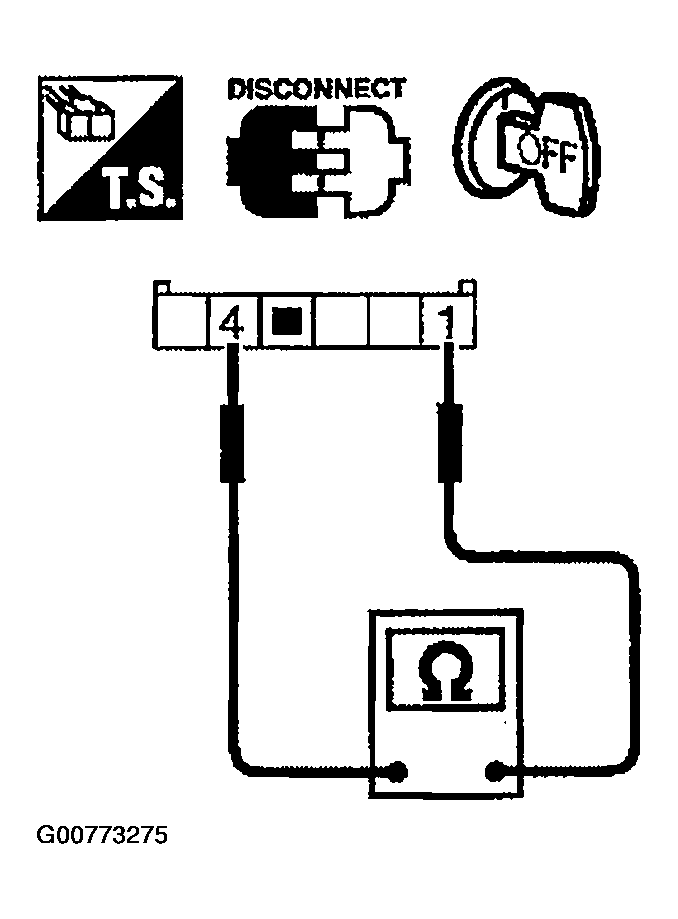

    Fig 2: Checking Continuity Between ASCD Steering Switch Terminals 1 And 4
    G00773275Courtesy of NISSAN MOTOR CO., U.S.A.
