Diagnostic Procedure

  1. CHECK ASCD STEERING SWITCH CIRCUIT

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select "MAIN SW", "RESUME/ACC SW", "SET SW" and "CANCEL SW" in "DATA MONITOR" mode with CONSULT-II.
    3. Check each item indication under the following conditions.

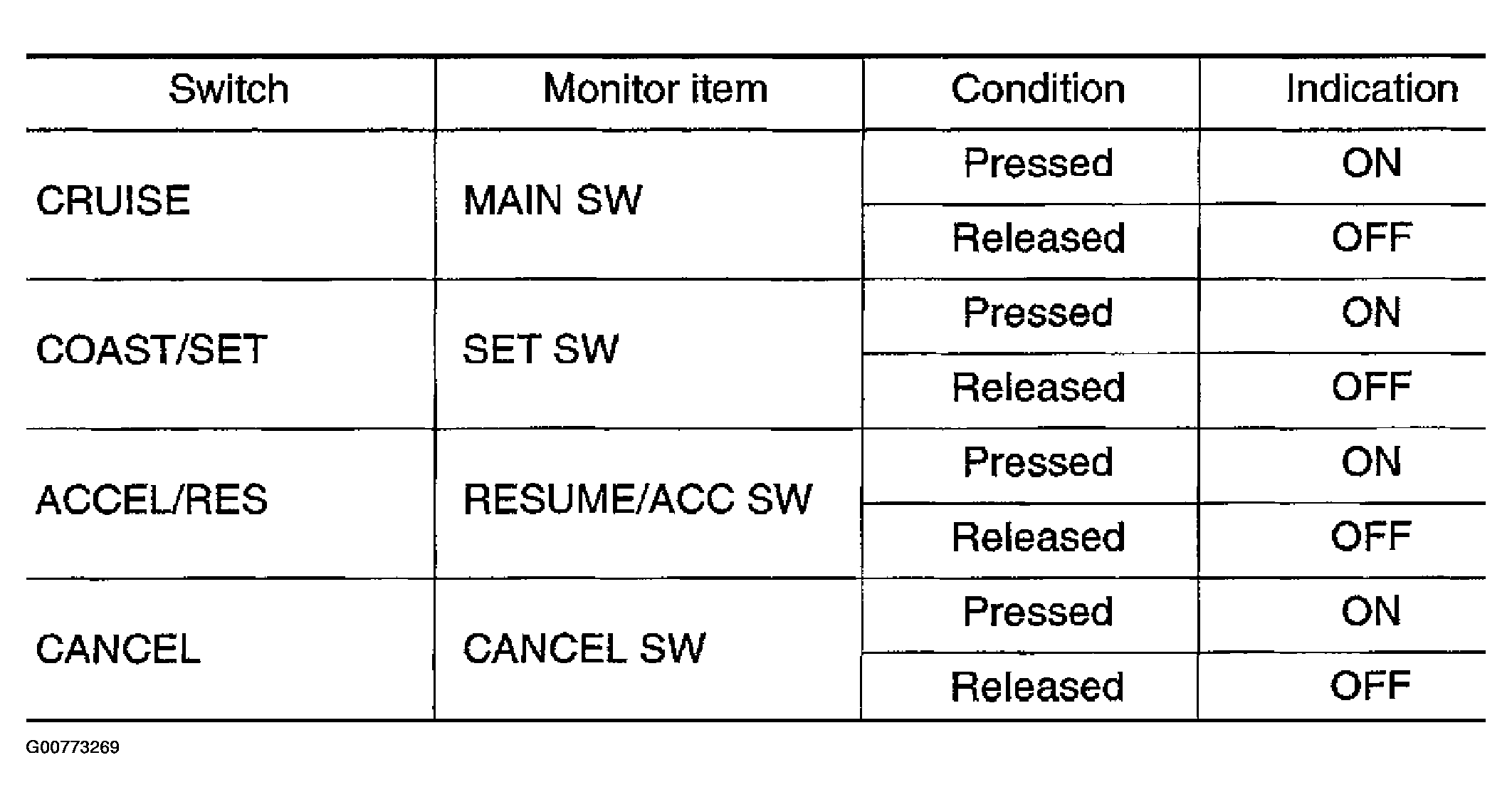

      Fig 1: Switch Indication Conditions Chart
      G00773269Courtesy of NISSAN MOTOR CO., U.S.A.

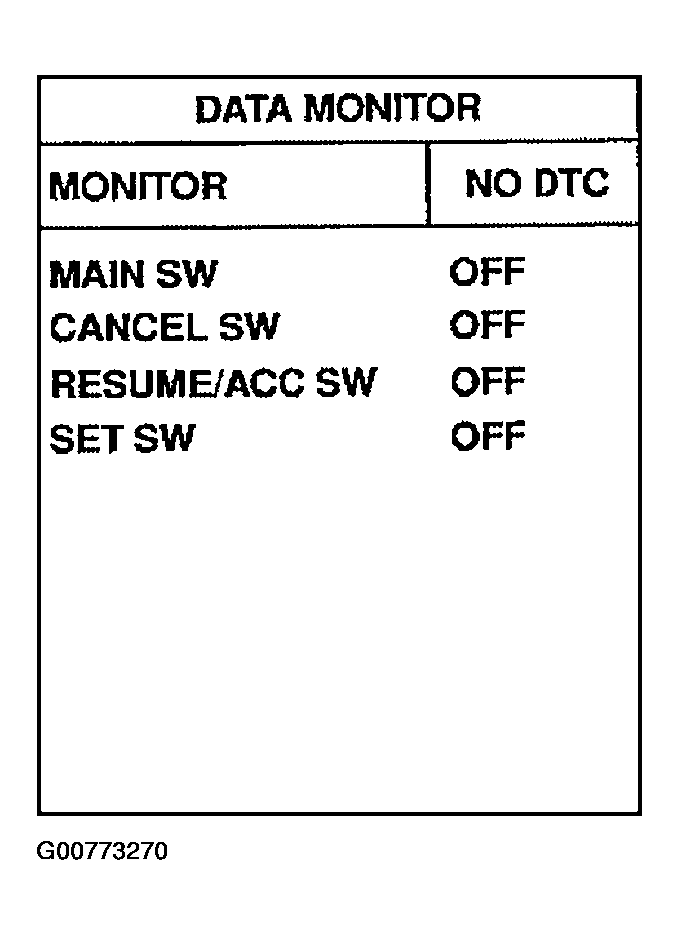

      Fig 2: Displaying DATA MONITOR Mode
      G00773270Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 99 and ground with pressing each button.

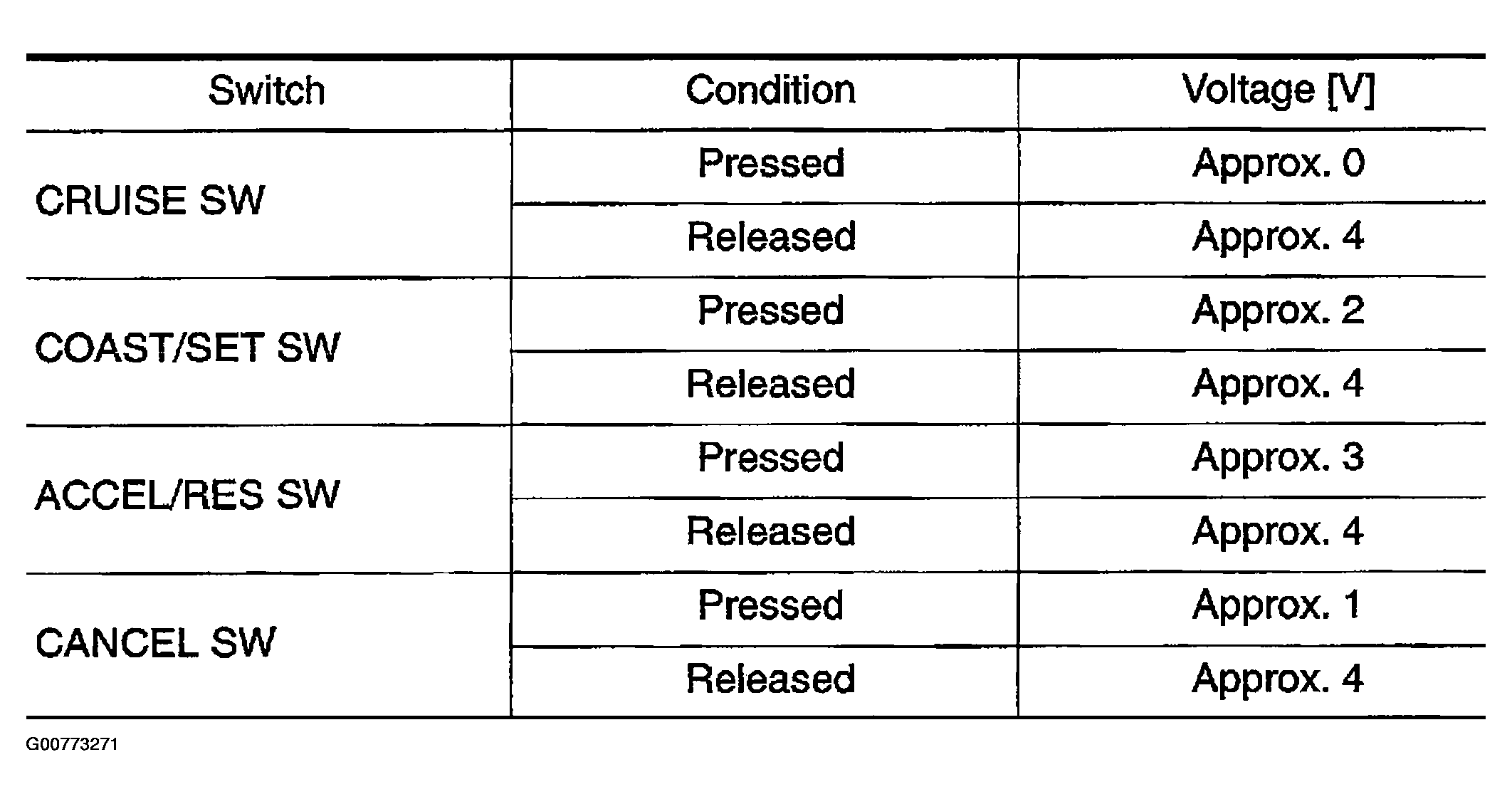

      Fig 3: Switch Voltage Conditions Chart
      G00773271Courtesy of NISSAN MOTOR CO., U.S.A.

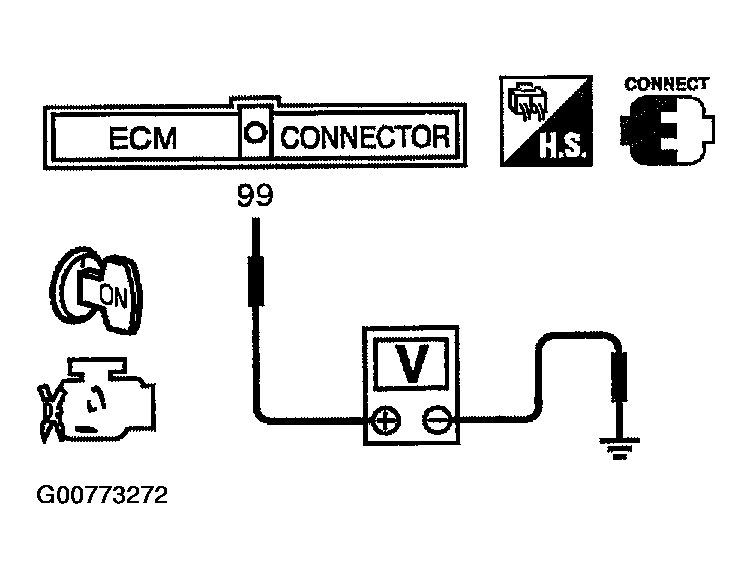

      Fig 4: Checking Voltage Between ECM Terminal 99 And Ground
      G00773272Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO  7
    2. NG : GO TO 2.
  2. CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD steering switch harness connector.
    3. Disconnect ECM harness connector.
    4. Disconnect TCM harness connector.
    5. Check harness continuity between ASCD steering switch terminal 1 and ECM terminal 67, TCM terminal 42. Refer to WIRING DIAGRAM .
      1. Continuity should exist.
    6. Also check harness for short to power.

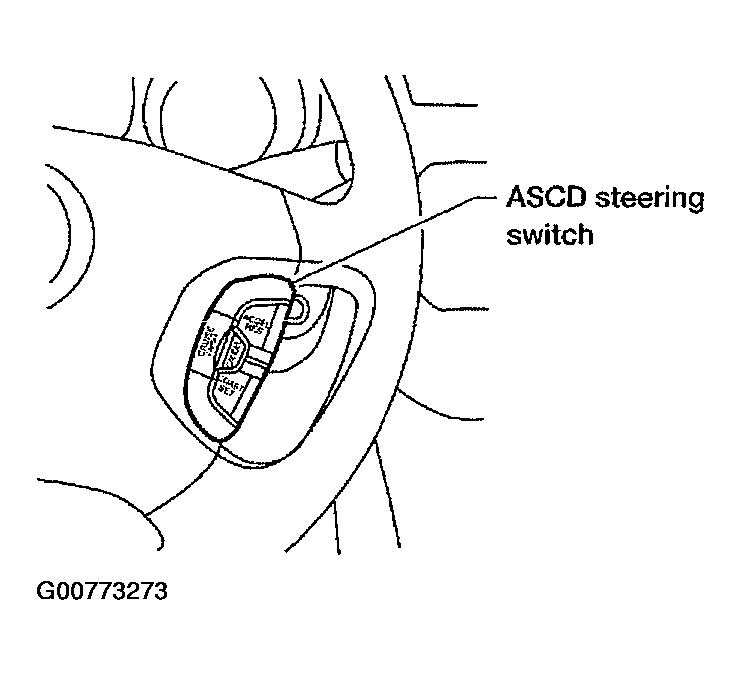

      Fig 5: Identifying ASCD Steering Switch
      G00773273Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO  4
    2. NG : GO TO 3.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M401, M102
    • Harness connectors M59, F27
    • Spiral cable
    • Harness for open and short between ECM and ASCD steering switch
    • Harness for open and short between TCM and ASCD steering switch
      1. Repair open circuit or short to power in harness or connectors.
  4. CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 99 and ASCD steering switch terminal 4.

      Refer to WIRING DIAGRAM .

      1. Continuity should exist.
    2. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO  6
    2. NG : GO TO 5.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M401, M102
    • Harness connectors M59, F27
    • Spiral cable
    • Harness for open and short between ECM and ASCD steering switch
      1. : Repair open circuit or short to ground or short to ground or short to power in harness or connectors.
  6. CHECK ASCD STEERING SWITCH

    Refer to COMPONENT INSPECTION .

    OK or NG

    1. OK : GO TO 7.
    2. NG : Replace ASCD steering switch.
  7. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    1. :INSPECTION END
