Overall Function Check

Use this procedure to check the overall function of the park/neutral position switch circuit. During this check, a 1st trip DTC might not be confirmed.

WITHOUT CONSULT-II

• Turn ignition switch ON.
• Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.

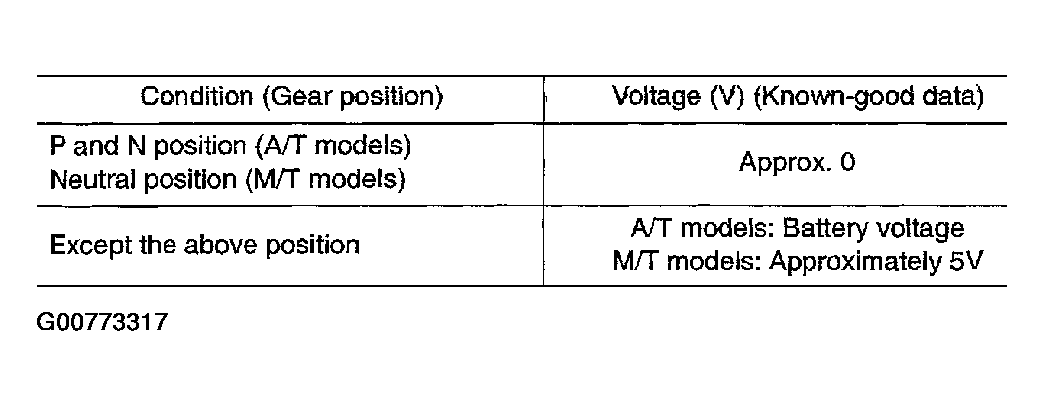

  Fig 1: ECM Terminal 102 (PNP Switch Signal) And Ground Voltage Conditions Chart

  Courtesy of NISSAN MOTOR CO., U.S.A.

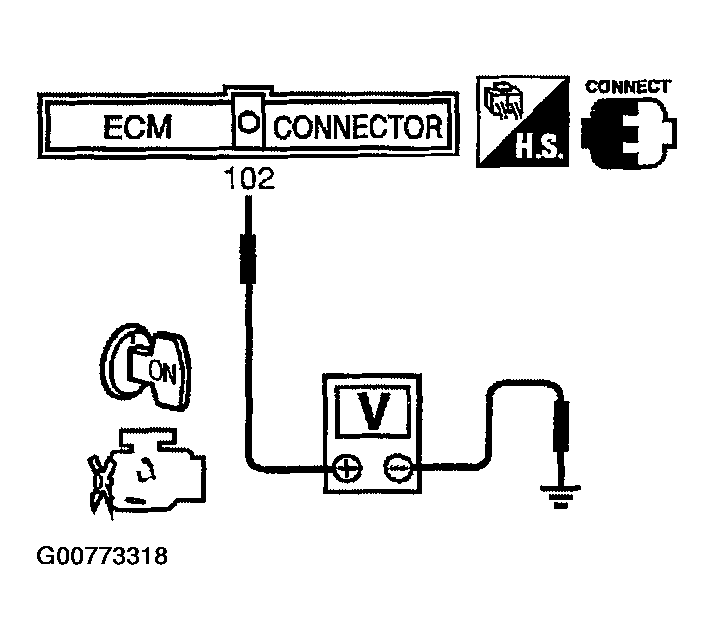

  Fig 2: Checking Voltage Between ECM Terminal 102 (PNP Switch Signal) And Ground

  Courtesy of NISSAN MOTOR CO., U.S.A.
• If NG, go to DIAGNOSTIC PROCEDURE .
