Test Item

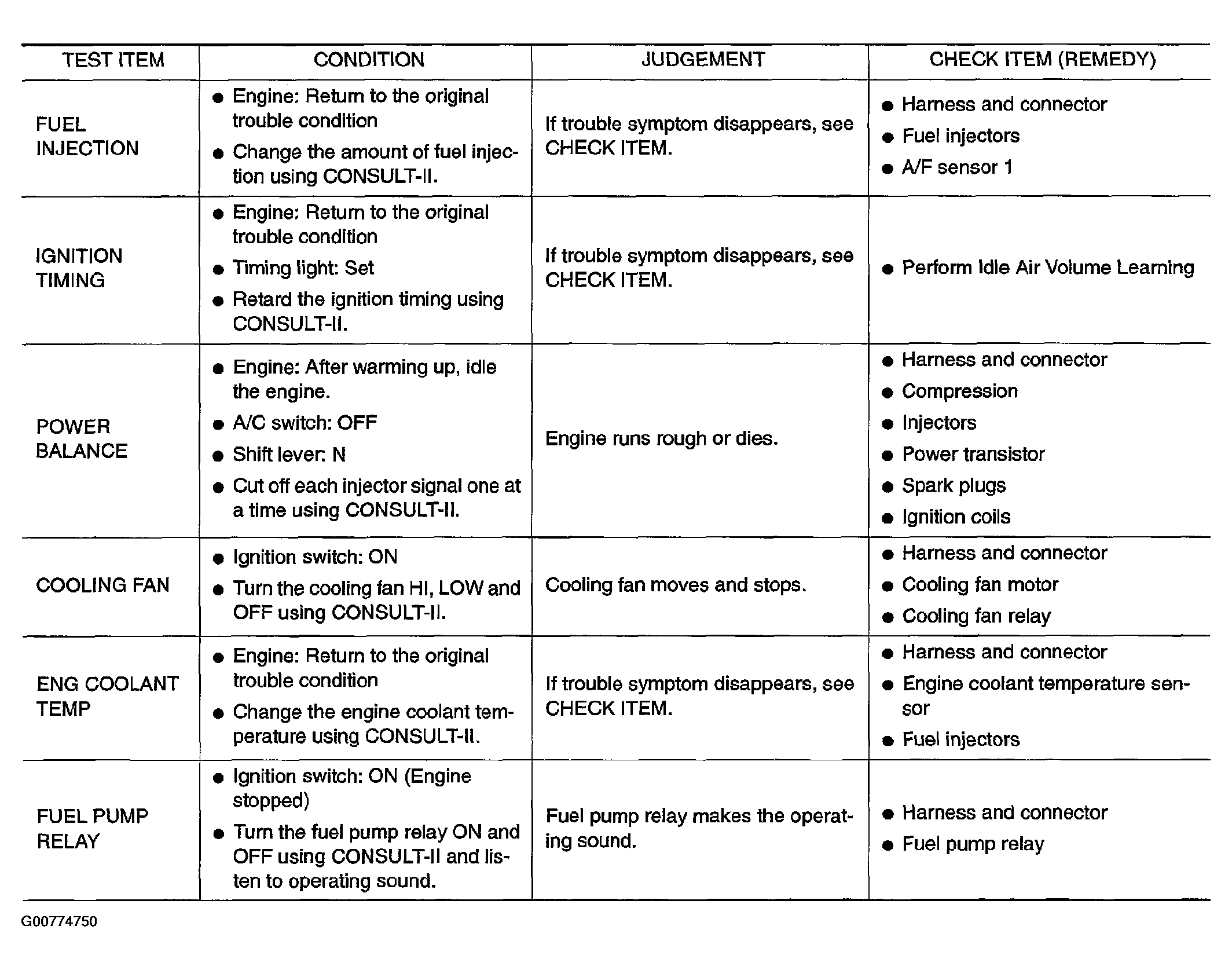

Fig 1: Active Test Mode Specification Chart (1 Of 2)
G00774750Courtesy of NISSAN MOTOR CO., U.S.A.

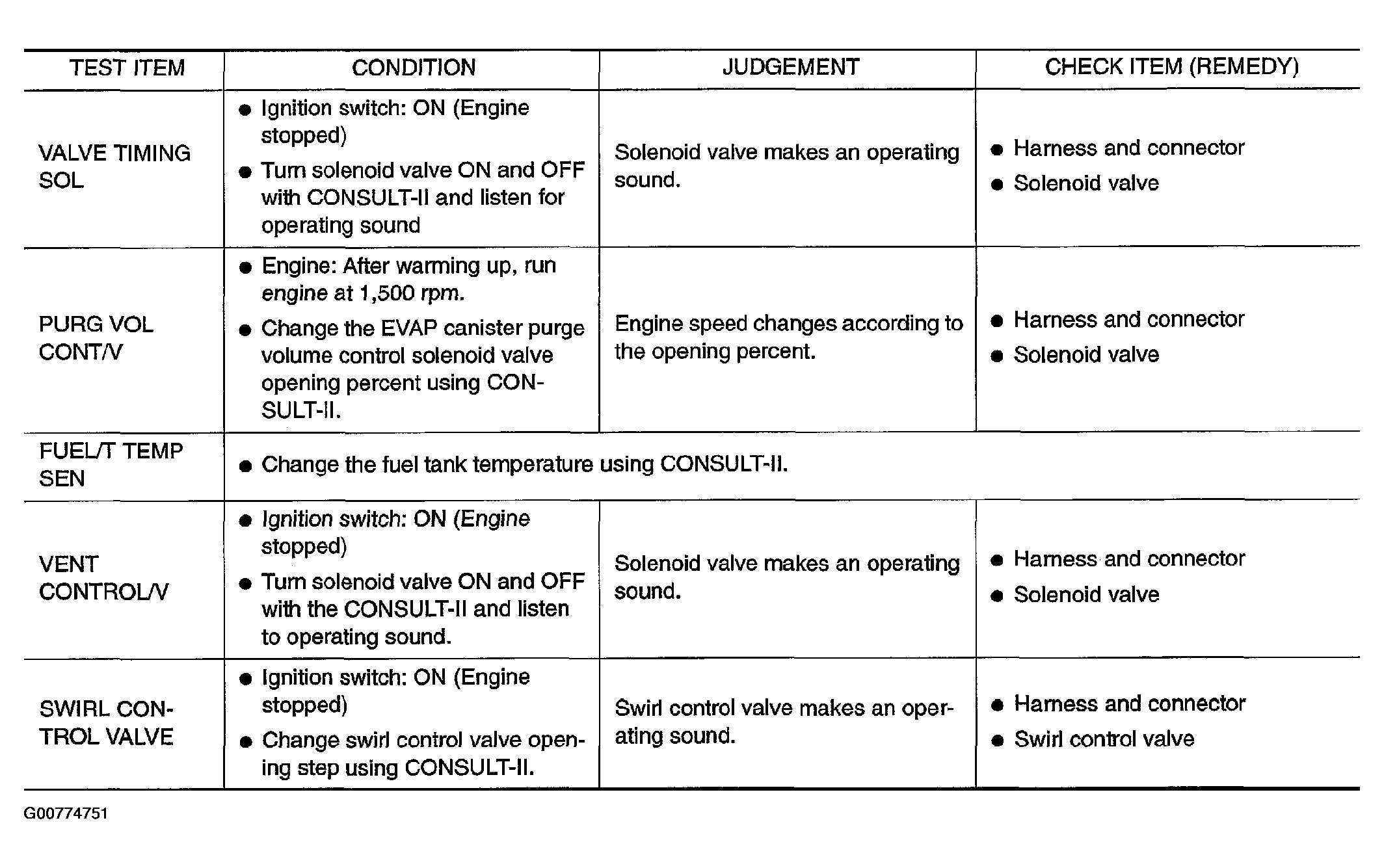

Fig 2: Active Test Mode Specification Chart (2 Of 2)
G00774751Courtesy of NISSAN MOTOR CO., U.S.A.
