Consult-II Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and "CONSULT-II CONVERTER" to data link connector, which is located under LH dash panel near the fuse box cover.

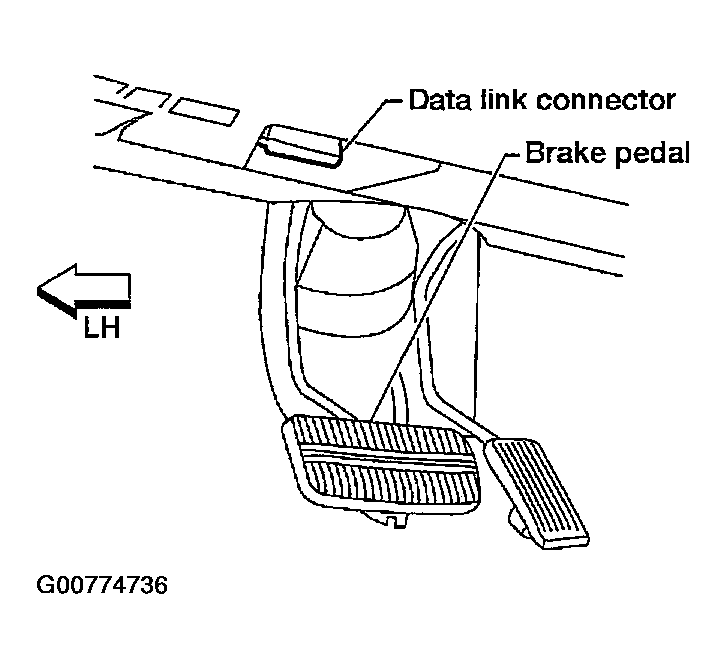

Fig 1: Connecting CONSULT-II To Data Link Connector Under LH Dash Panel Near Fuse Box Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

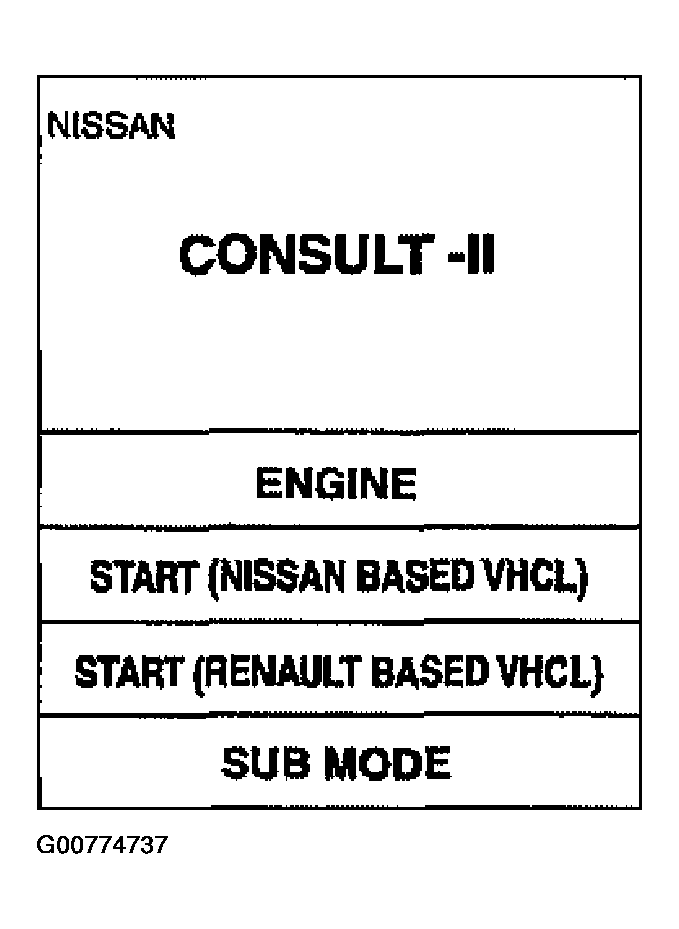

Fig 2: CONSULT-II Display Start
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ENGINE".
If "ENGINE" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

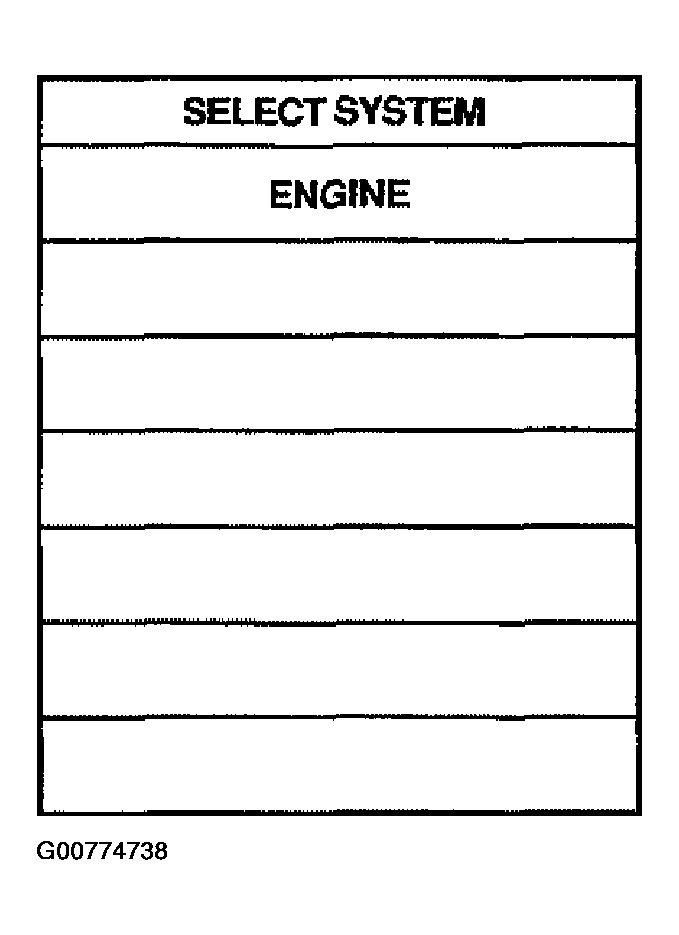

Fig 3: CONSULT-II Display Engine
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.

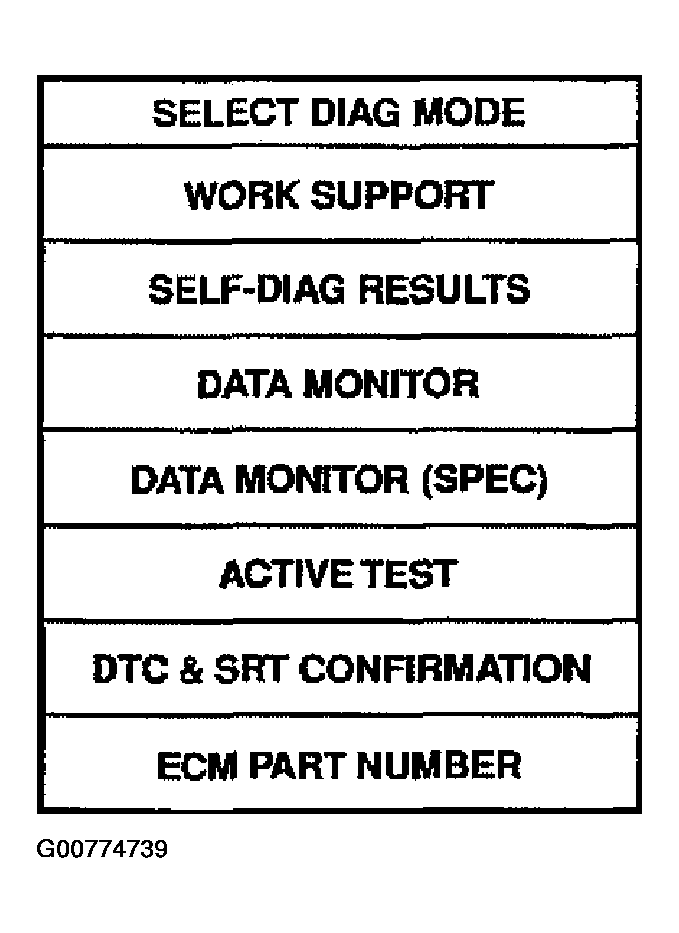

Fig 4: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.

For further information, see the CONSULT-II Operation Manual.
