Component Description

The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

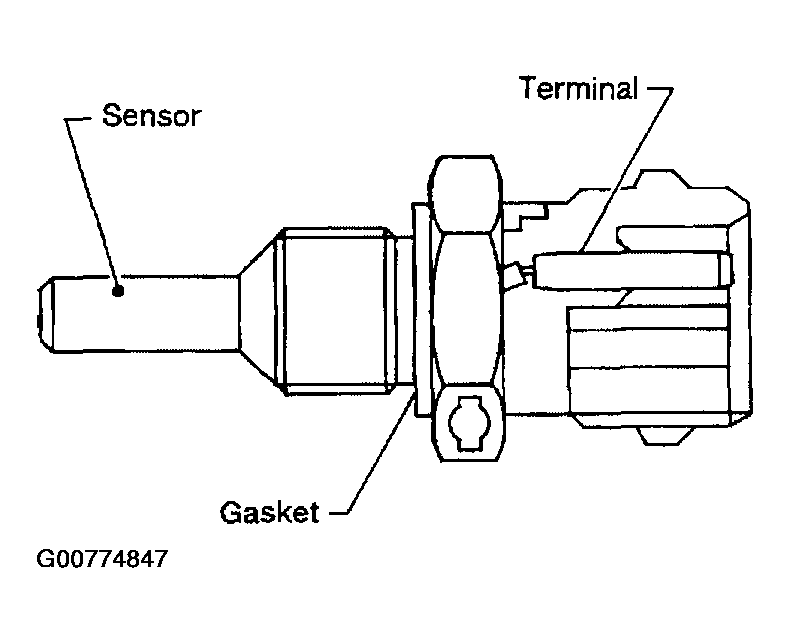

Fig 1: Identifying ECT Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

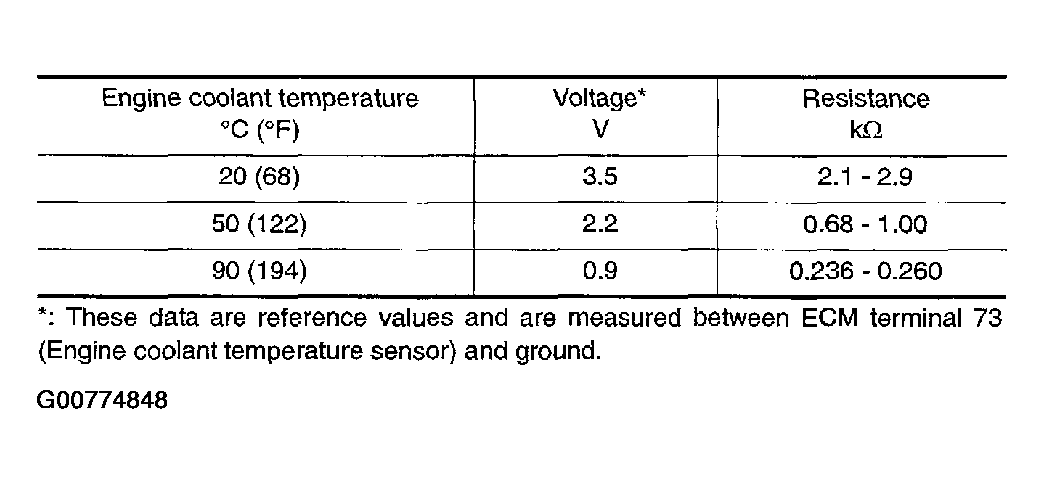

Fig 2: Voltage And Resistance Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Temperature Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the ECM's transistor. Use ground other than ECM, such as body ground.
