DTC P0117, P0118: ECT Sensor: Wiring Diagram

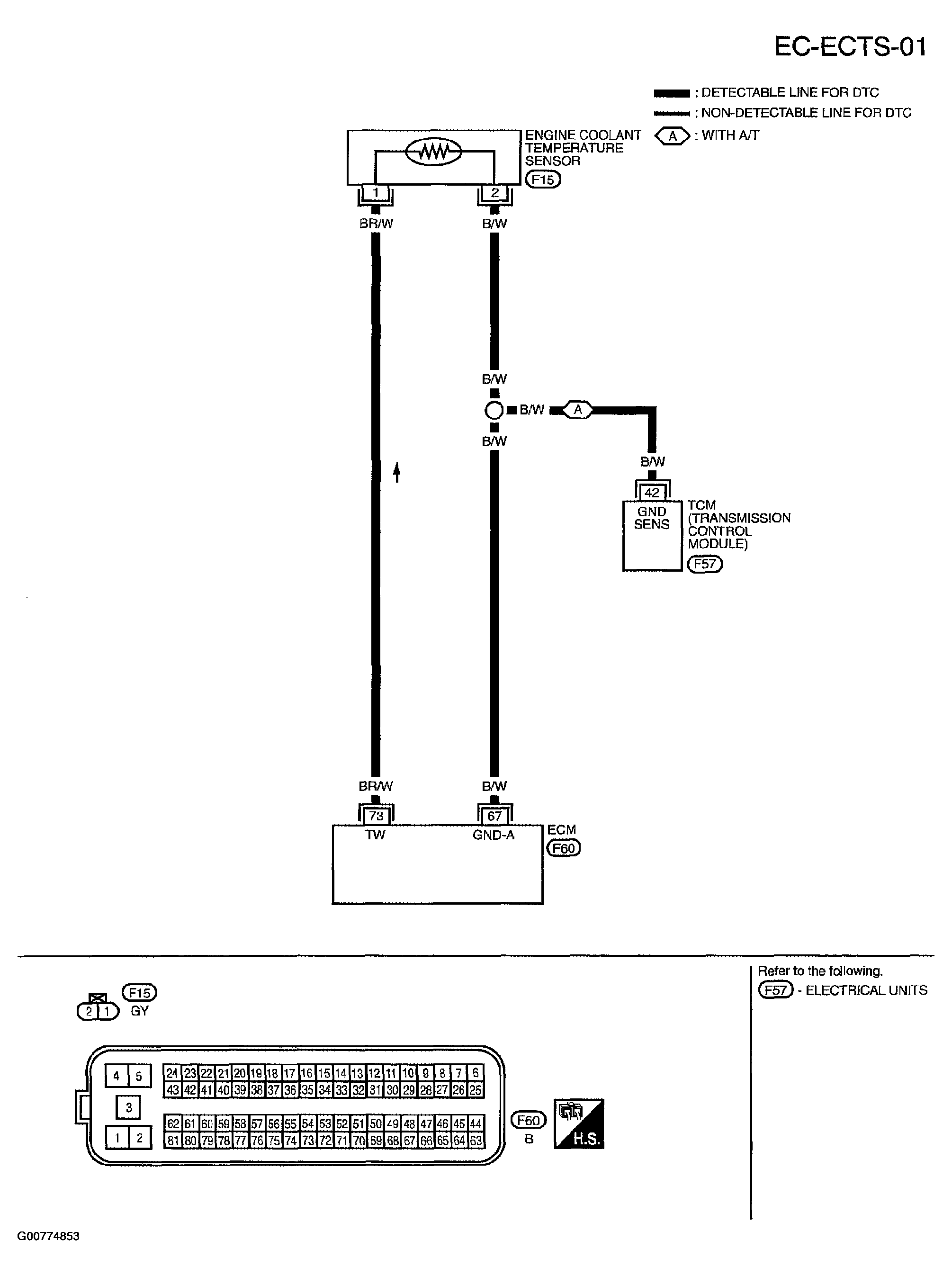

Fig 1: Wiring Diagram (EC-ECTS-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
