DTC Configuration Procedure

CAUTION: Always drive vehicle at a safe speed.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II

Turn ignition switch ON.
Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT-II. The check the "P/N POSI SW" signal under the following conditions.

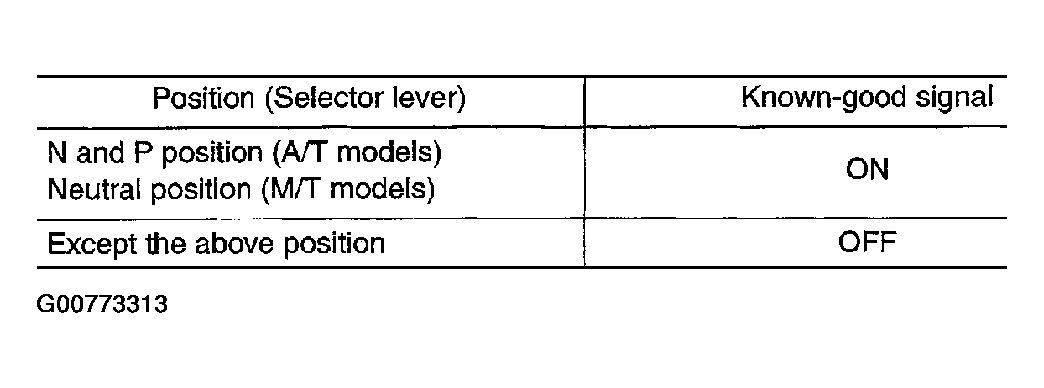

Fig 1: Park And Neutral Position Switch Signal Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

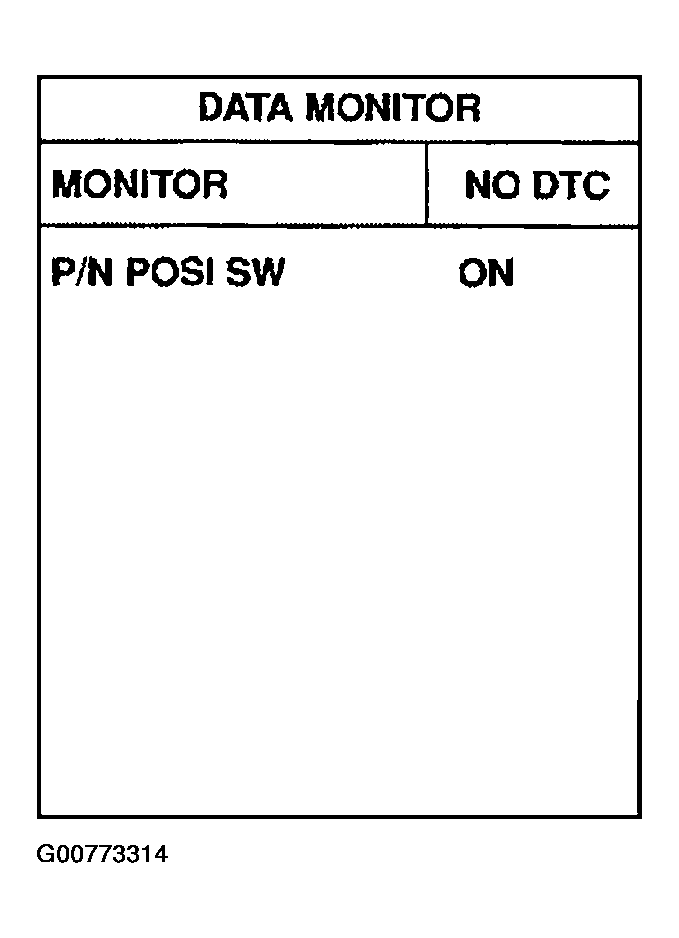

Fig 2: Displaying DATA MONITOR Mode
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, go to DIAGNOSTIC PROCEDURE .

If OK, go to following step.
Select "DATA MONITOR" mode with CONSULT-II.
Start engine and warm it up to normal operating temperature.
Maintain the following conditions for at least 50 consecutive seconds.

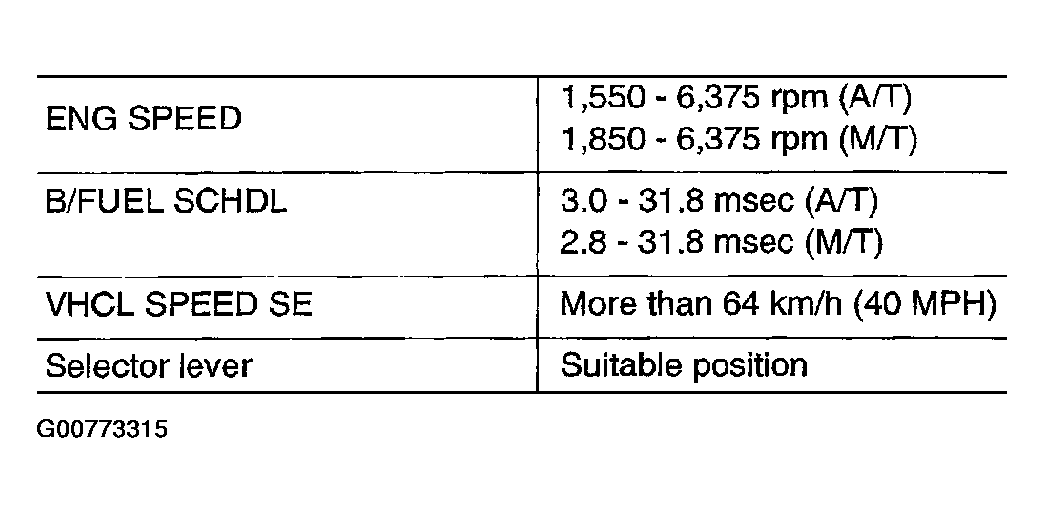

Fig 3: Testing Conditions Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

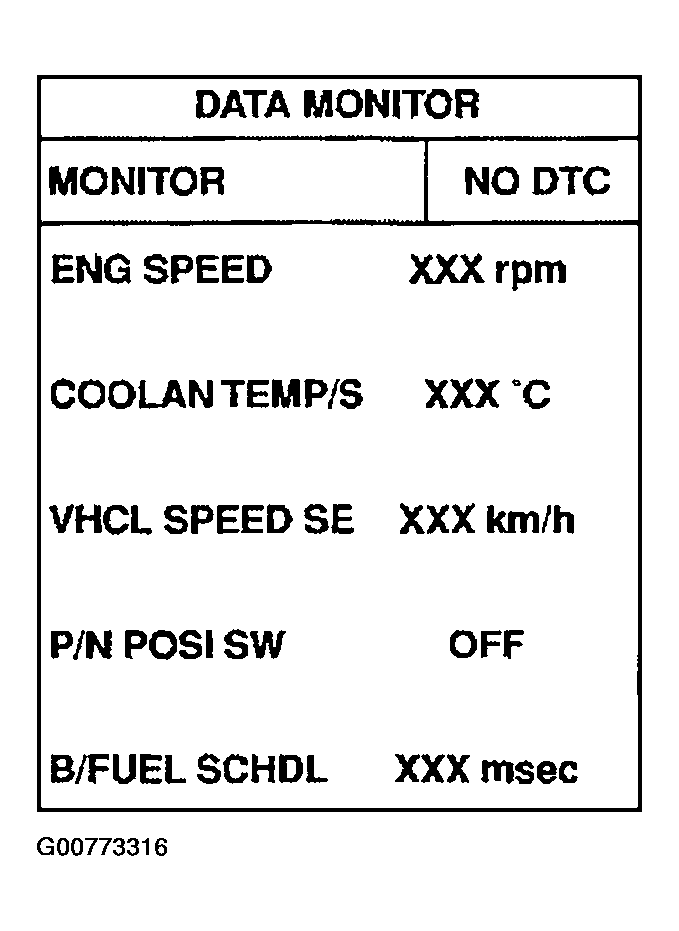

Fig 4: Displaying DATA MONITOR Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
