Generic Scan Tool (GST): Function

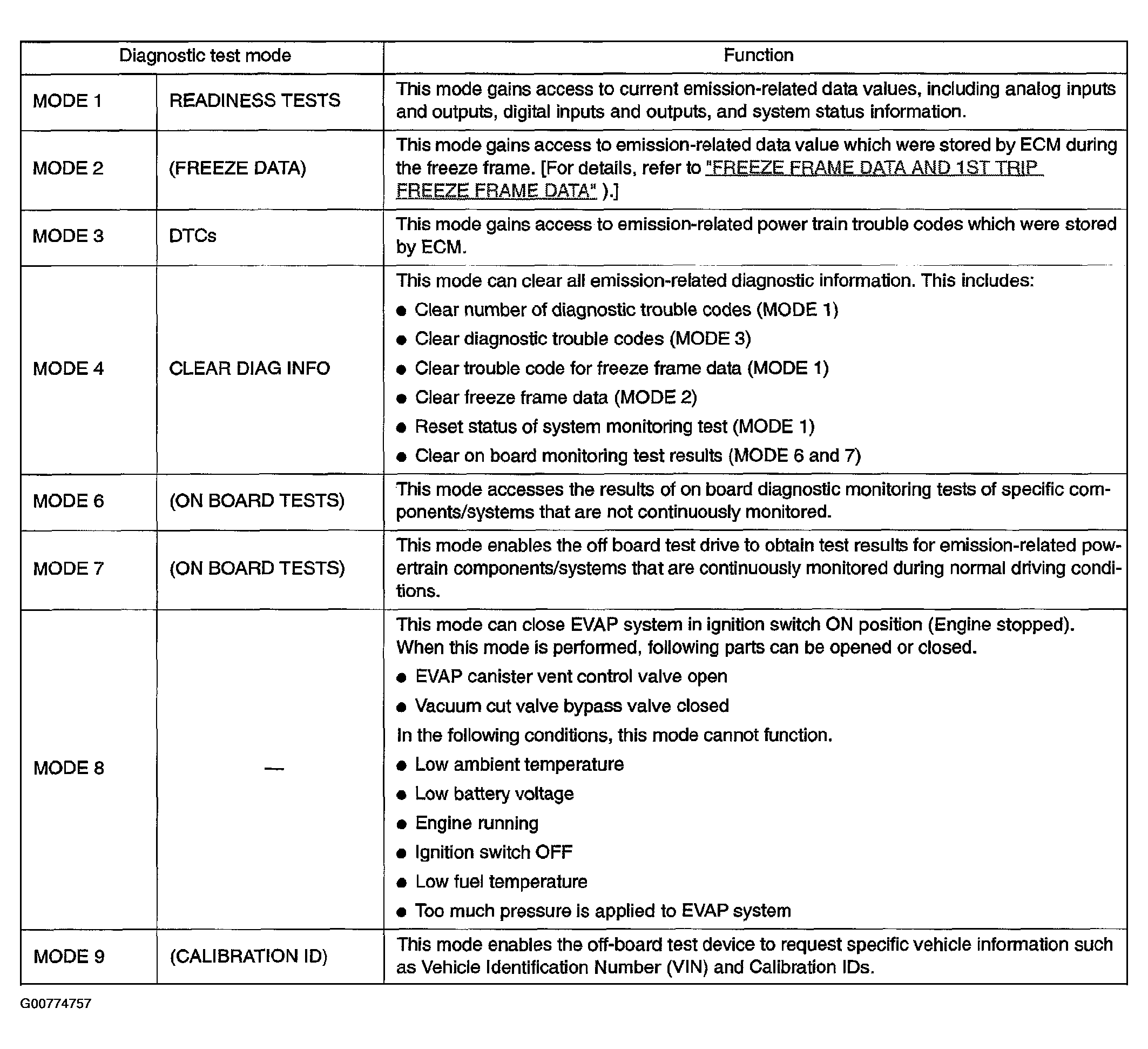

Fig 1: Function Chart

G00774757

Courtesy of NISSAN MOTOR CO., U.S.A.
