Horn Reminder Check

CHECK HORN
Check if horn sounds with horn switch.

Does horn operate?
1. Yes: GO TO 2.
2. No: Check horn circuit.
CHECK HORN REMINDER OPERATION
With CONSULT-II
1. Select "ACTIVE TEST" in "MULTI REMOTE ENT" with CONSULT-II.
2. Select "MULTI REM HRN" and touch "ON".

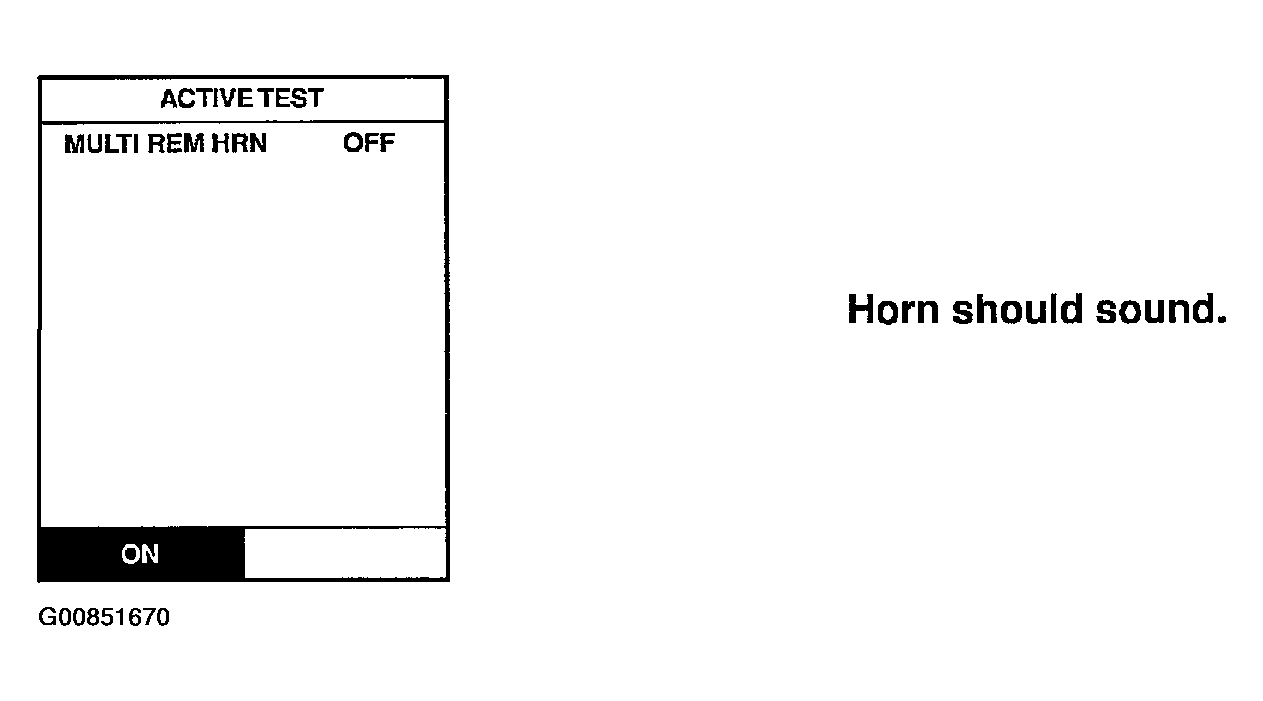

Fig 1: Identifying Horn Reminder Operation
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If CONSULT-II is not available, skip this procedure and GO TO the next step.

OK or NG
1. OK: Horn reminder operation is OK.
2. NG: GO TO 3.
CHECK HORN REMINDER OPERATION
1. Disconnect smart entrance control unit harness connector.
2. Apply ground to smart entrance control unit harness connector terminal 19.

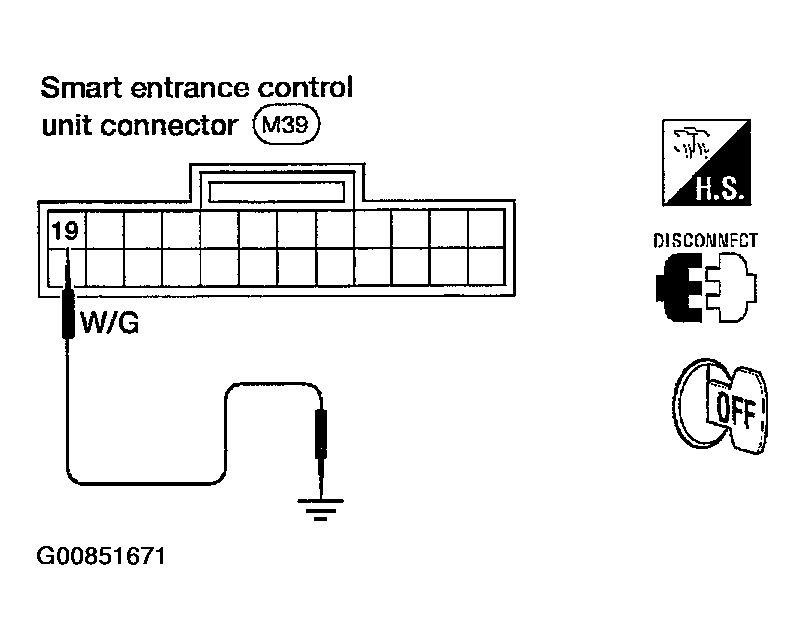

  Fig 2: Disconnecting Smart Entrance Control Unit Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "Figure ".

Does horn sound?
1. Yes: Replace smart entrance control unit.
2. No: Check harness for open or short between smart entrance control unit and horn relay.
