With CONSULT-II

  1. Start engine (TCS switch OFF).
  2. Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.

    If NG, go to "DIAGNOSTIC PROCEDURE ".

    If OK, go to following step.

  3. Select "DATA MONITOR" mode with CONSULT-II.
  4. Warm engine up to normal operating temperature.
  5. Maintain the following conditions for at least 60 consecutive seconds.

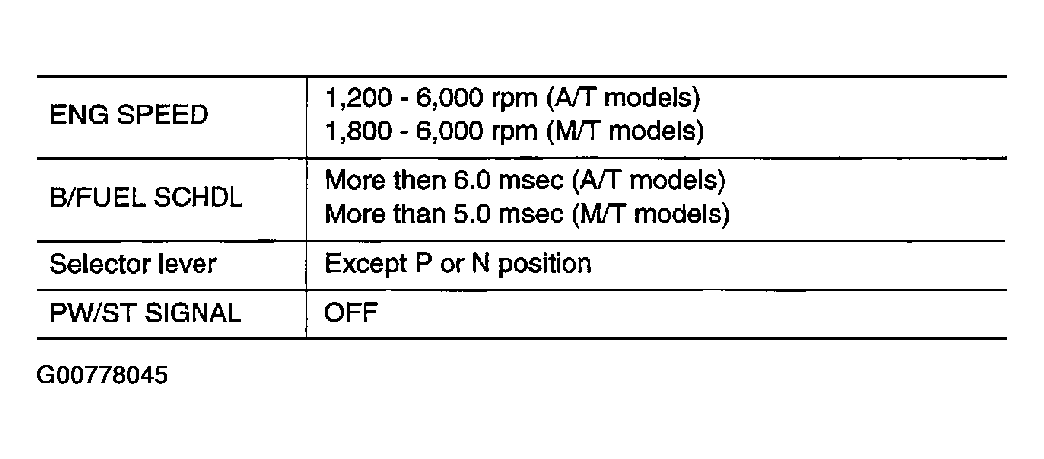

    Fig 1: Engine Speed Specification
    G00778045Courtesy of NISSAN MOTOR CO., U.S.A.

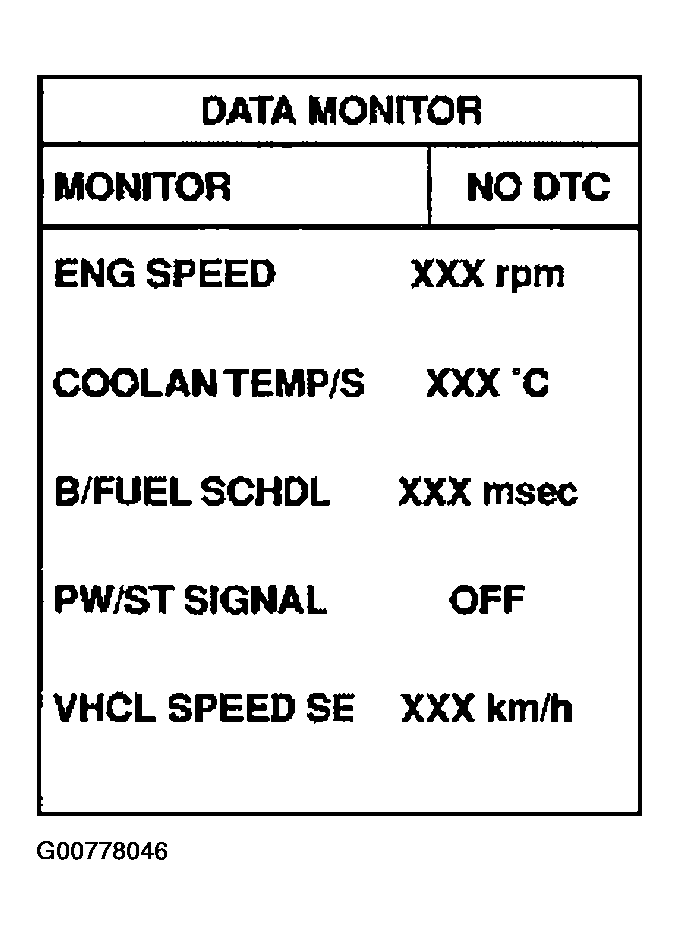

    Fig 2: Selecting Data Monitor Mode With Consult-II
    G00778046Courtesy of NISSAN MOTOR CO., U.S.A.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
