With Consult-II

  1. Start engine.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Drive the vehicle at more than 30 km/h (19 MPH).
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

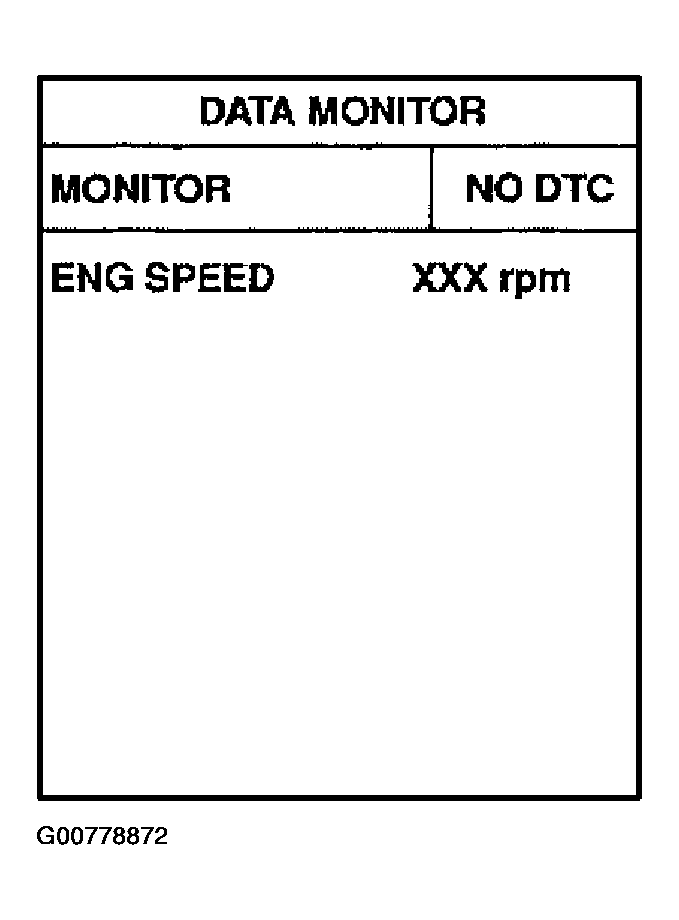

    5. Fig 1: Displaying Data Monitor Mode With Consult-II
    G00778872Courtesy of NISSAN MOTOR CO., U.S.A.
