Key Switch (Insert) Check

CHECK KEY SWITCH INPUT SIGNAL
With CONSULT-II

Check key switch ("KEY ON SW") in "DATA MONITOR" mode with CONSULT-II.

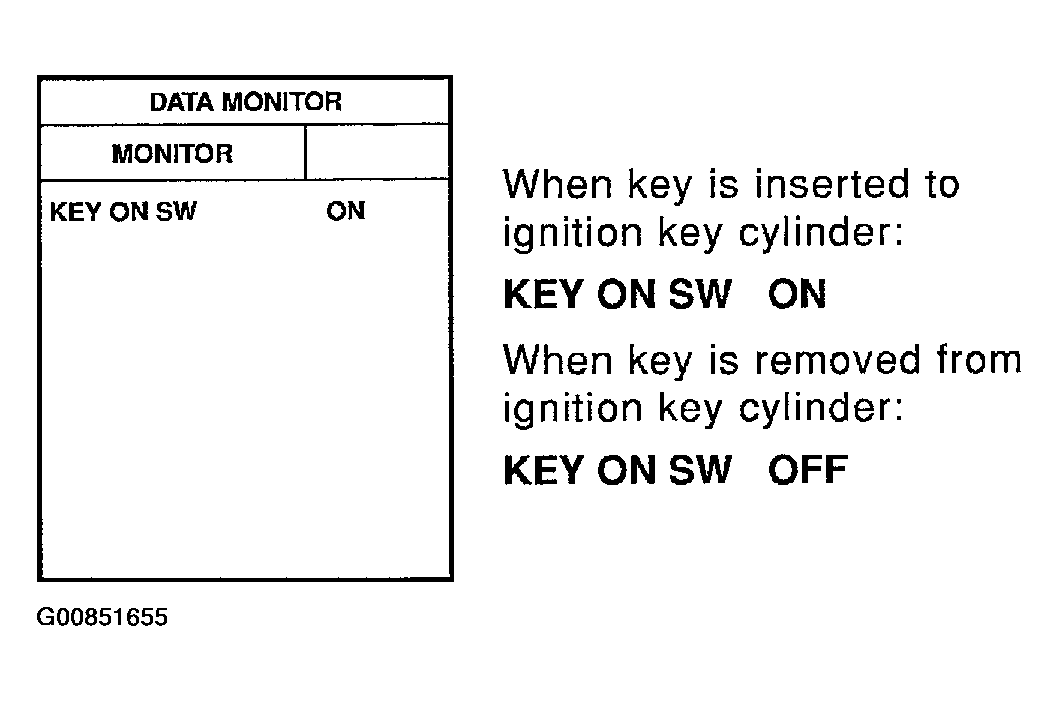

Fig 1: Identifying Key Switch Input Signal
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between control unit terminal 32 and ground.

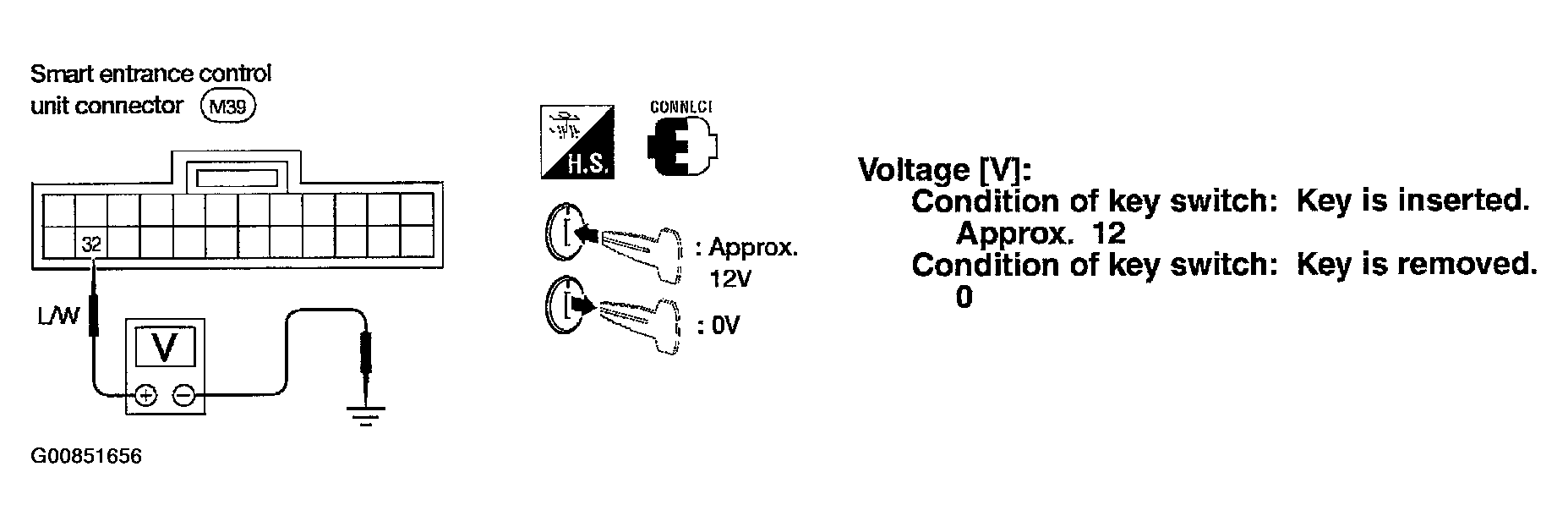

Fig 2: Checking Voltage Between Control Unit Terminal And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Figure ".

OK or NG
1. OK: Key switch is OK.
2. NG: GO TO 2.
CHECK KEY SWITCH
Check continuity between key switch terminals 1 and 2.

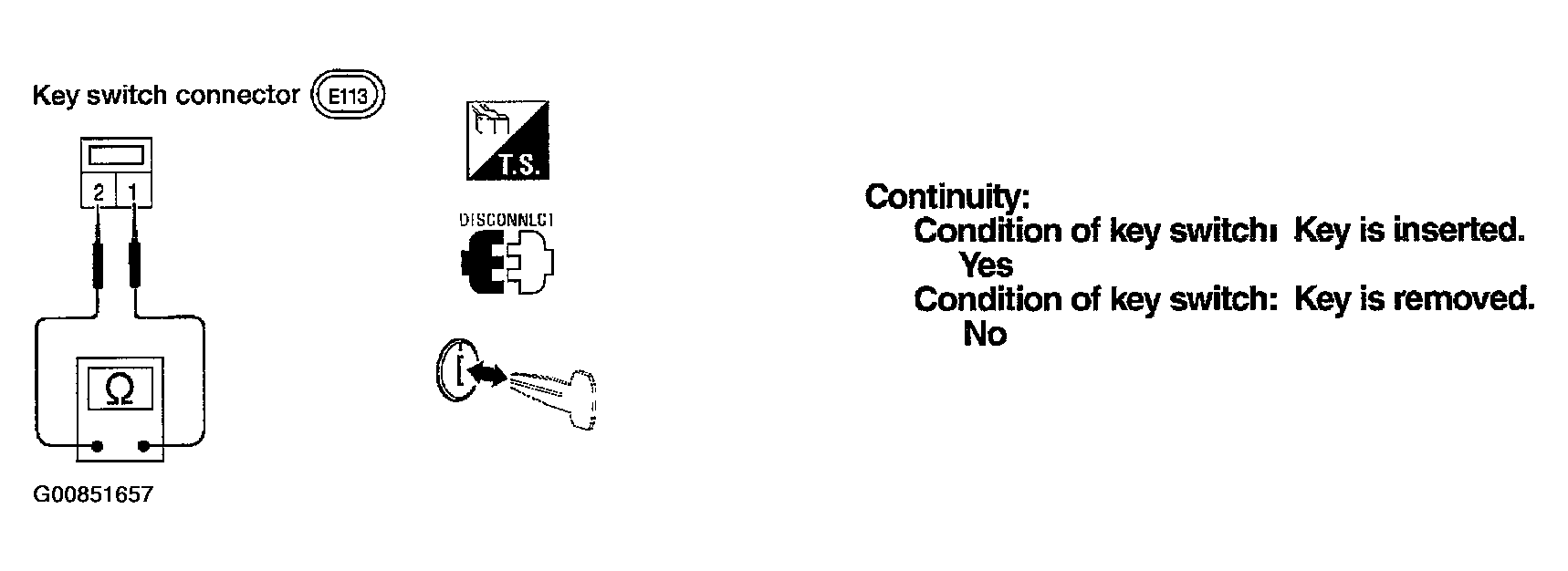

Fig 3: Identifying Key Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Check the following.
  - 10A fuse [No. 12, located in fuse block (J/B)]
  - Harness for open or short between key switch and fuse
  - Harness for open or short between smart entrance control unit and key switch
2. NG: Replace key switch.
