Component Parts and Harness Connector Location

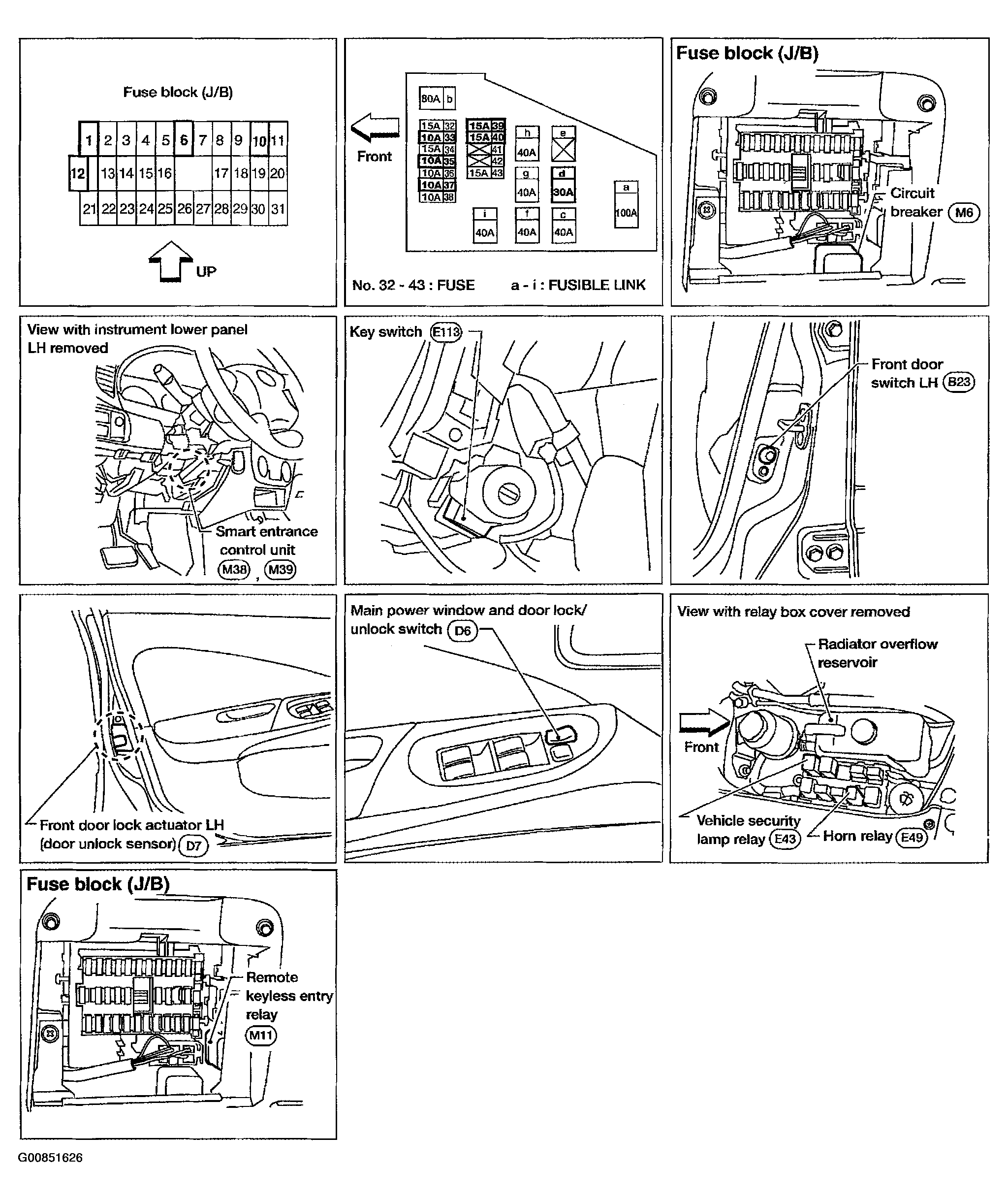

Fig 1: Locating Component Parts And Harness Connector
G00851626Courtesy of NISSAN MOTOR CO., U.S.A.
