Trunk Lid Opener Actuator Check

CHECK TRUNK LID OPENER
Check trunk lid opener operation with trunk lid opener switch.

NOTE: First check trunk lid opener cancel lever position.

Does trunk lid open?
1. Yes: GO TO 2.
2. No: Check trunk lid opener actuator and the circuit.
CHECK TRUNK LID OPENER ACTUATOR OPERATION
With CONSULT-II

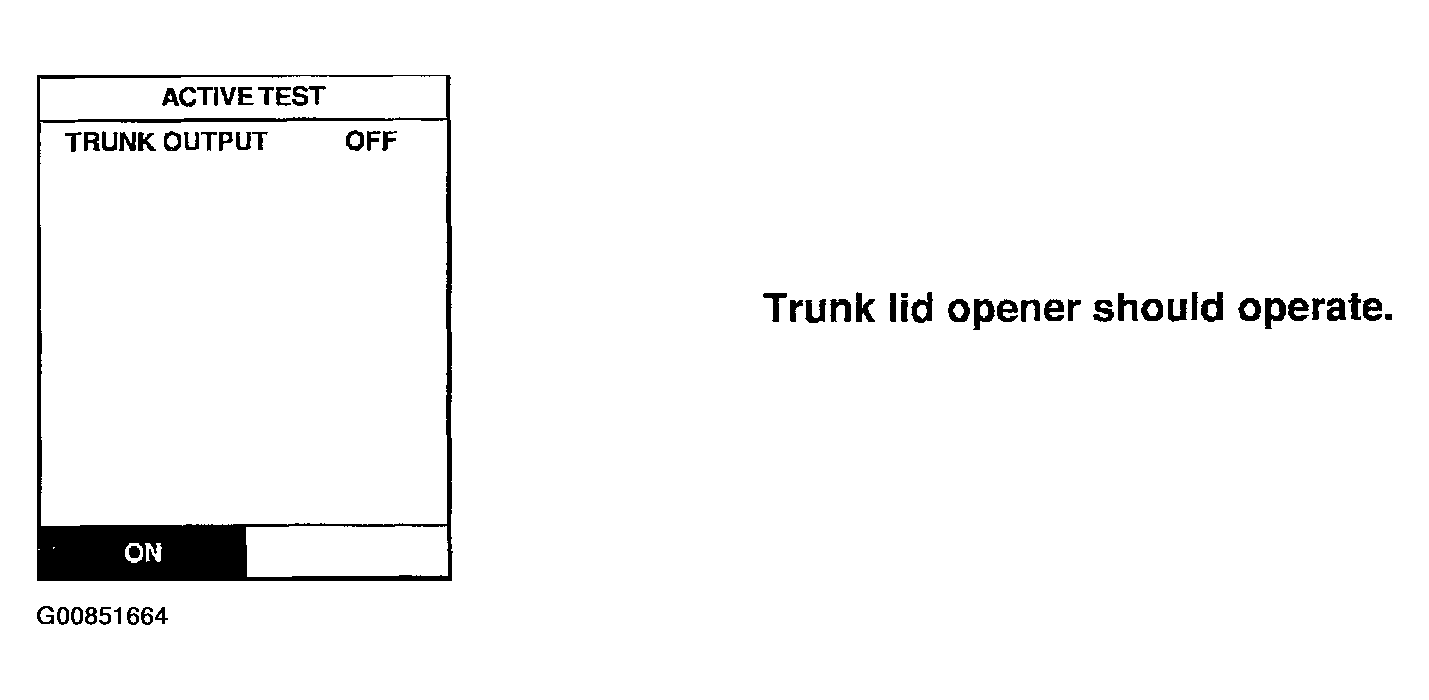

1. Select "ACTIVE TEST" in "MULTI REMOTE ENT" with CONSULT-II.
2. Select "TRUNK OUTPUT" and touch "ON".
Fig 1: Checking Trunk Lid Opener Actuator And Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If CONSULT-II is not available, skip this procedure and GO TO the next step.

OK or NG
1. OK: Trunk lid opener actuator circuit is OK.
2. NG: GO TO 3.
CHECK TRUNK LID OPENER ACTUATOR CIRCUIT
1. Disconnect smart entrance control unit harness connector.

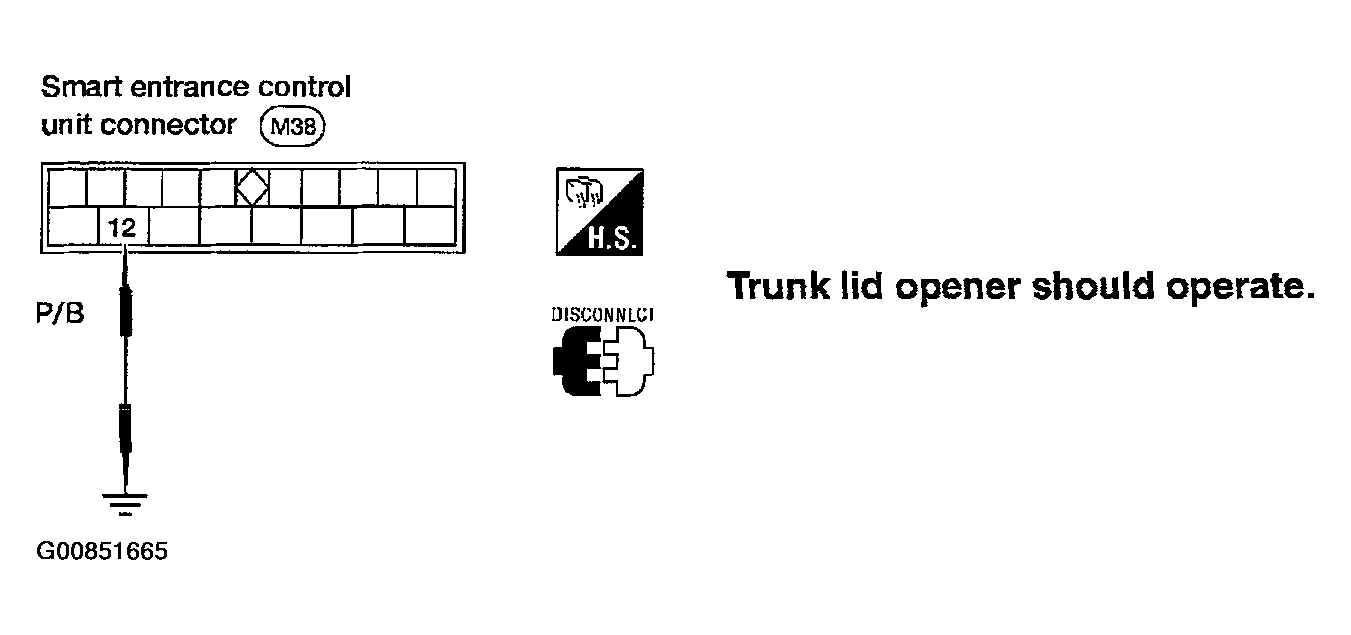

2. Apply ground to smart entrance control unit harness connector terminal 12.

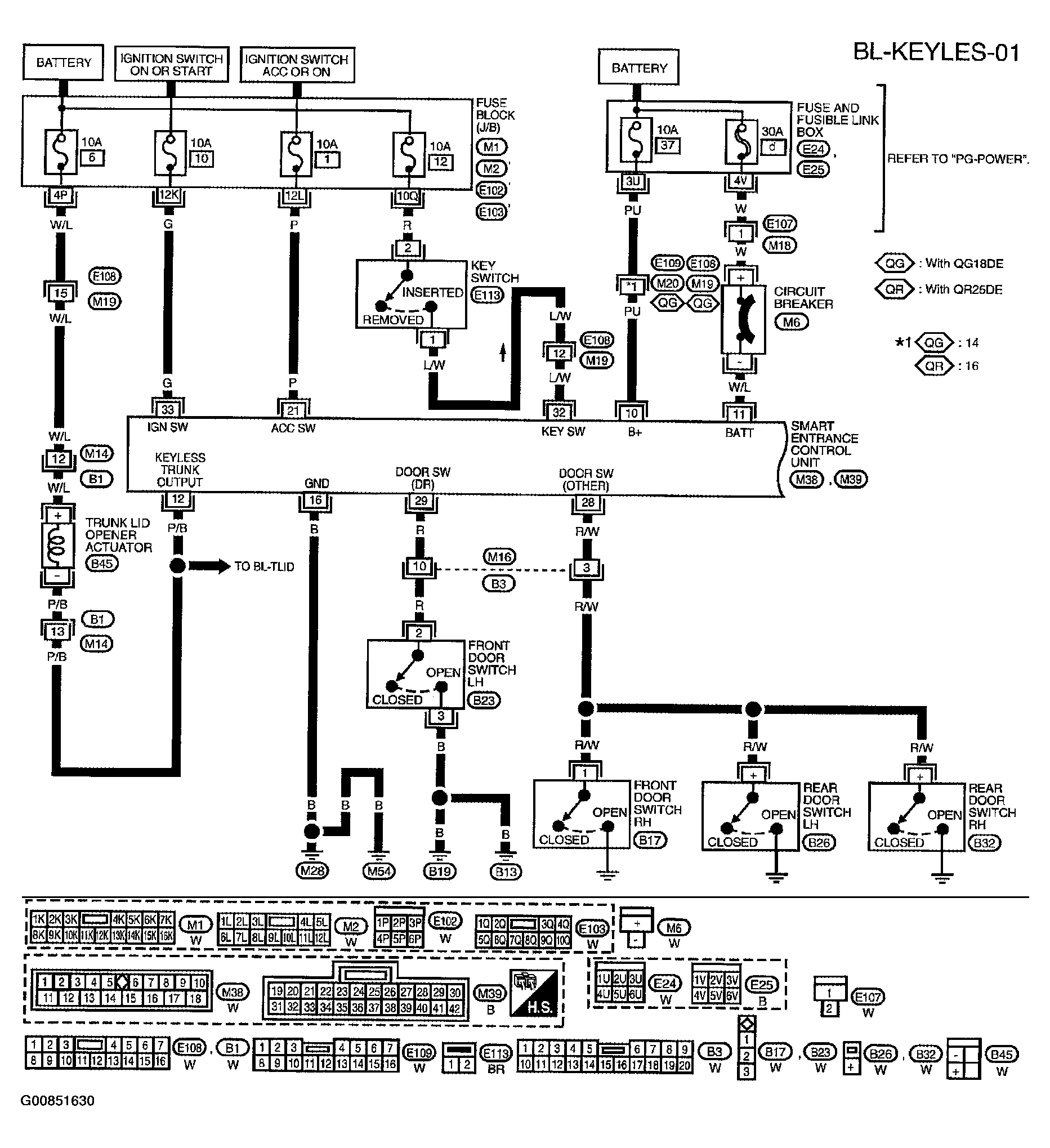

Fig 2: Identifying Trunk Lid Opener Actuator Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Figure ".

Does trunk lid open?
1. Yes: Replace smart entrance control unit.
2. No: Check harness for open or short between smart entrance control unit and trunk lid opener actuator.
