Removal and Installation: Removal

After removing interior moldings and trim to access edge of glass, remove glass using piano wire or power cutting tool and an inflatable pump bag.

WARNING: When removing the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes or cutting your hands.

CAUTION:

Be careful not to scratch the glass when removing.
Do not set or stand the glass on its edge. Small chips may develop into cracks.

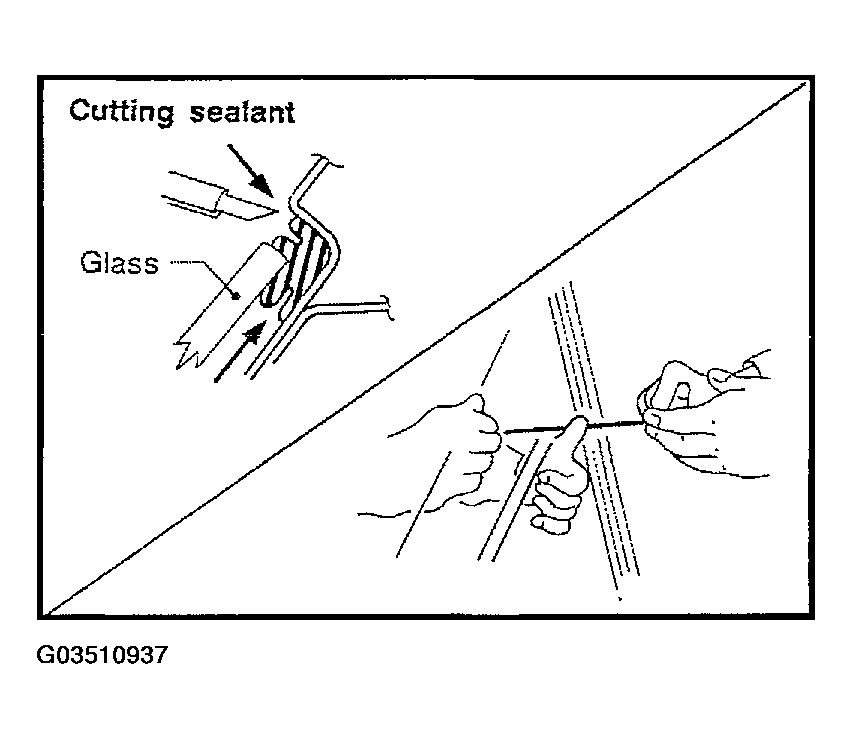

Fig 1: Removing Glass Using Piano Wire

Courtesy of NISSAN MOTOR CO., U.S.A.

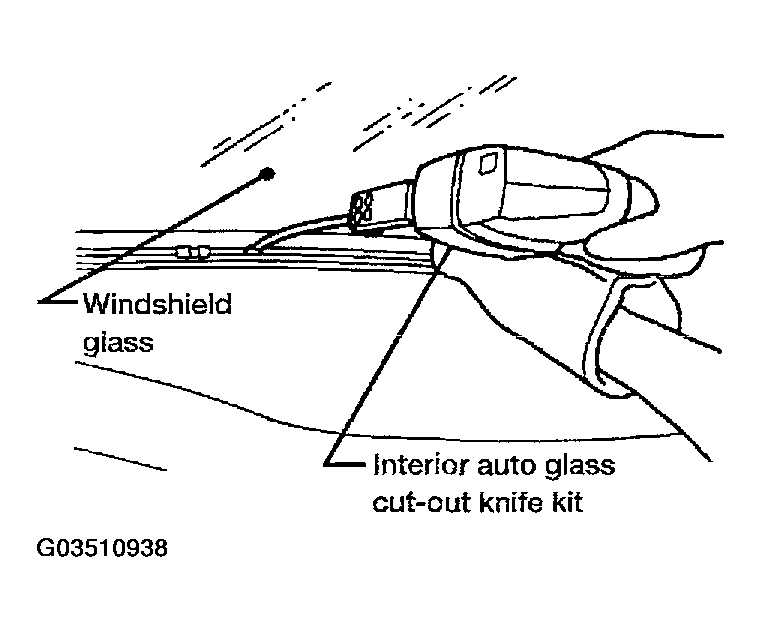

Fig 2: Removing Wind Shield Glass (Step 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Removing Wind Shield Glass (Step 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
