Active Test Procedure

Turn ignition switch OFF.
Connect CONSULT-II to Data Link Connector.
Start engine.
Touch "START" on CONSULT-II screen.

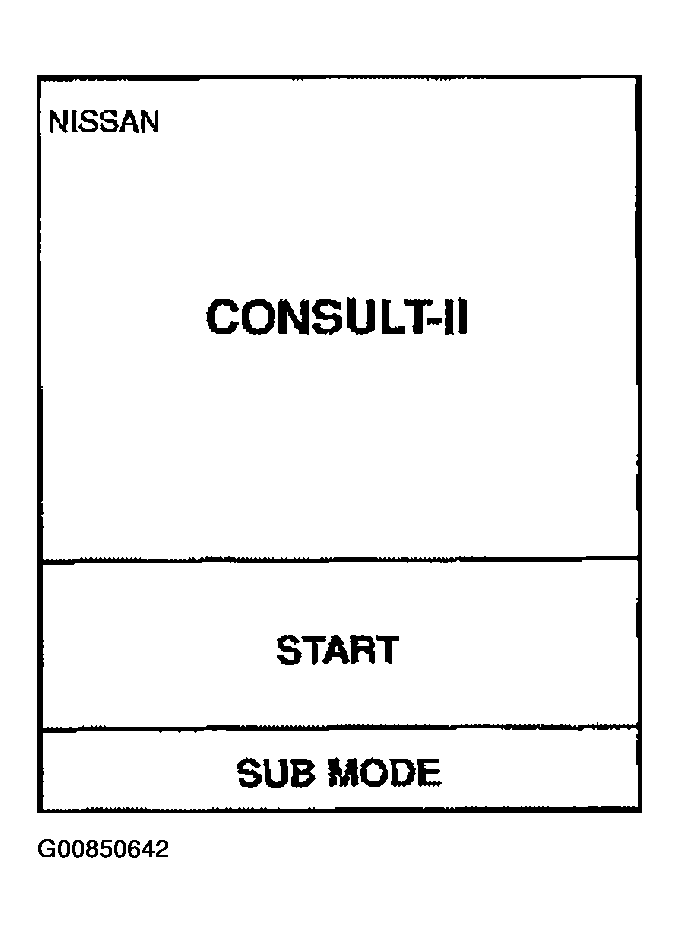

Fig 1: Touch "Start" On Consult-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS".

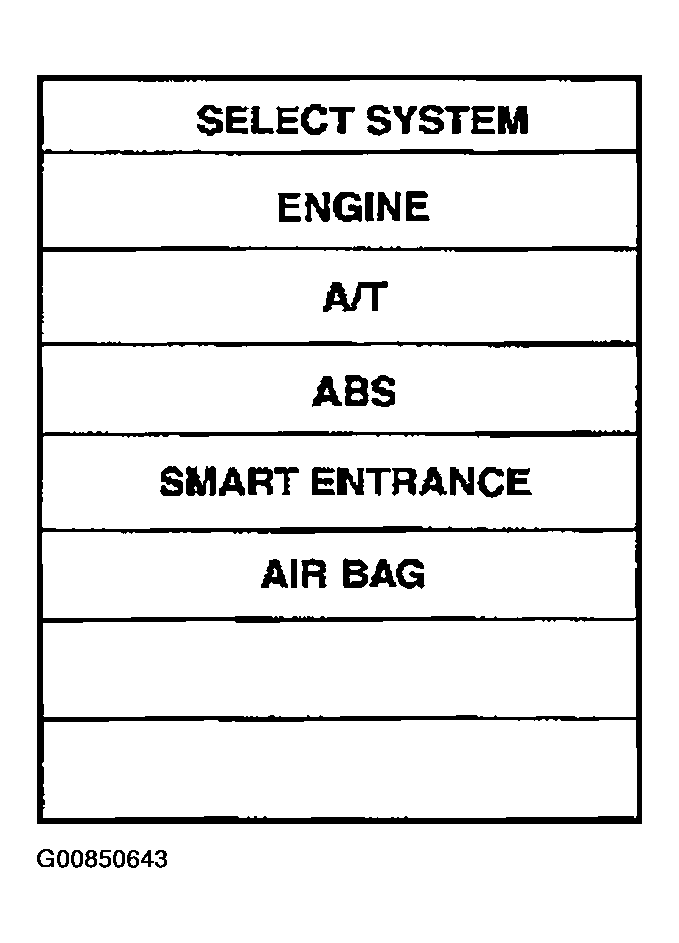

Fig 2: Touch "ABS" On Consult-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ACTIVE TEST".

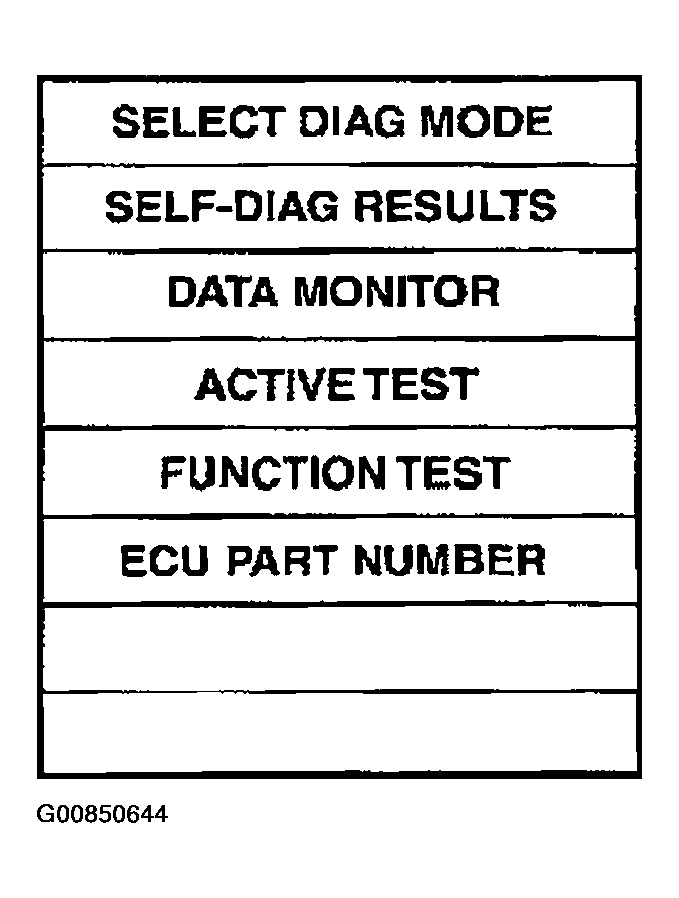

Fig 3: Touch "Active Test On Consult-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select active test item by touching screen.

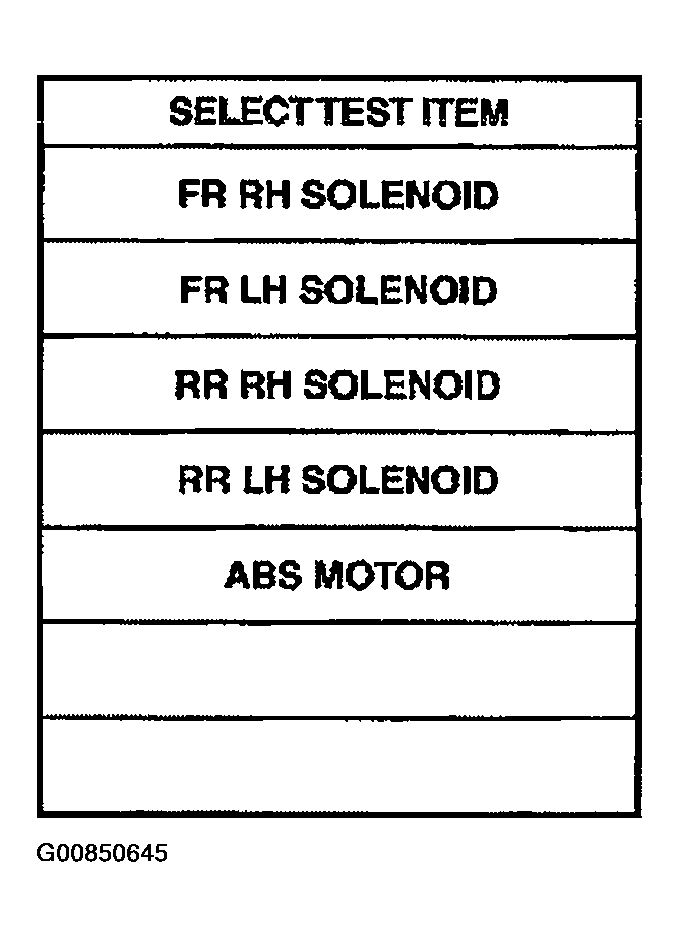

Fig 4: Selecting Active Test Item By Touching Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
Carry out the active test by touching screen key.

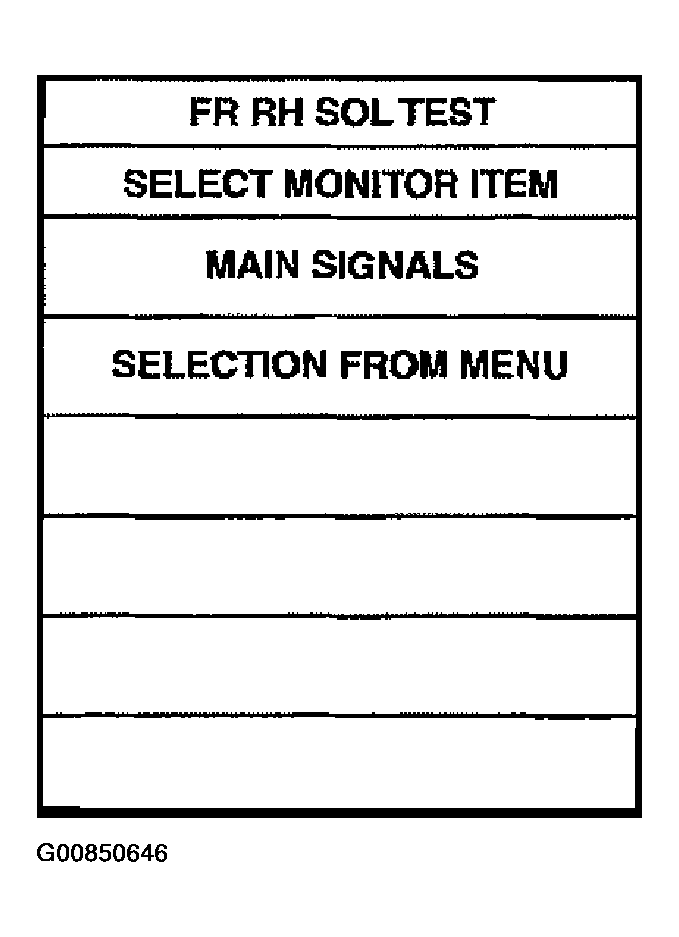

Fig 5: Carrying Out Active Test By Touching Screen Key

Courtesy of NISSAN MOTOR CO., U.S.A.
