Data Monitor Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to Data Link Connector.
  3. Turn ignition switch ON.
  4. Touch "START" on CONSULT-II screen.

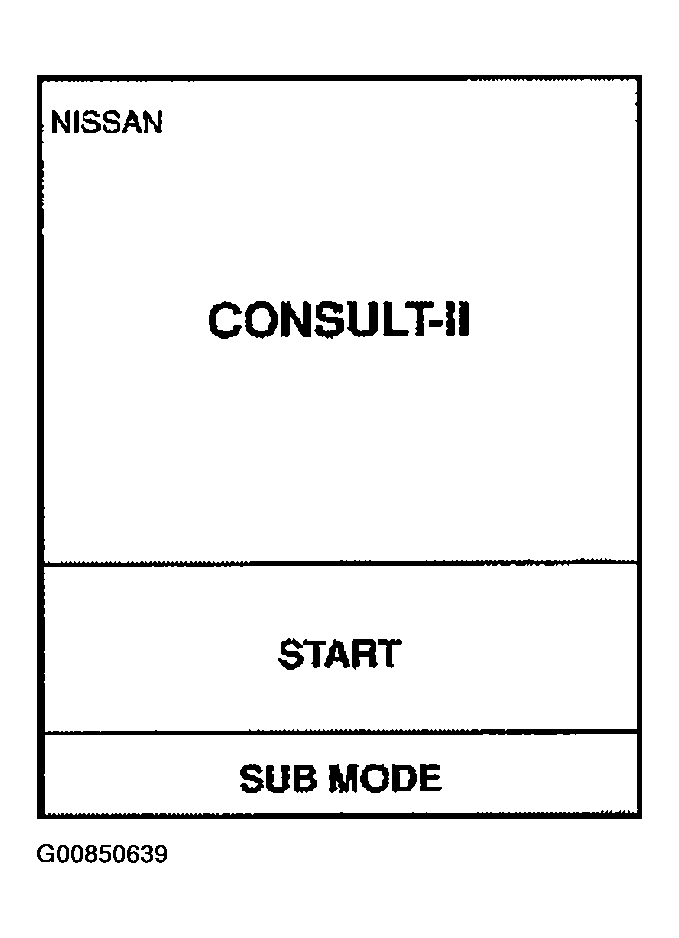

    Fig 1: Touch "Start" On Consult-II Screen
    G00850639Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS".

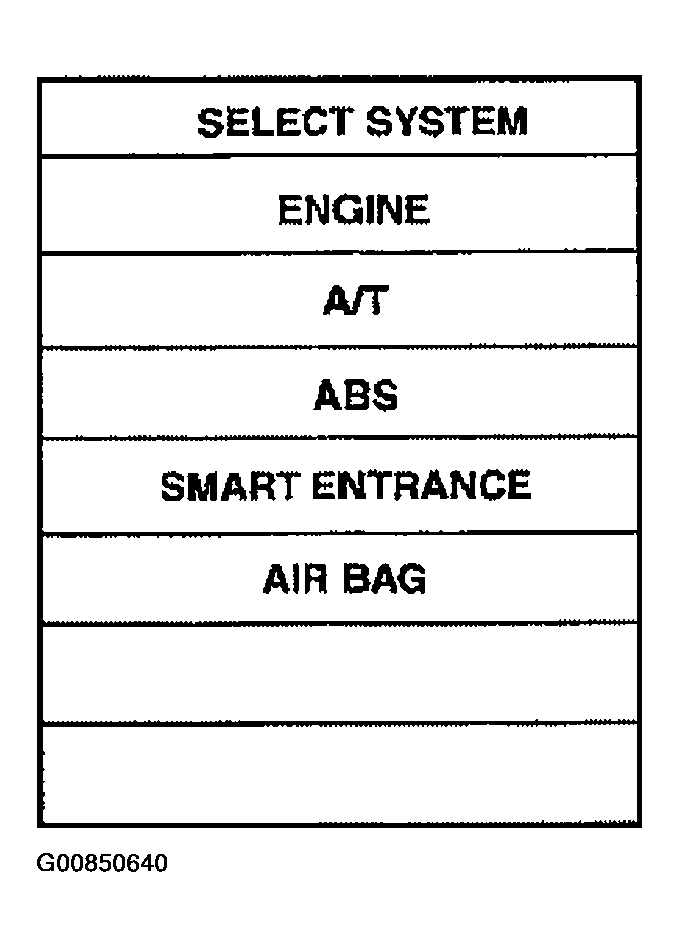

    Fig 2: Touch "ABS" On Consult-II Screen
    G00850640Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".

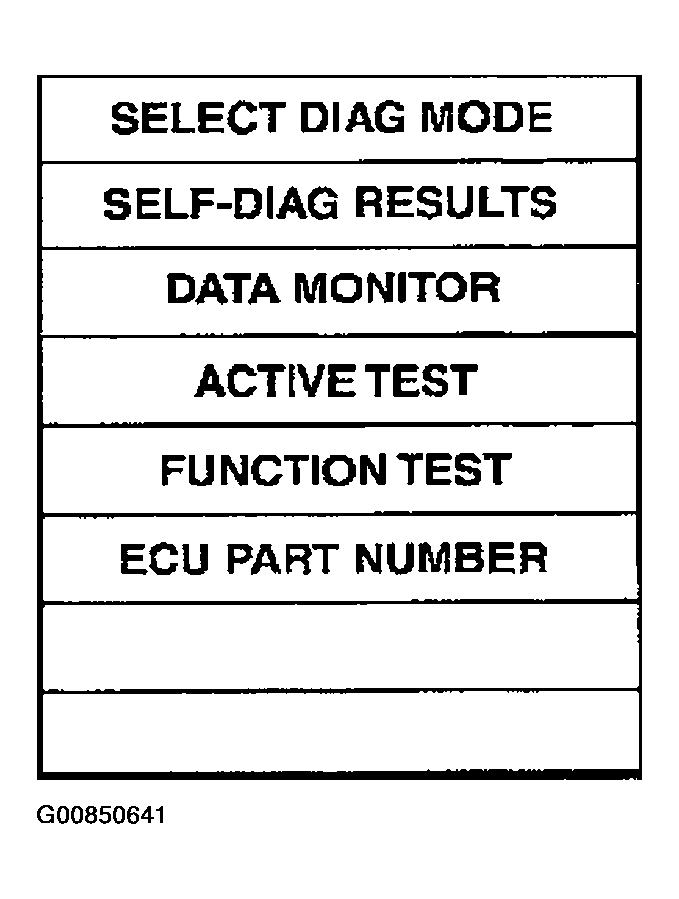

    Fig 3: Touch "Data Monitor" On Consult-II Screen
    G00850641Courtesy of NISSAN MOTOR CO., U.S.A.
