Dynamic Damper

  1. Use a new damper band when reinstalling.
  2. Install dynamic damper from stationary-joint side while holding it securely:

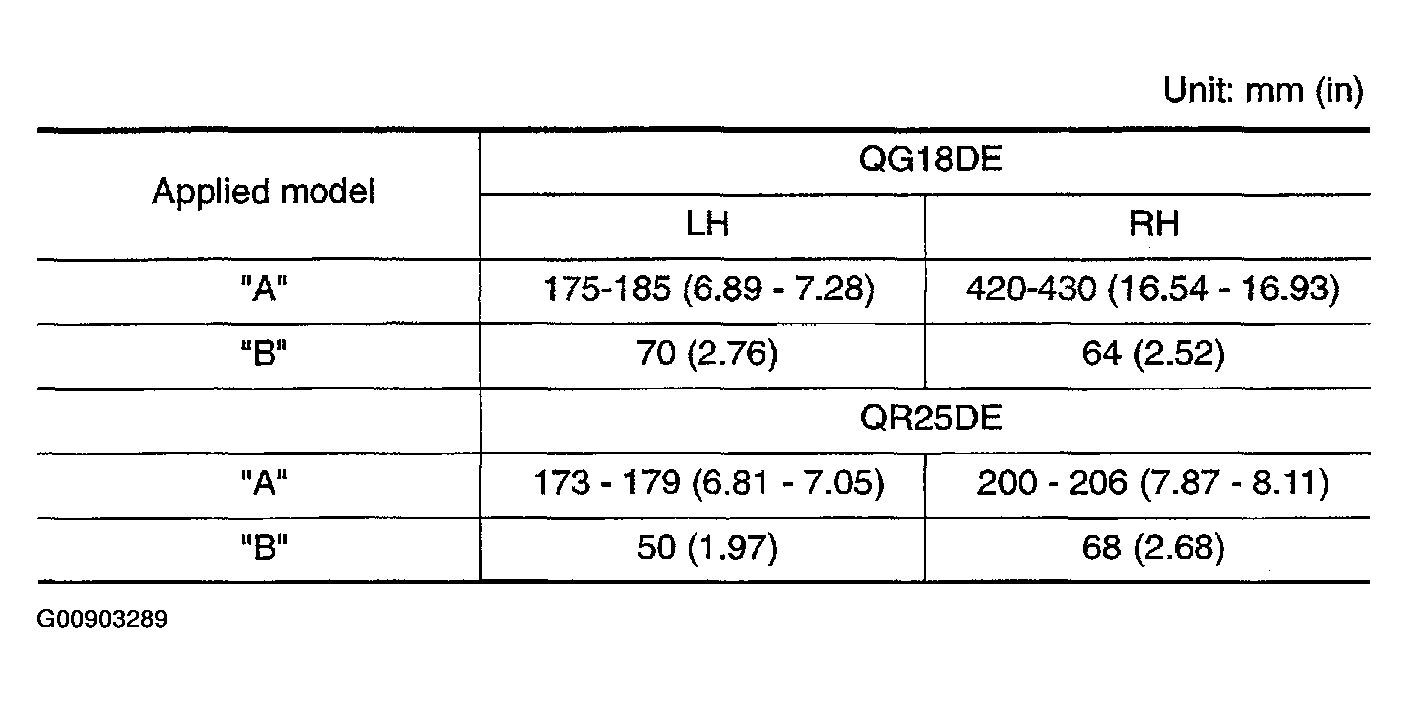

    Fig 1: Installing Dynamic Damper From Stationary (1 Of 2)
    G00903289Courtesy of NISSAN MOTOR CO., U.S.A.

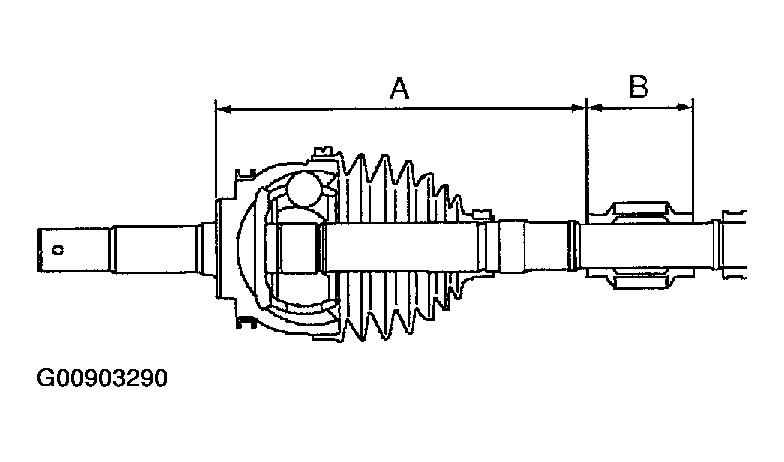

    Fig 2: Installing Dynamic Damper From Stationary (2 Of 2)
    G00903290Courtesy of NISSAN MOTOR CO., U.S.A.
