Drive Shaft: Components

CAUTION:
  • Circular clips should be properly meshed with differential side gear (transaxle side) and with joint assembly (wheel side). Make sure they will not come out.
  • Be careful not to damage boots. Use suitable protector or cloth during removal and installation.

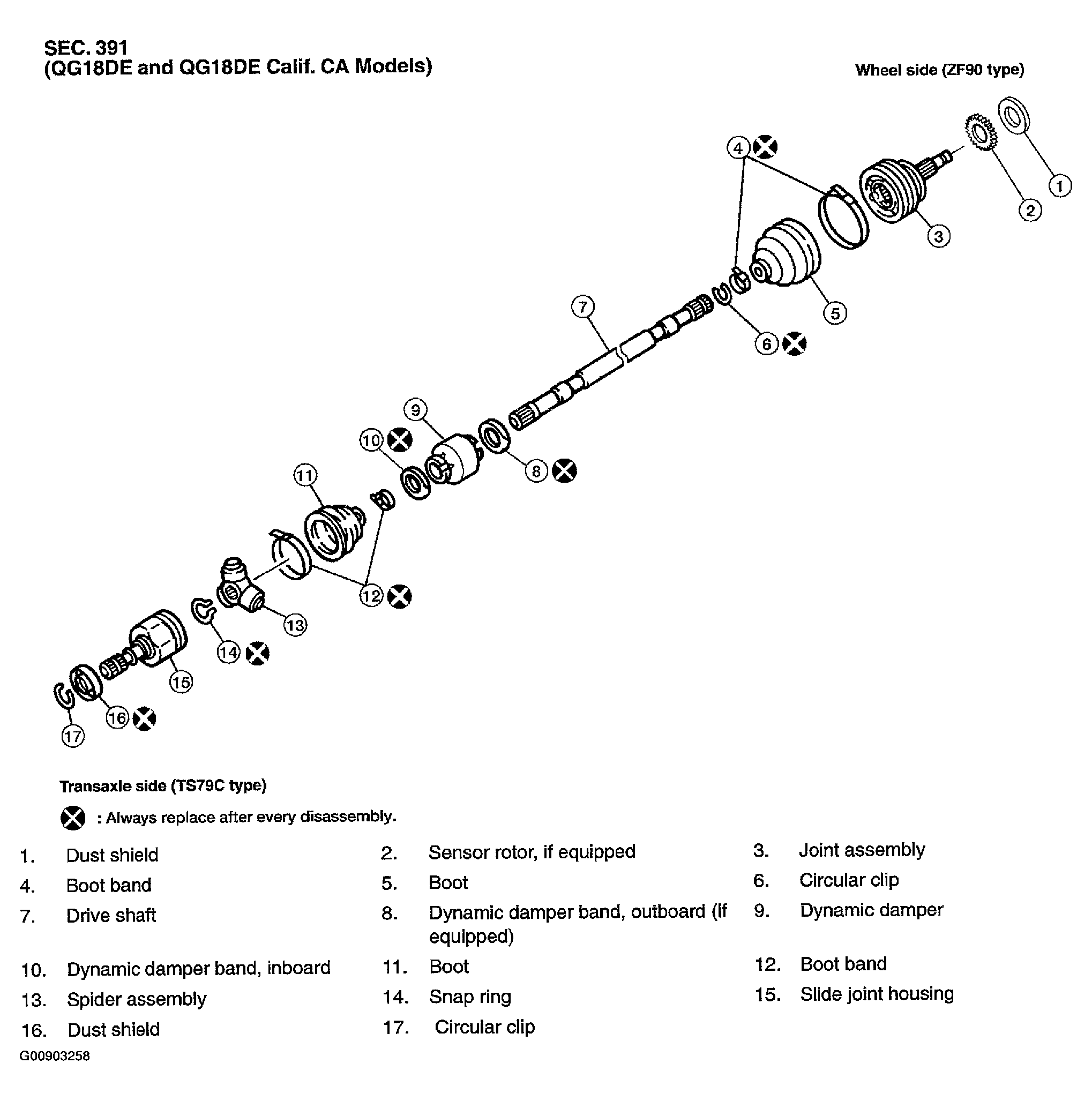

Fig 1: Identifying Drive Shaft (1 Of 3)
G00903258Courtesy of NISSAN MOTOR CO., U.S.A.

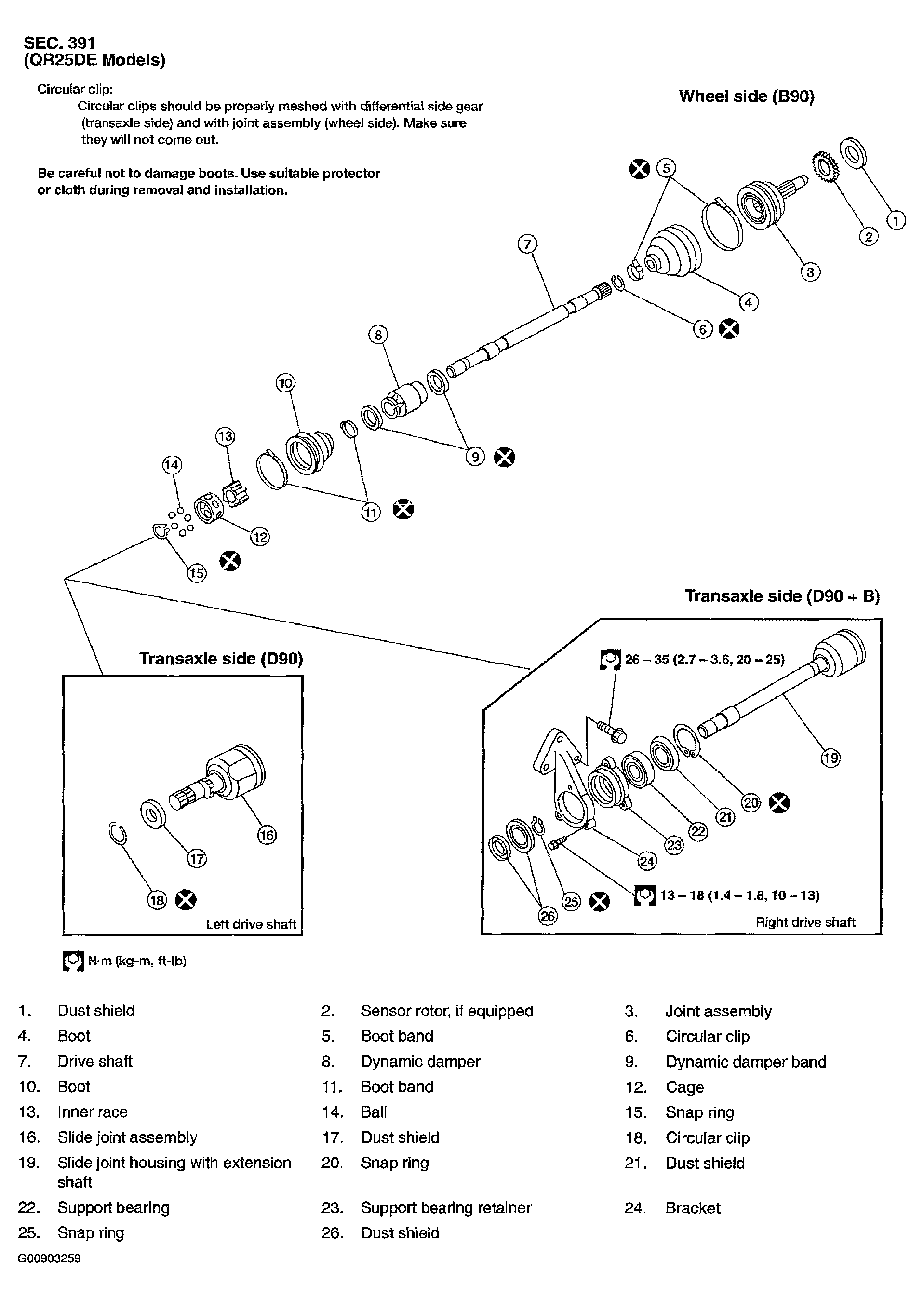

Fig 2: Identifying Drive Shaft (2 Of 3)
G00903259Courtesy of NISSAN MOTOR CO., U.S.A.

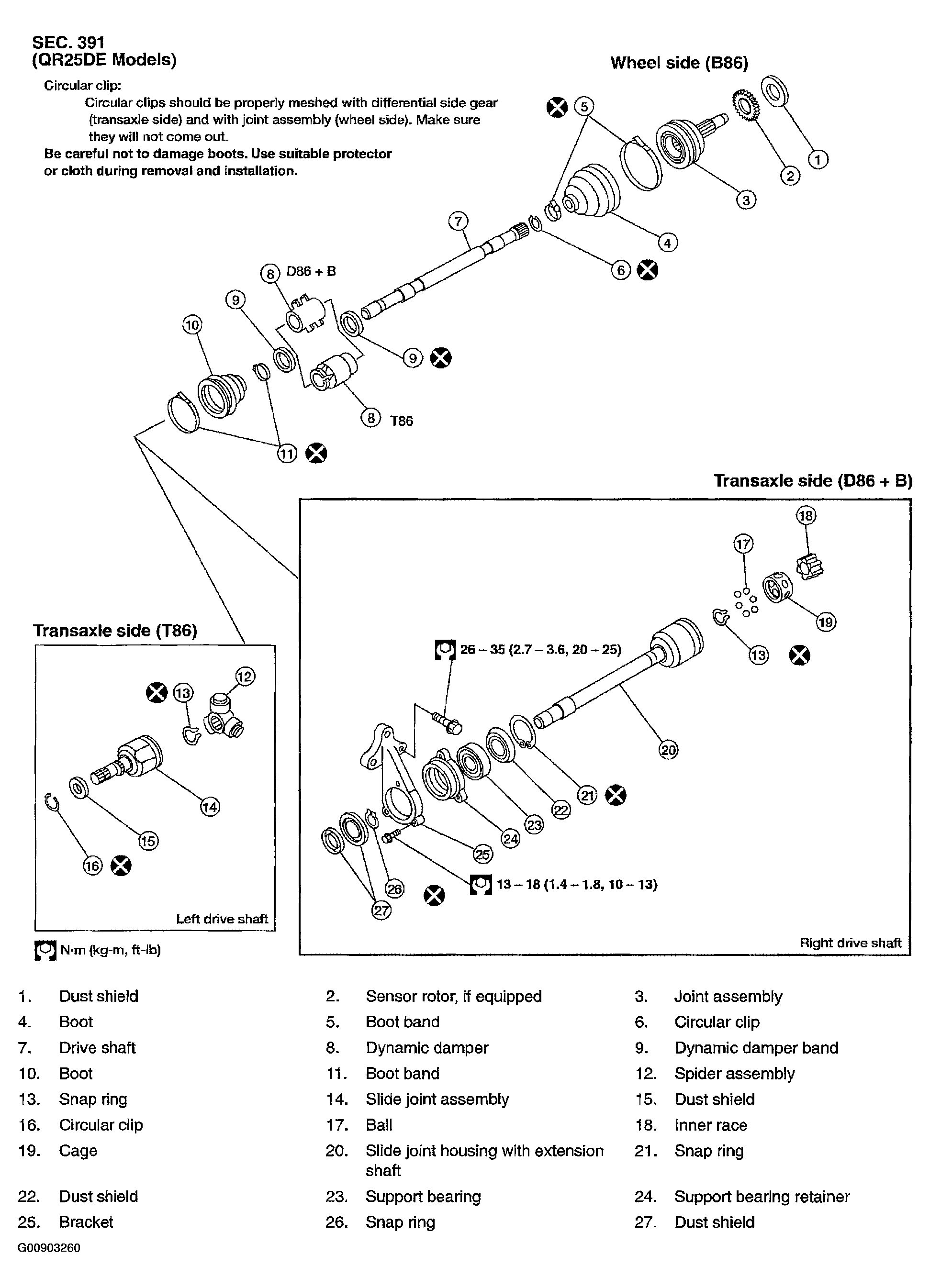

Fig 3: Identifying Drive Shaft (3 Of 3)
G00903260Courtesy of NISSAN MOTOR CO., U.S.A.
