Transaxle Side

  1. Drive a new oil seal to transaxle. Refer to SIDE OIL SEAL - RS5F70A , SIDE OIL SEAL - RS6F51H , AUTOMATIC TRANSAXLE RE4F03B or AUTOMATIC TRANSAXLE RE4F04B .
  2. Set Tool along the inner circumference of oil seal.

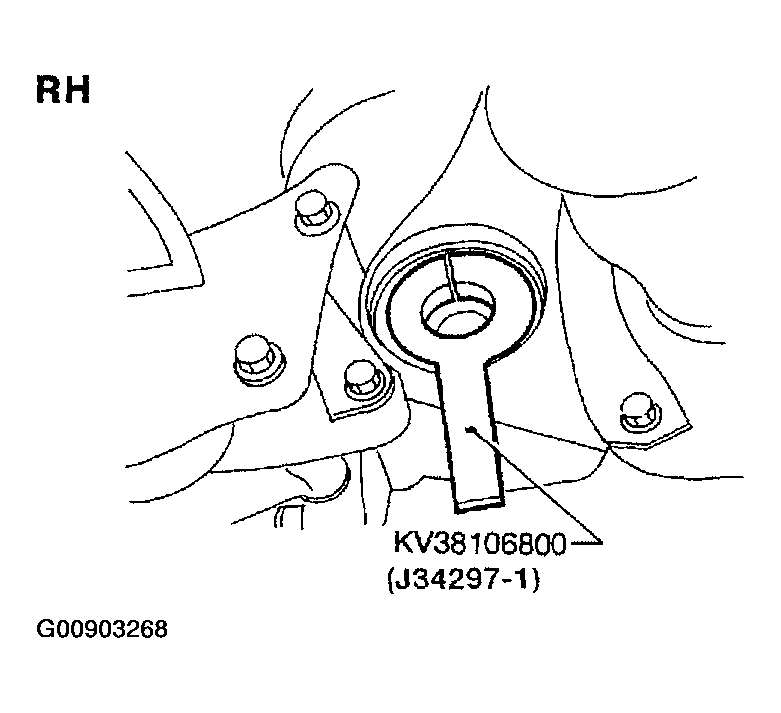

    Fig 1: Locating Tool Along Inner Circumference Of Oil Seal
    G00903268Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Insert drive shaft into transaxle. Be sure to properly align the serrations and then withdraw Tool.
  4. Push drive shaft, then press-fit circular clip on the drive shaft into circular clip groove of side gear.
  5. After its insertion, try to pull the flange out of the slide joint by hand. If it pulls out, the circular clip is not properly meshed with the side gear.
Fig 2: Inserting Drive Shaft Into Transaxle
G00903269Courtesy of NISSAN MOTOR CO., U.S.A.
