Drive Shaft: Removal

Remove cotter pin and wheel bearing lock nut.

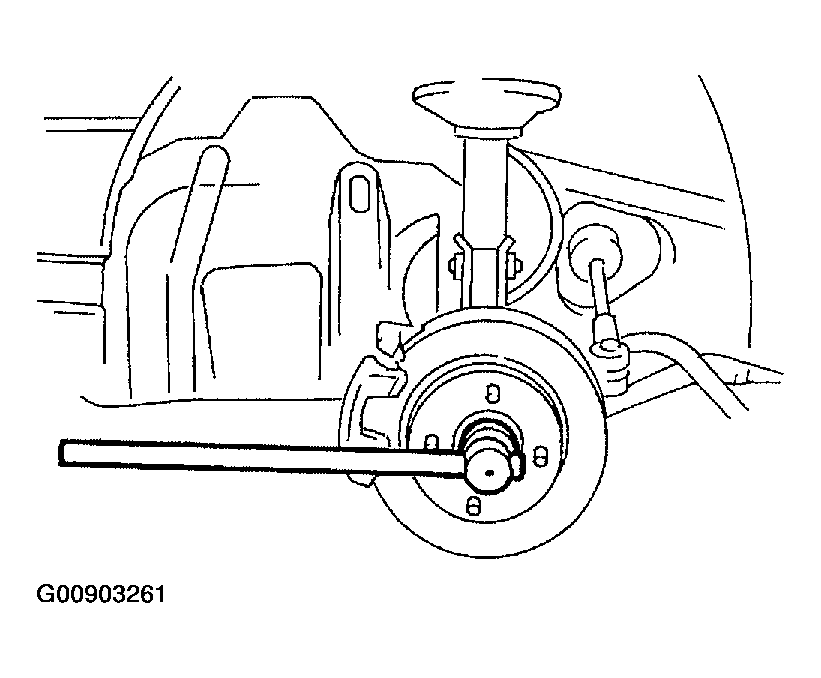

Fig 1: Removing Cotter Pin And Wheel Bearing Lock Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove drive shaft center support bearing bolts.

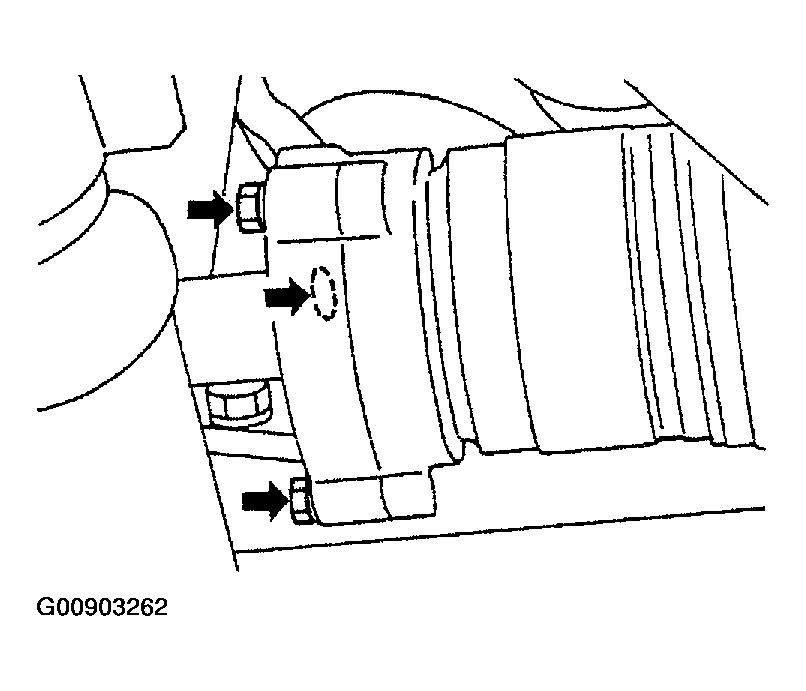

Fig 2: Removing Drive Shaft Center Support Bearing Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

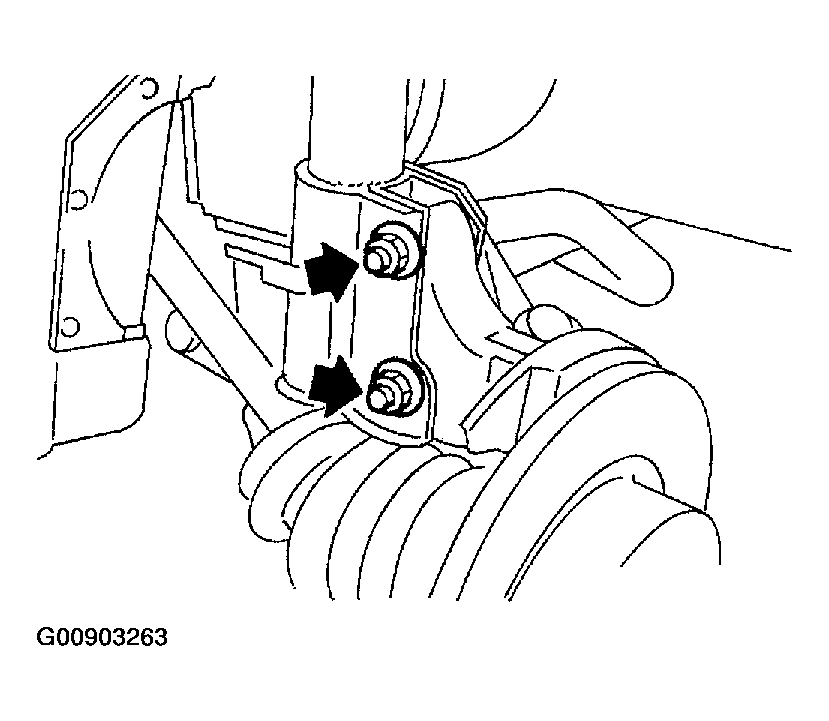

Remove strut lower mounting nuts and bolts.
Remove brake hose clip.

Fig 3: Removing Brake Hose Clip
Courtesy of NISSAN MOTOR CO., U.S.A.
Separate drive shaft from knuckle by lightly tapping it. If it is hard to remove, use a puller.
- Cover boots with shop towel so as not to damage them when removing drive shaft.

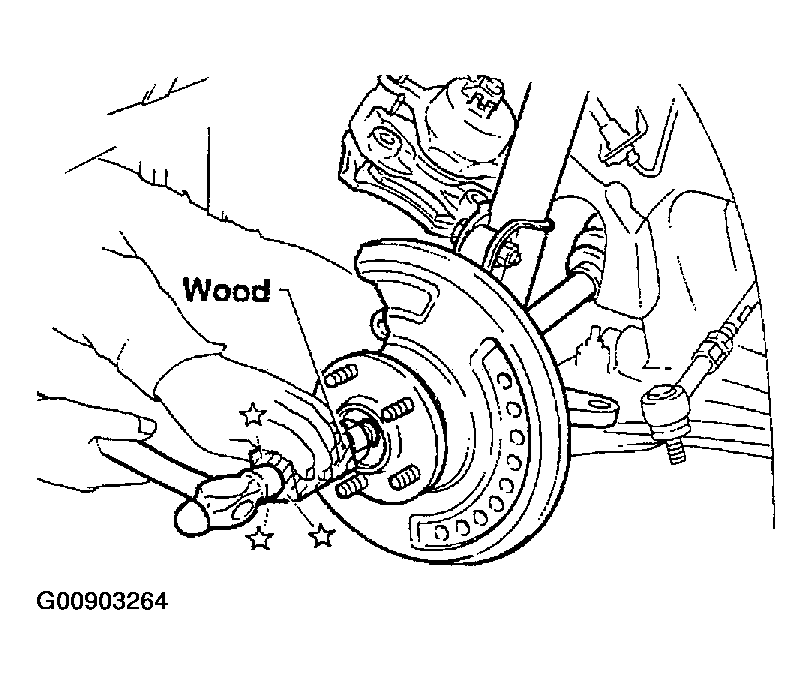

Fig 4: Removing Drive Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove left drive shaft from transaxle.

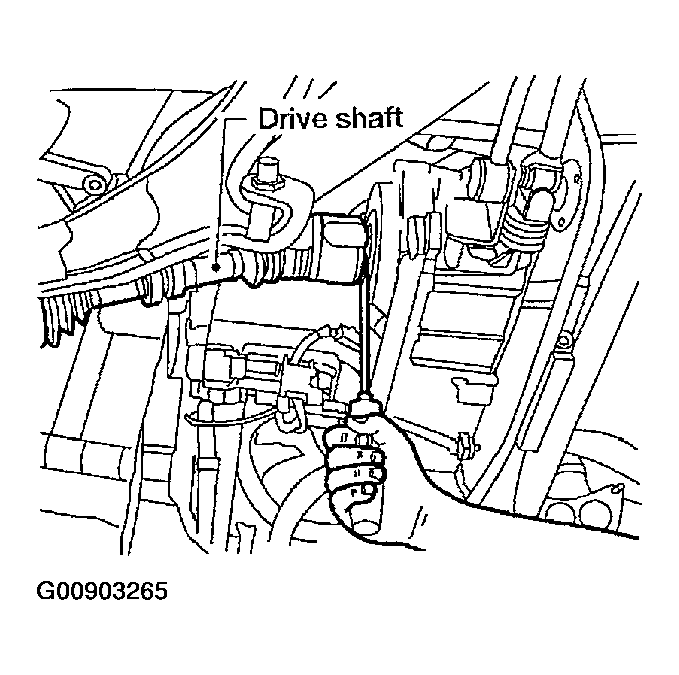

Fig 5: Removing Left Drive Shaft From Transaxle
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove right drive shaft from transaxle.
- For M/T models -
- Pry off drive shaft from transaxle as shown at right.

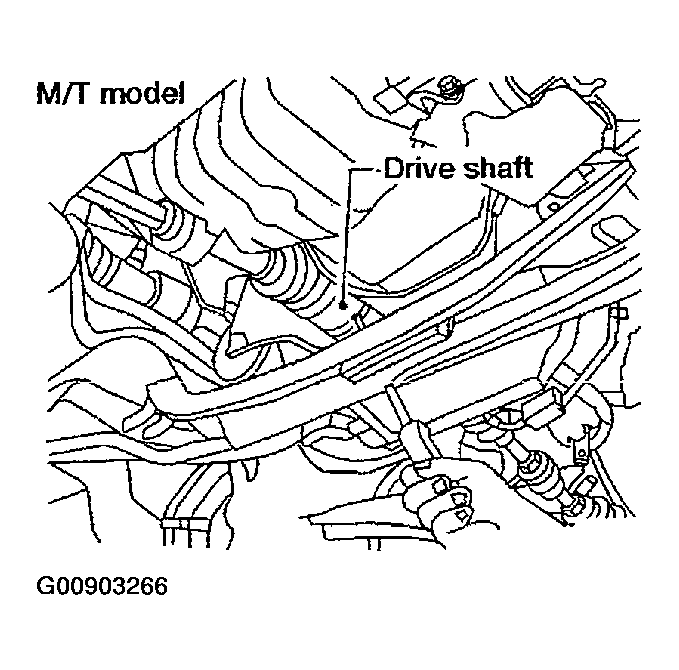

  Fig 6: Removing Right Drive Shaft From Transaxle
  Courtesy of NISSAN MOTOR CO., U.S.A.

  - For A/T models -
- Insert screwdriver into transaxle opening for right drive shaft and strike with a hammer.
- Be careful not to damage pinion mate shaft and side gear.

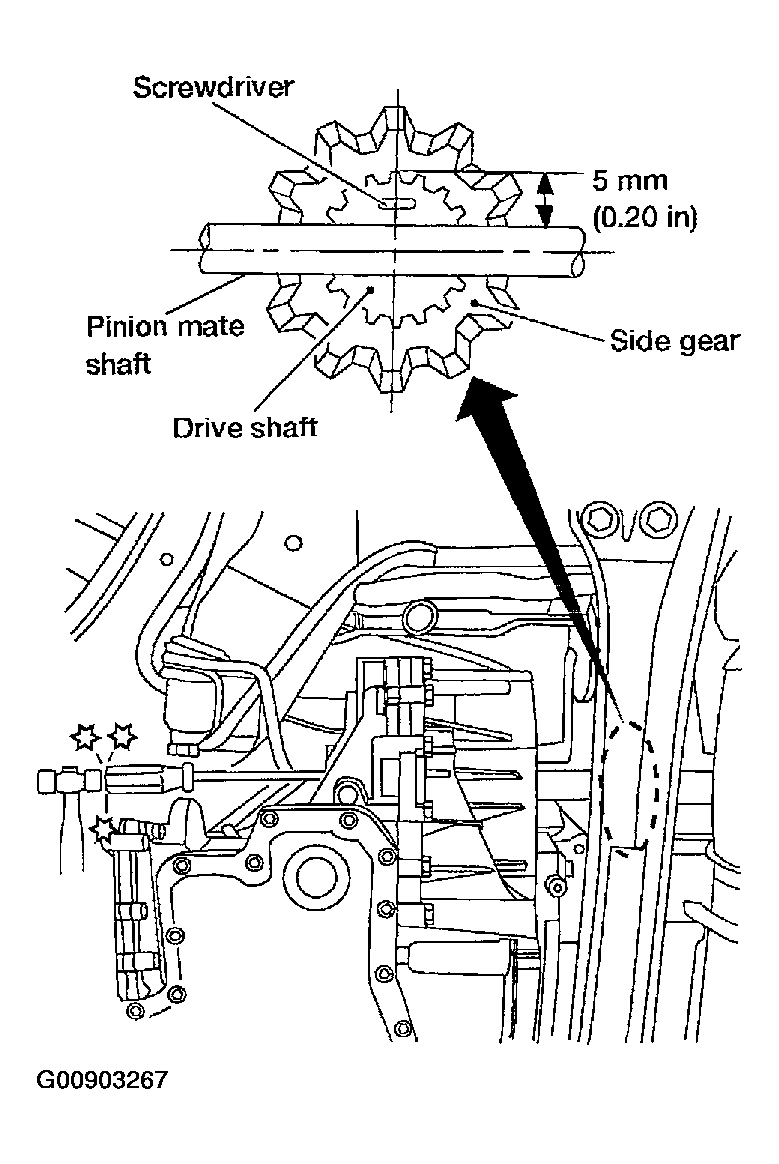

Fig 7: Inserting Screwdriver Into Transaxle Opening For Right Drive Shaft

Courtesy of NISSAN MOTOR CO., U.S.A.
