System Description

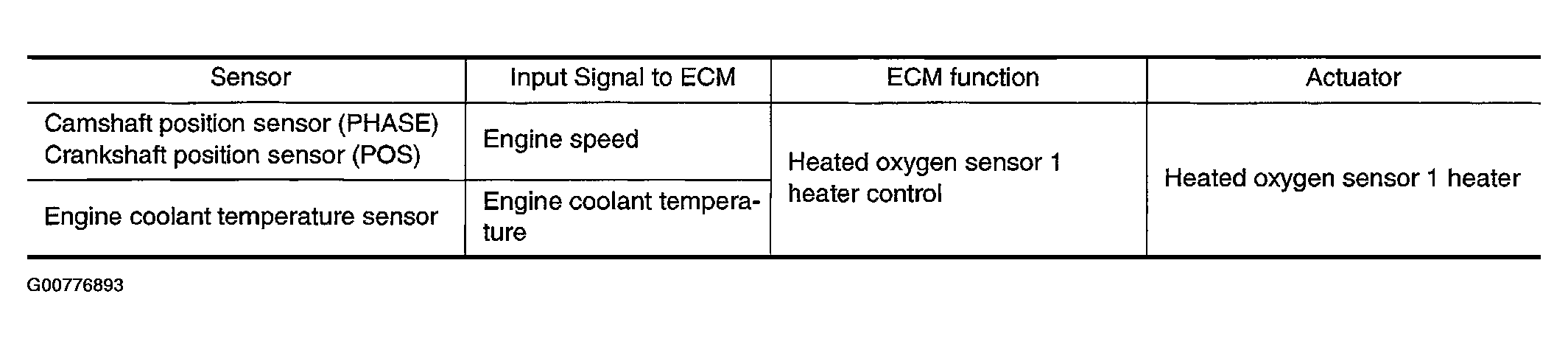

Fig 1: Heater System Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

The ECM performs ON/OFF duty control of the heated oxygen sensor 1 heater corresponding to the engine speed and engine coolant temperature. The duty percent varies with engine coolant temperature when engine is started.
