With CONSULT-II

Turn ignition switch ON.
Start engine and warm it up to normal operating temperature.
If engine cannot be started, go to "DIAGNOSTIC PROCEDURE ".
Select "DATA MONITOR" mode with CONSULT-II.
Check the voltage of "MAS A/F SE-B1" with "DATA MONITOR".
Increases engine speed to about 4, 000 RPM.
Monitor the linear voltage rise in response to engine speed increases.

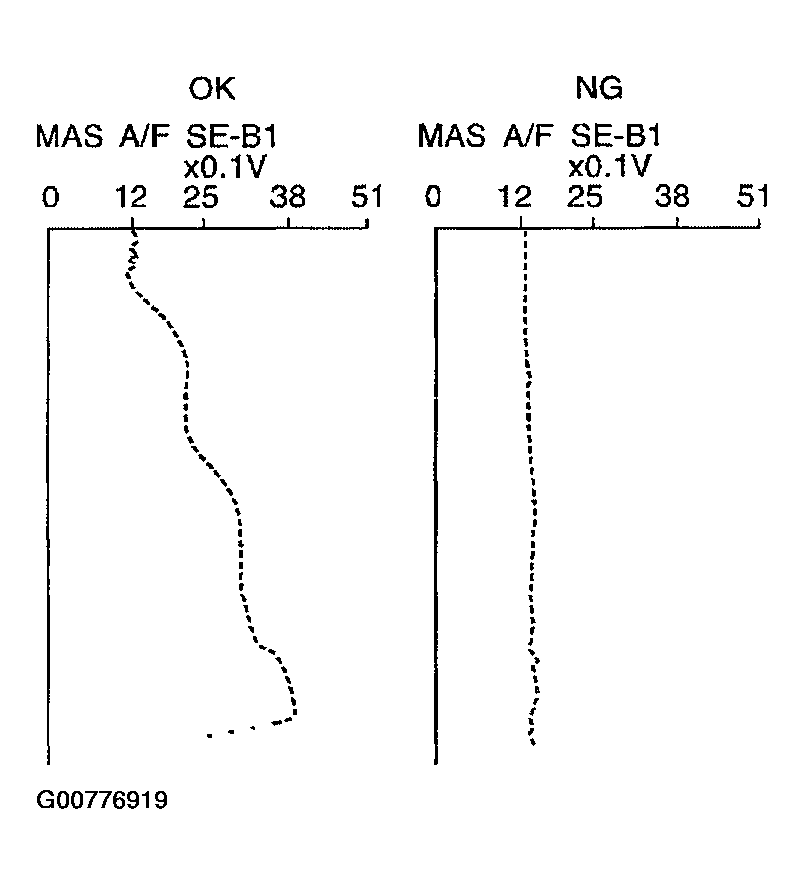

Fig 1: Checking Voltage Of MAS A/F SE-B1
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, go to "DIAGNOSTIC PROCEDURE ".

If OK, go to following step.
Maintain the following conditions for at least 10 consecutive seconds.

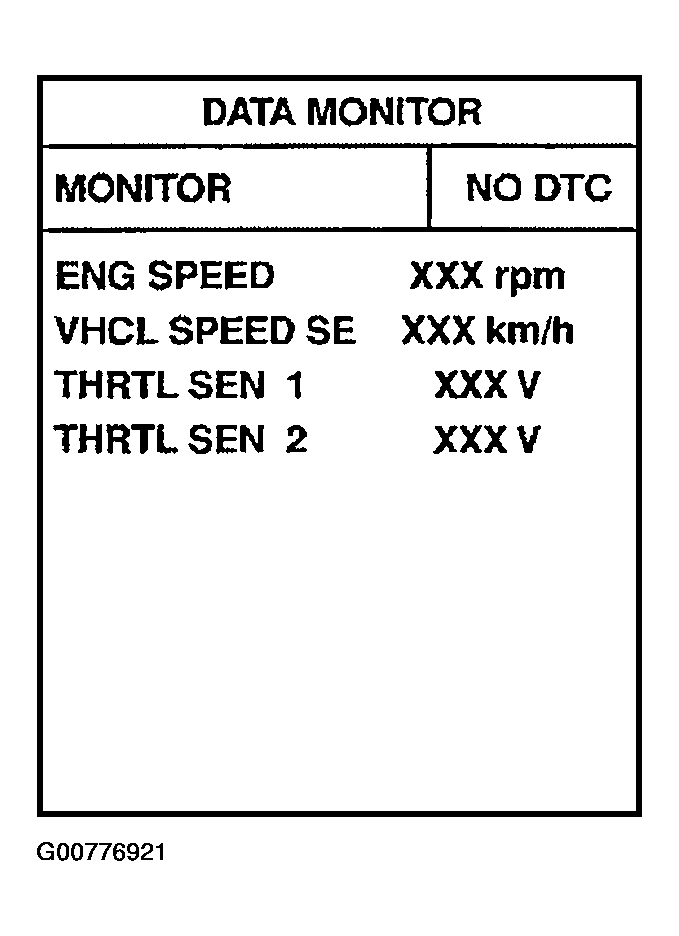

Fig 2: View Of Data Monitor Mode & Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

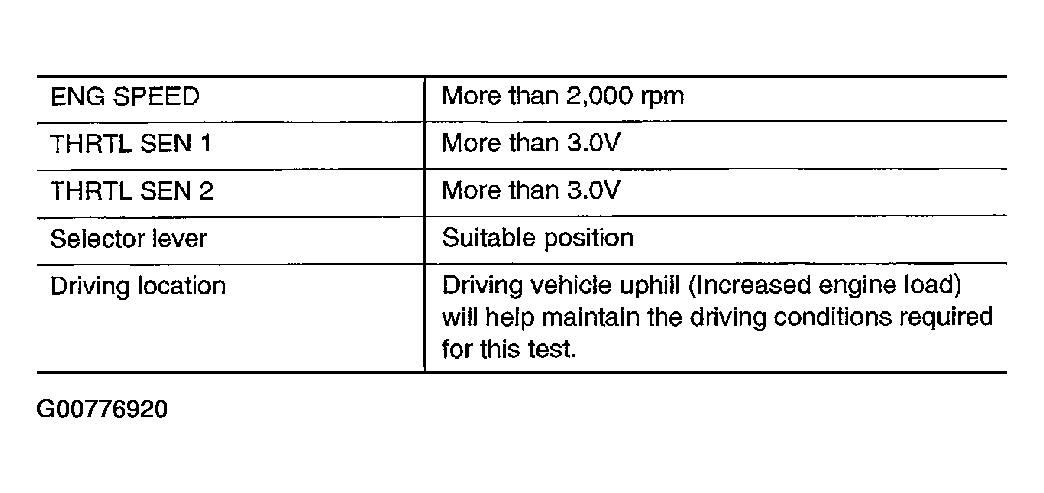

Fig 3: Engine Speed, Throttle Sensor, Selector Lever & Driving Location Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
