Intake Air Temperature Sensor

Check resistance between intake air temperature sensor terminals 5 and 6 under the following conditions.

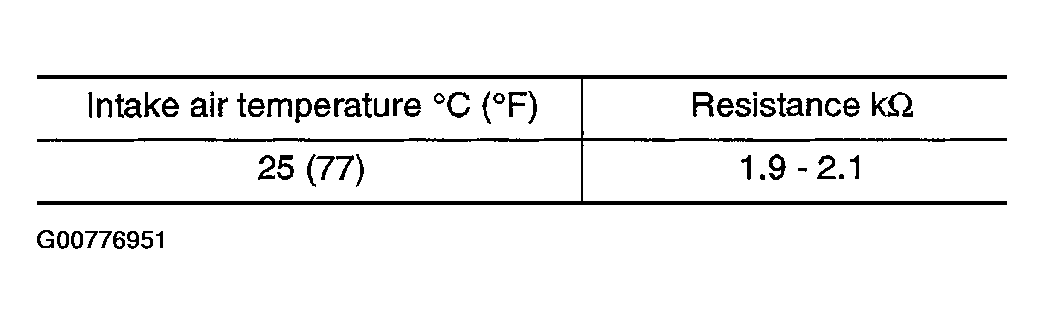

Fig 1: Intake Air Temperature Sensor Resistance Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

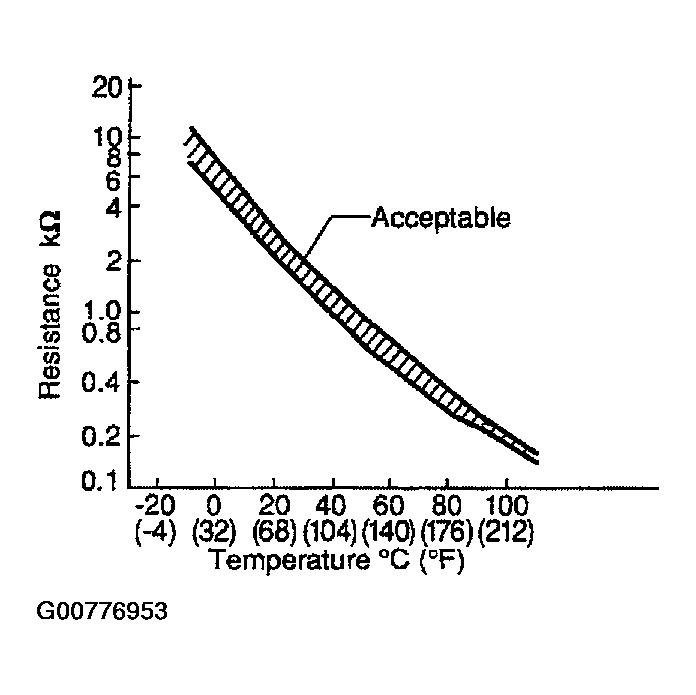

Fig 2: Intake Air Temperature Sensor Resistance Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace mass air flow sensor (with intake air temperature sensor).

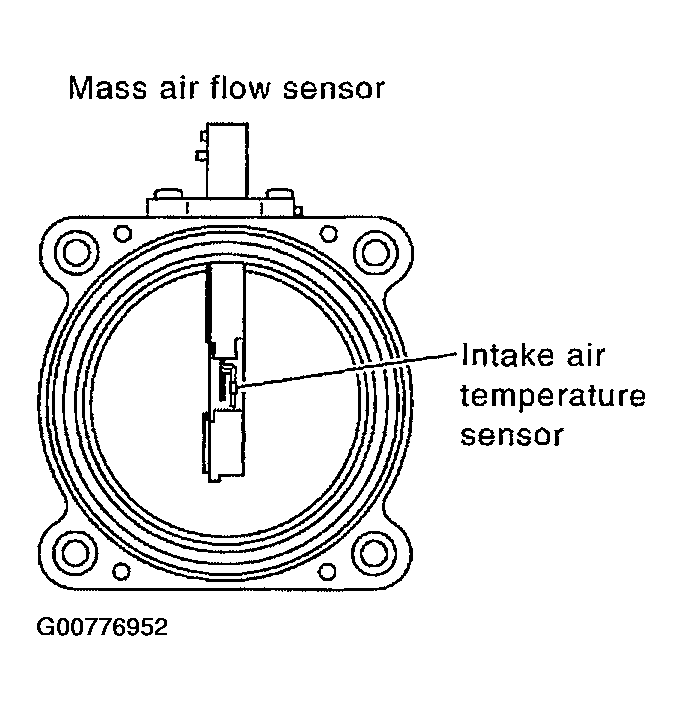

Fig 3: View Of MAF Sensor & IAT Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
