Engine Coolant Temperature Sensor

Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.

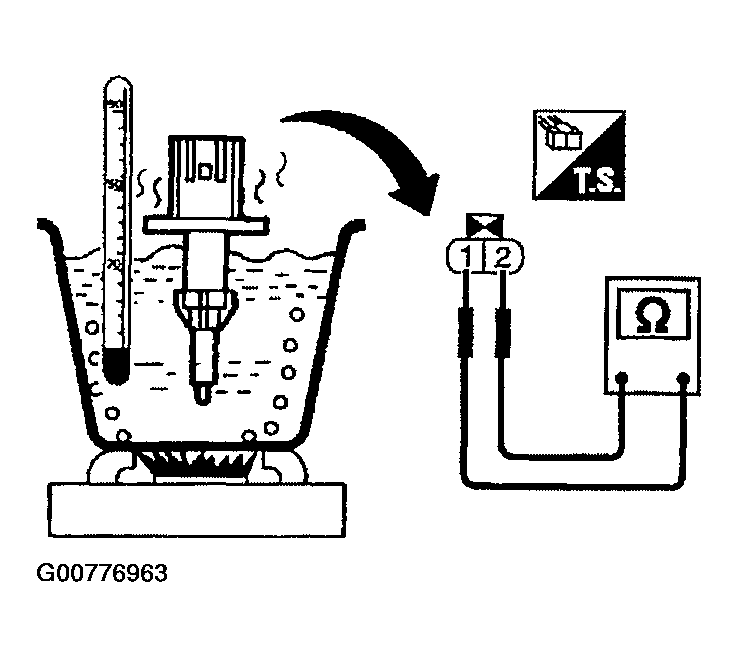

Fig 1: Checking Resistance Between ECT Sensor Terminals 1 & 2
Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data>

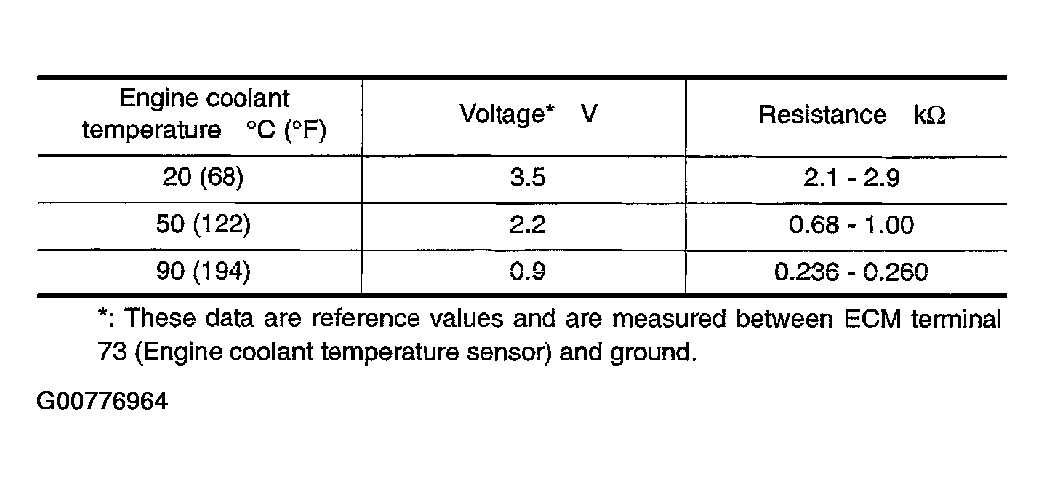

Fig 2: Engine Coolant Temperature Sensor Reference Data
Courtesy of NISSAN MOTOR CO., U.S.A.

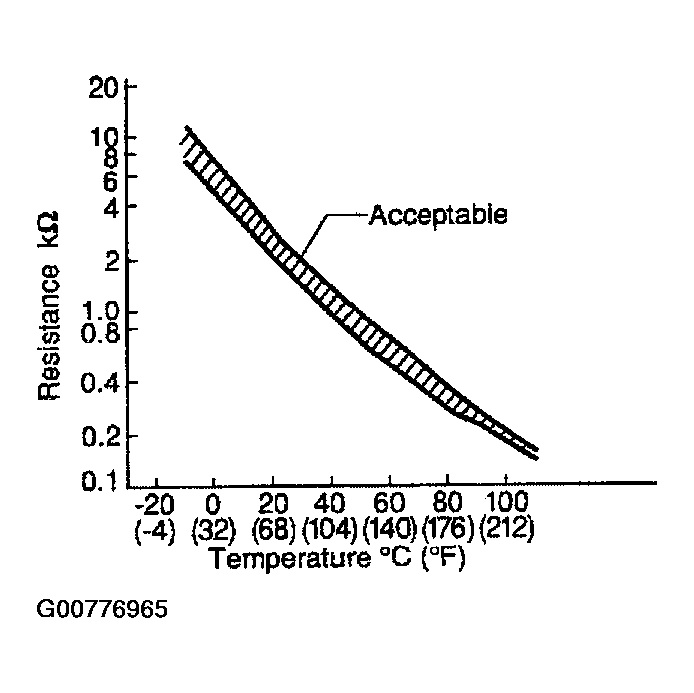

Fig 3: Engine Coolant Temperature Sensor Reference Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace engine coolant temperature sensor.
