Engine Coolant Temperature Sensor

Check resistance as shown in the figure.

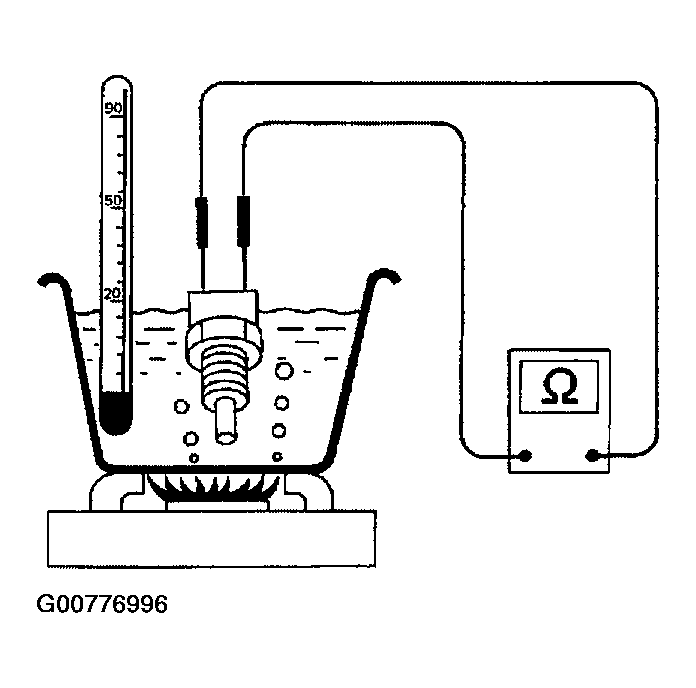

Fig 1: Checking Engine Coolant Temperature Sensor Resistance

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data>

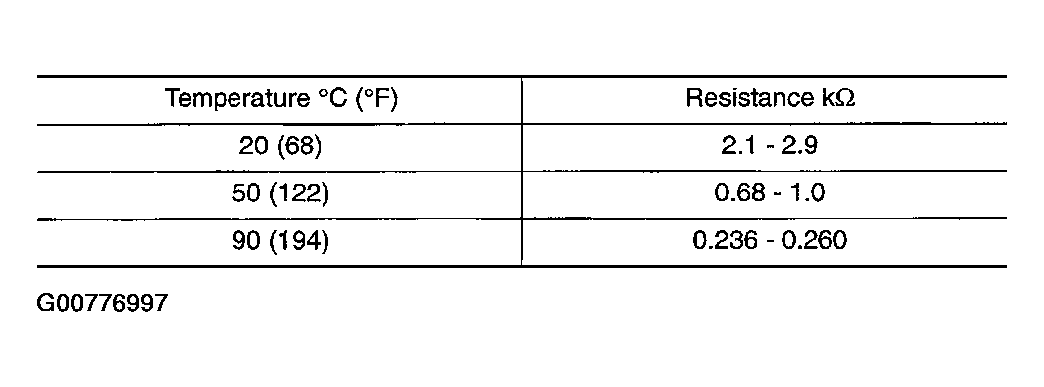

Fig 2: Engine Coolant Temperature Sensor Reference Data

Courtesy of NISSAN MOTOR CO., U.S.A.

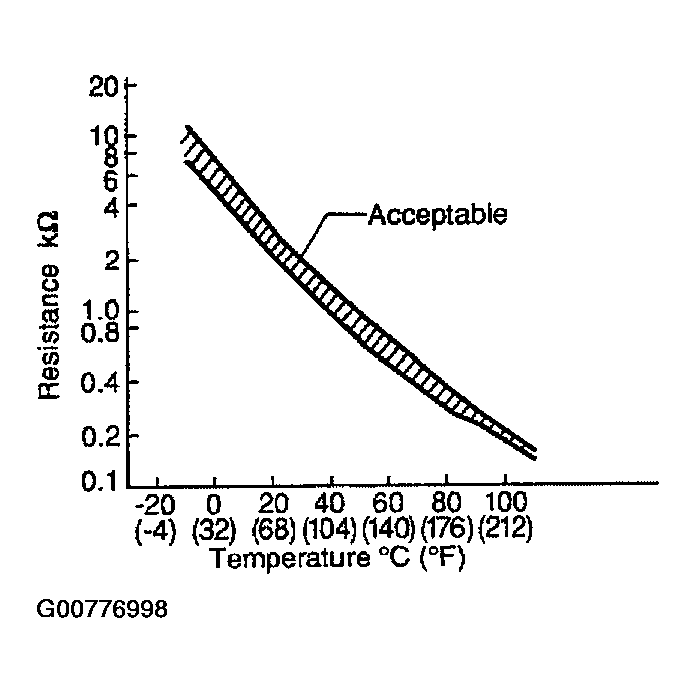

Fig 3: Engine Coolant Temperature Sensor Reference Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace engine coolant temperature sensor.
