A/T Models ULEV And M/T Models

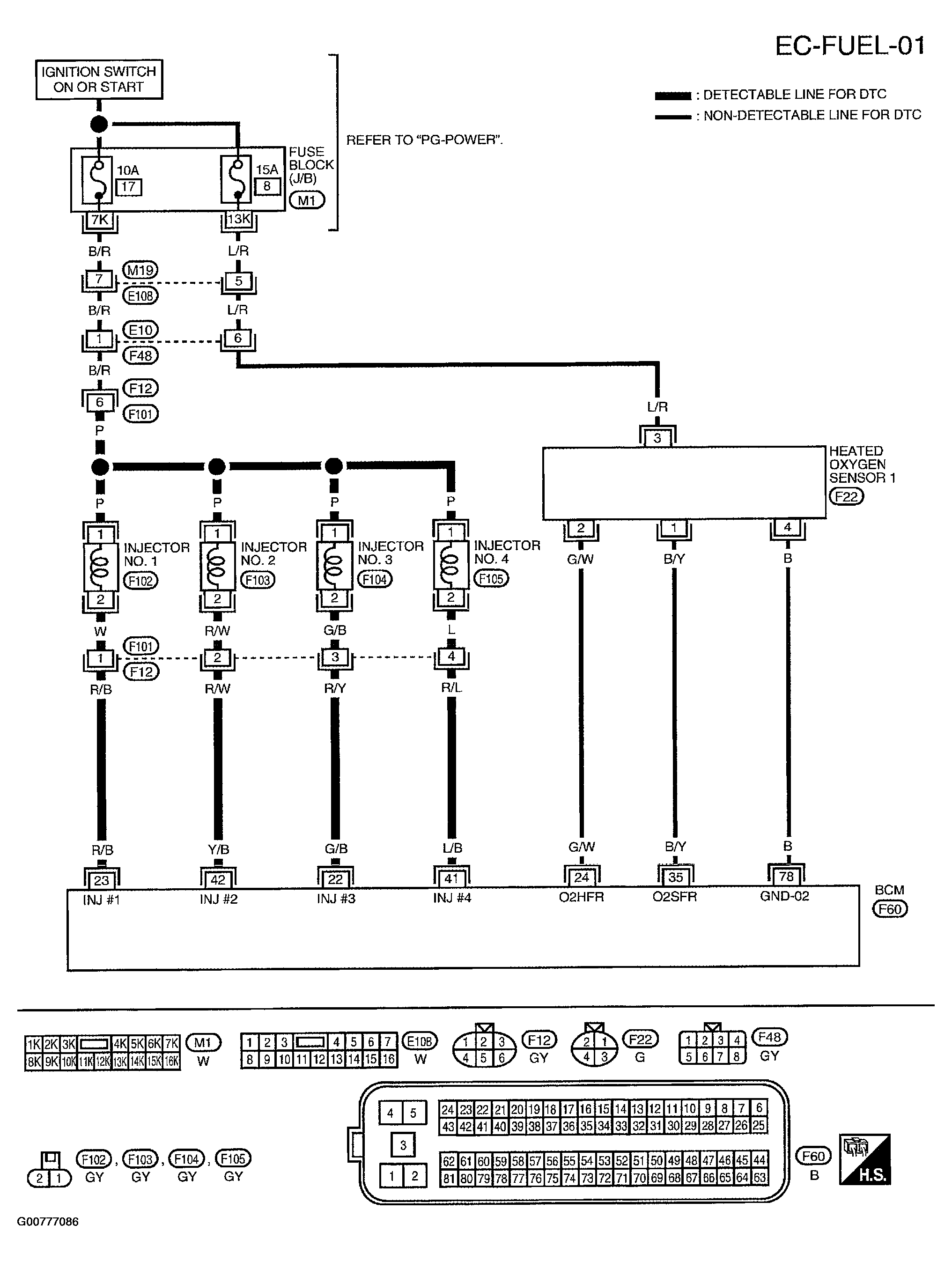

Fig 1: Fuel Injection System Wiring Diagram (A/T Models ULEV & M/T Models)
G00777086Courtesy of NISSAN MOTOR CO., U.S.A.
