With Consult-II

  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Turn ignition switch ON and select "SELF-LEARNING CONT" in "WORK SUPPORT" mode with CONSULT-II.
  4. Clear the self-learning control coefficient by touching "CLEAR".
  5. Select "DATA MONITOR" mode with CONSULT-II.

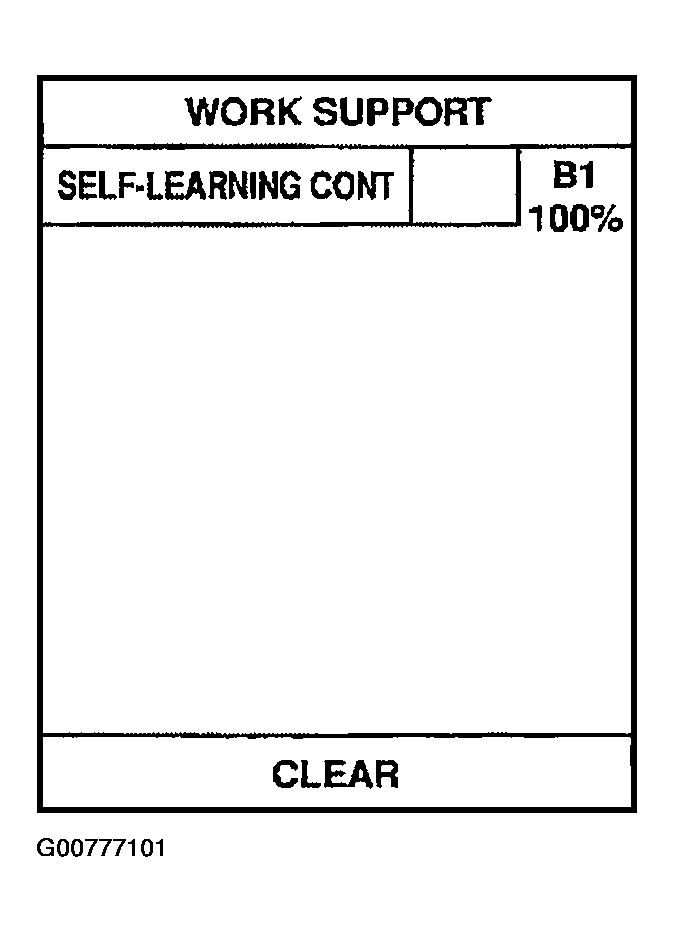

    Fig 1: Identifying Work Support Mode Of Consult-II
    G00777101Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Start engine again and let it idle for at least 10 minutes.

    The 1st trip DTC P0172 should be detected at this stage, if a malfunction exists. If so, go to "DIAGNOSTIC PROCEDURE ".

  7. If it is difficult to start engine at step 6, the fuel injection system has a malfunction, too.
  8. Crank engine while depressing accelerator pedal. If engine starts, go to "DIAGNOSTIC PROCEDURE ". If engine does not start, remove ignition plugs and check for fouling, etc.

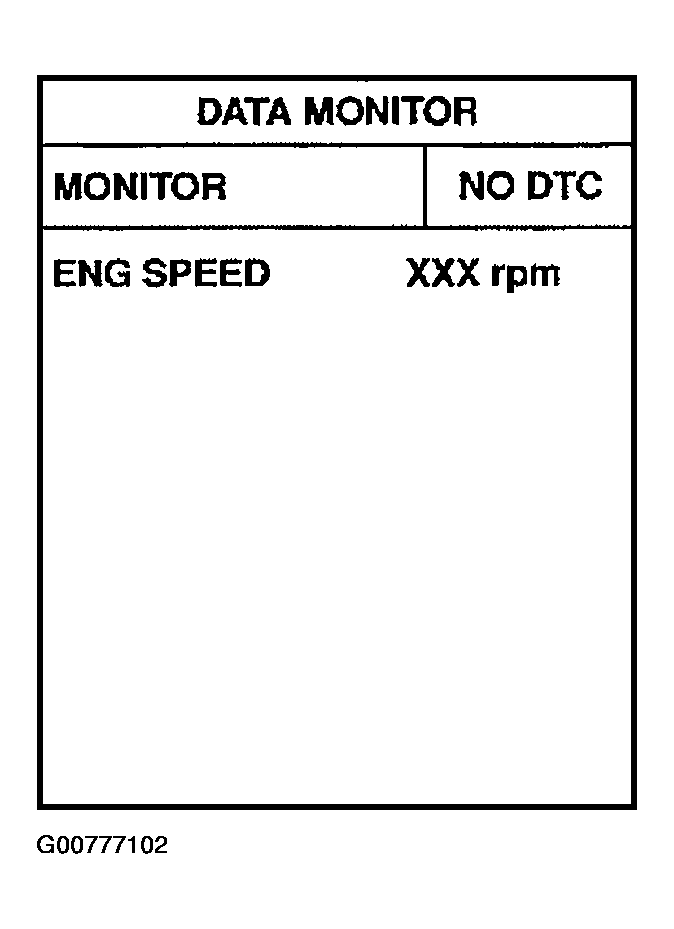

    Fig 2: Identifying Data Monitor Mode Of Consult-II
    G00777102Courtesy of NISSAN MOTOR CO., U.S.A.
