Crankshaft Position Sensor (Pos)

Disconnect crankshaft position sensor (POS) harness connector.
Loosen the fixing bolt of the sensor.
Remove the sensor.
Visually check the sensor for chipping.

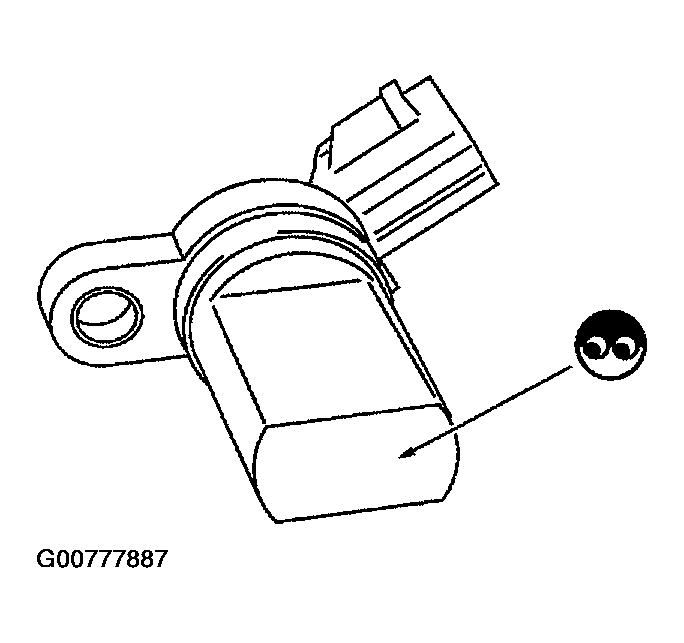

Fig 1: Identifying Crankshaft Position Sensor (POS)

G00777887

Courtesy of NISSAN MOTOR CO., U.S.A.

Check resistance as shown in the figure.
If NG, replace crankshaft position sensor (POS).

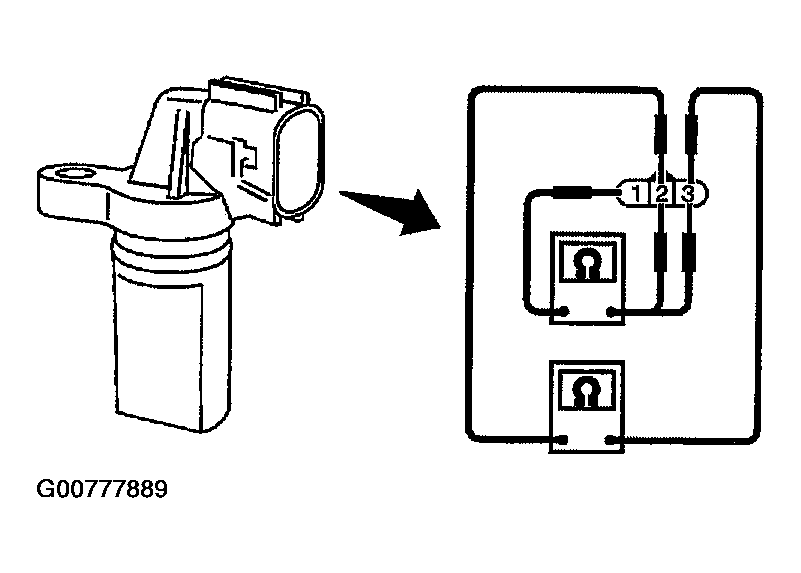

Fig 2: Checking Crankshaft Position Sensor (POS) Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.

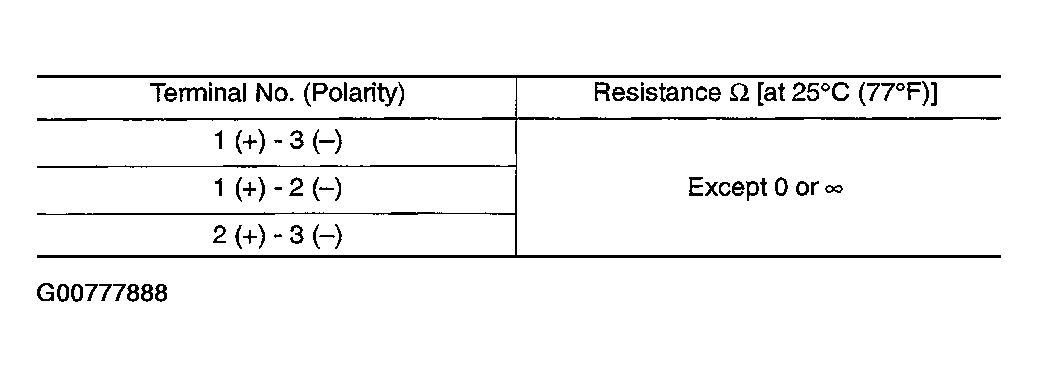

Fig 3: CKP Sensor (POS) Terminal Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
