Camshaft Position Sensor (Phase)

  1. Loosen the fixing bolt of the sensor.
  2. Disconnect camshaft position sensor (PHASE) harness connector.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.

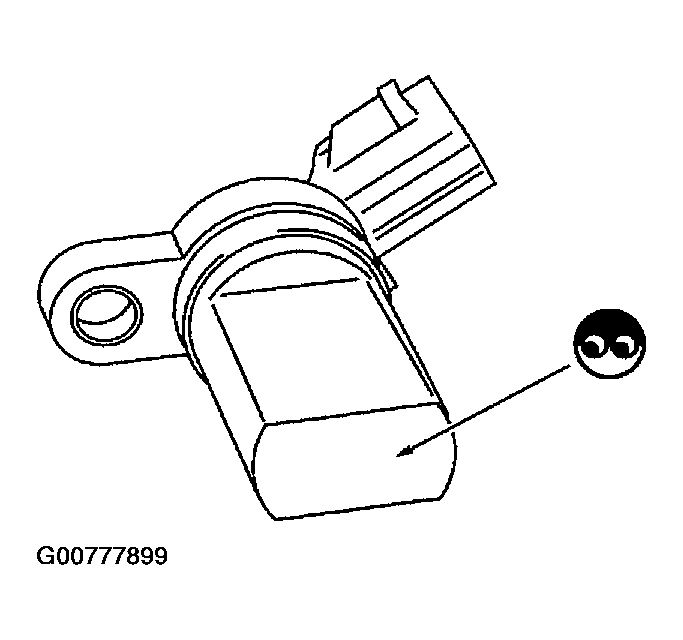

    5. Fig 1: Identifying Camshaft Position Sensor (Phase)
    G00777899Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Check resistance as shown in the figure.

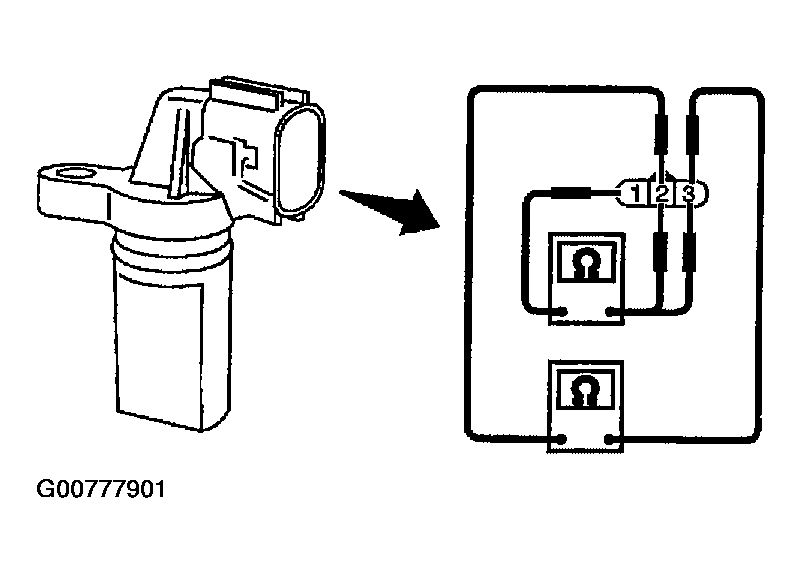

    6. Fig 2: Checking CMP Position Sensor (Phase) Resistance
    G00777901Courtesy of NISSAN MOTOR CO., U.S.A.

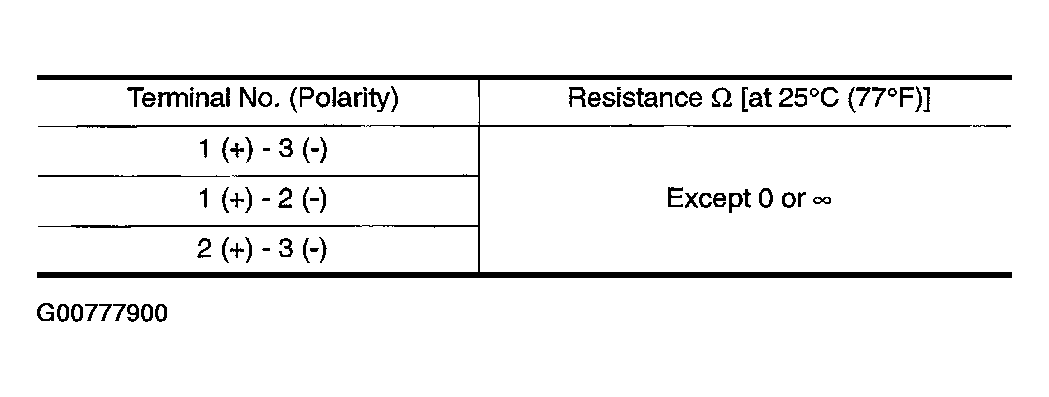

    Fig 3: CMP Position Sensor (Phase) Resistance Table
    G00777900Courtesy of NISSAN MOTOR CO., U.S.A.
