Intake Valve Timing Control Solenoid Valve

Disconnect intake valve timing control solenoid valve harness connector.
Check resistance between intake valve timing control solenoid valve terminals 1 and 2 under the following conditions.

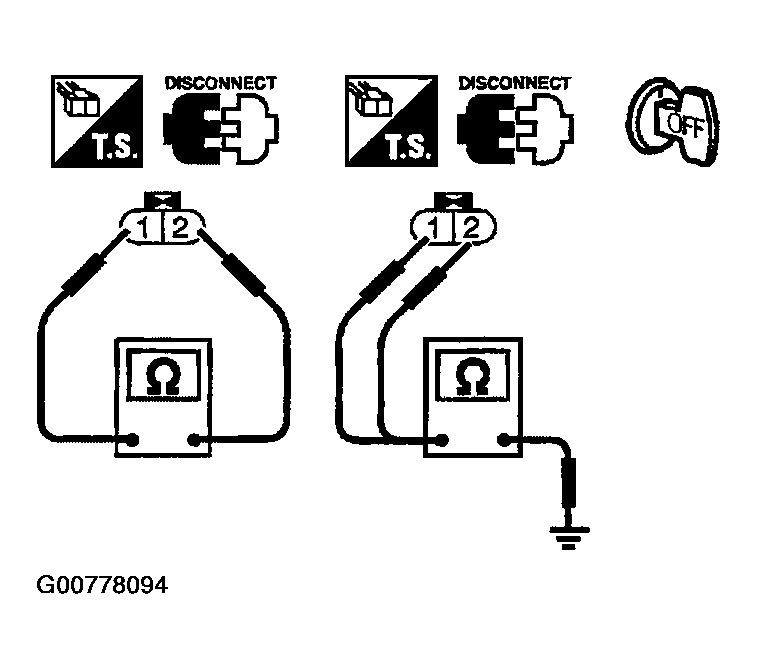

Fig 1: Checking Resistance Between IVT Control Solenoid Valve Terminals 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.

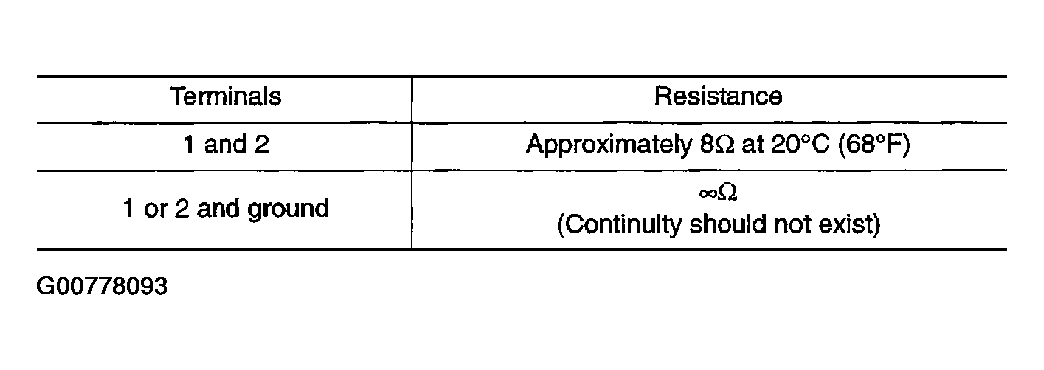

Fig 2: IVT Control Solenoid Valve Terminal Resistance Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
