With Consult-II

  1. Turn ignition switch ON and wait at least 2 seconds.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for 5 seconds.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

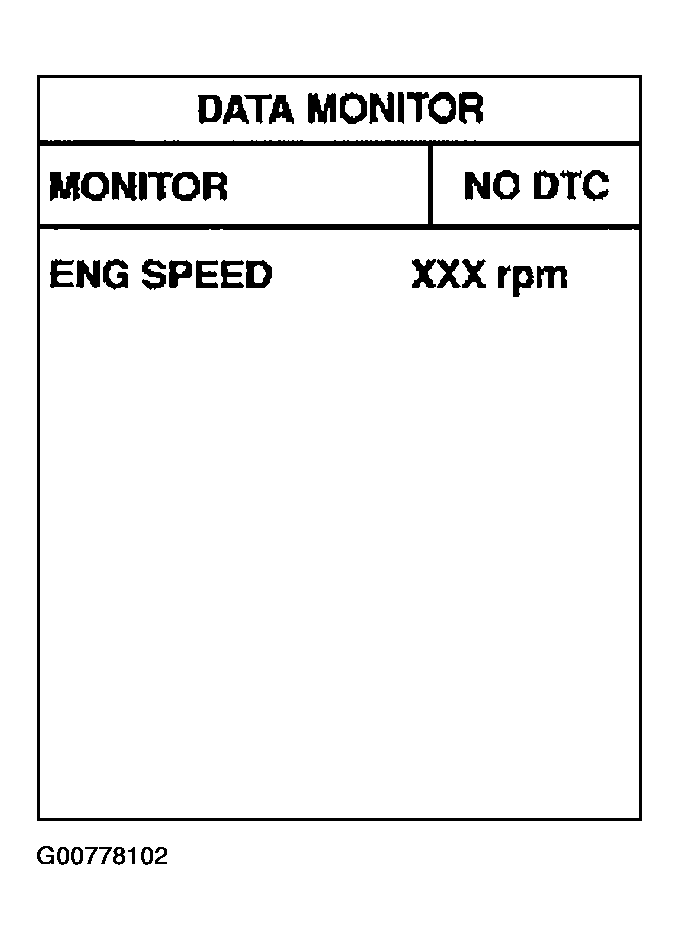

Fig 1: Selecting Data Monitor Mode With Consult-II
G00778102Courtesy of NISSAN MOTOR CO., U.S.A.
