With CONSULT-II

Start engine and warm it up to normal operating temperature.
Stop engine and wait at least 5 seconds.
Turn ignition switch ON and select "HO2S1 (B1) P1144" of "HO2S1" in "DTC WORK SUPPORT" mode with CONSULT-II.
Touch "START".
Start engine and let it idle for at least 3 minutes.
NOTE: Never raise engine speed above 3, 600 RPM after this step. If the engine speed limit is exceeded, return to step 5.

Fig 1: Selecting HO2S1 (B1) P1144 Mode With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take approximately 50 seconds or more.)

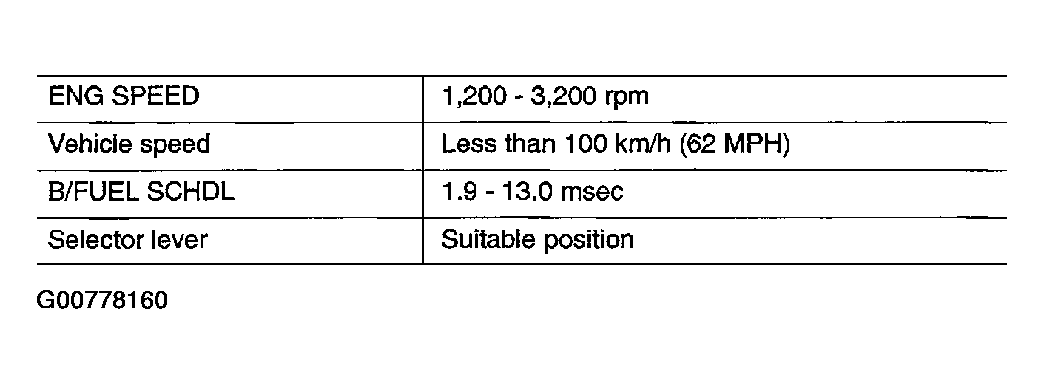

Fig 2: ENG Speed, Vehicle Speed, B/FUEL SCHDL & Selector Lever Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

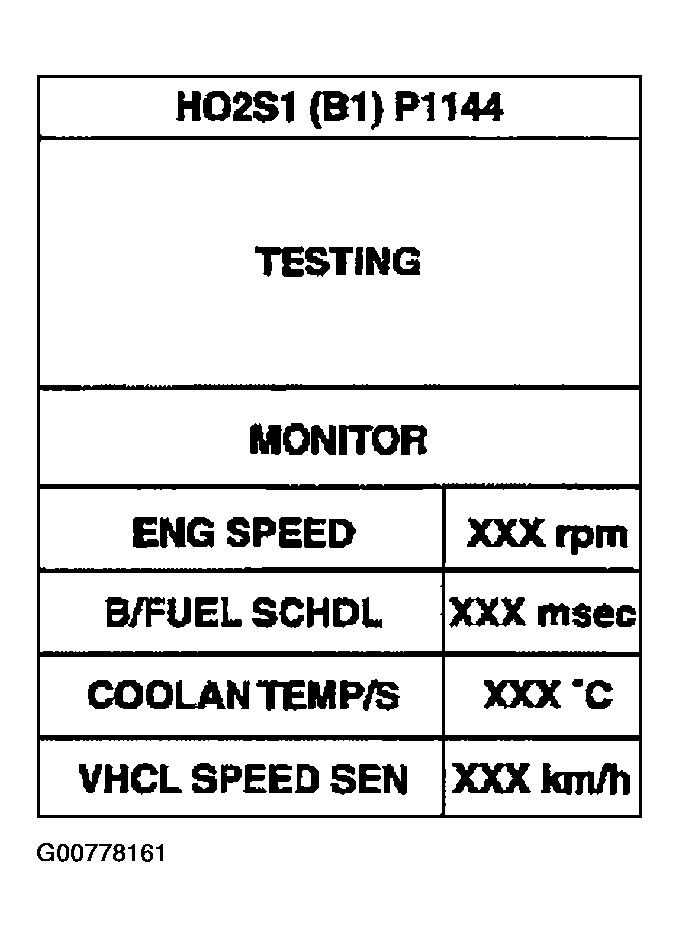

Fig 3: Displaying TESTING On Consult-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

If "TESTING" is not displayed after 5 minutes, retry from step 2.
Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".

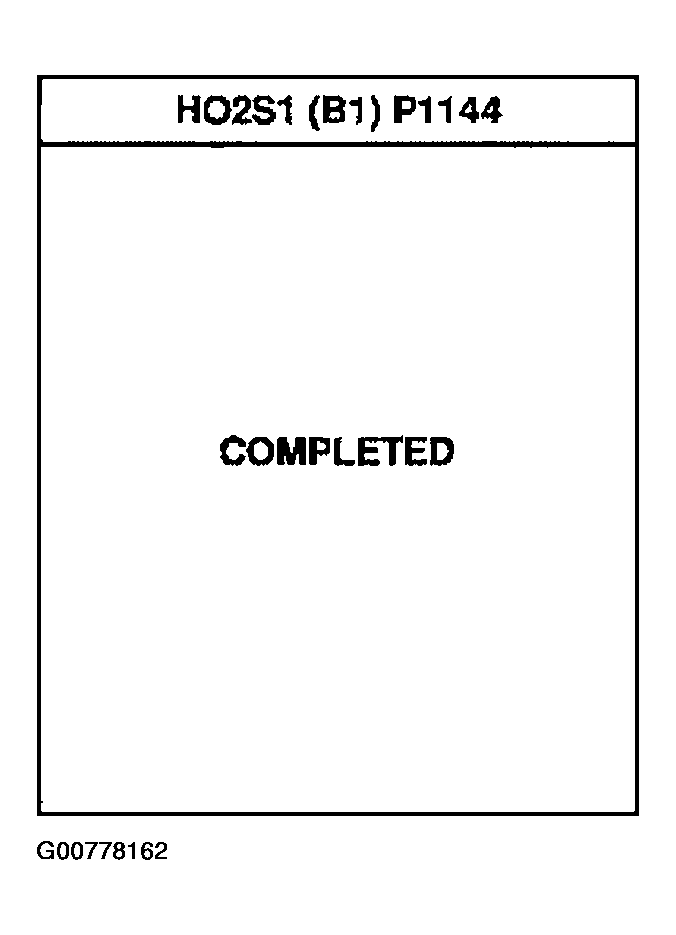

Fig 4: Displaying COMPLETED On Consult-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
