With GST

  1. Start engine and warm it up to normal operating temperature.
  2. Set voltmeter probes between ECM terminal 35 [HO2S1 (B1) signal] and engine ground.
  3. Check the following with engine speed held at 2, 000 RPM constant under no-load.
    • The voltage should go above 0.70V at least once.
    • The voltage should go below 0.21V at least once.
  4. If NG, go to "DIAGNOSTIC PROCEDURE (A/T MODELS ULEV AND M/T MODELS) ".

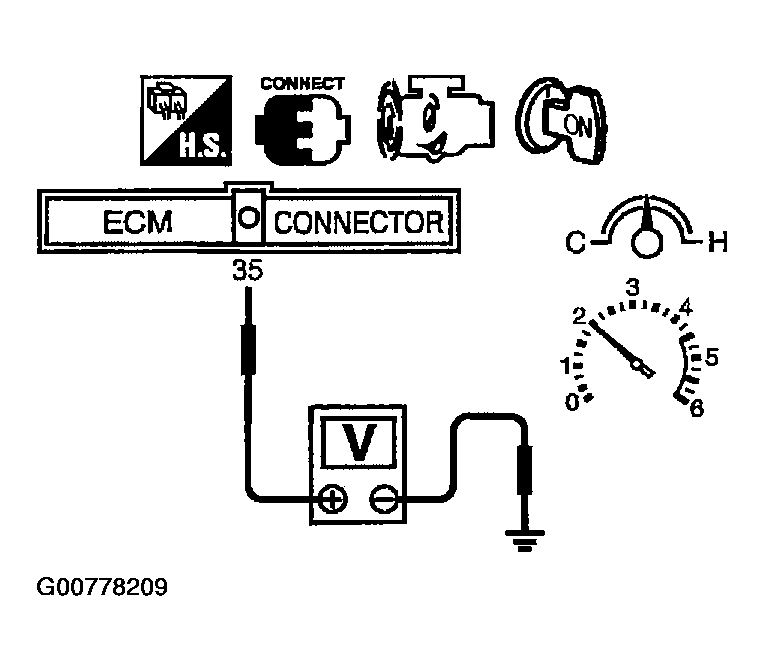

    Fig 1: Setting Voltmeter Probes Between ECM Terminal 35 & Ground
    G00778209Courtesy of NISSAN MOTOR CO., U.S.A.
