Main 12 Causes of Overheating

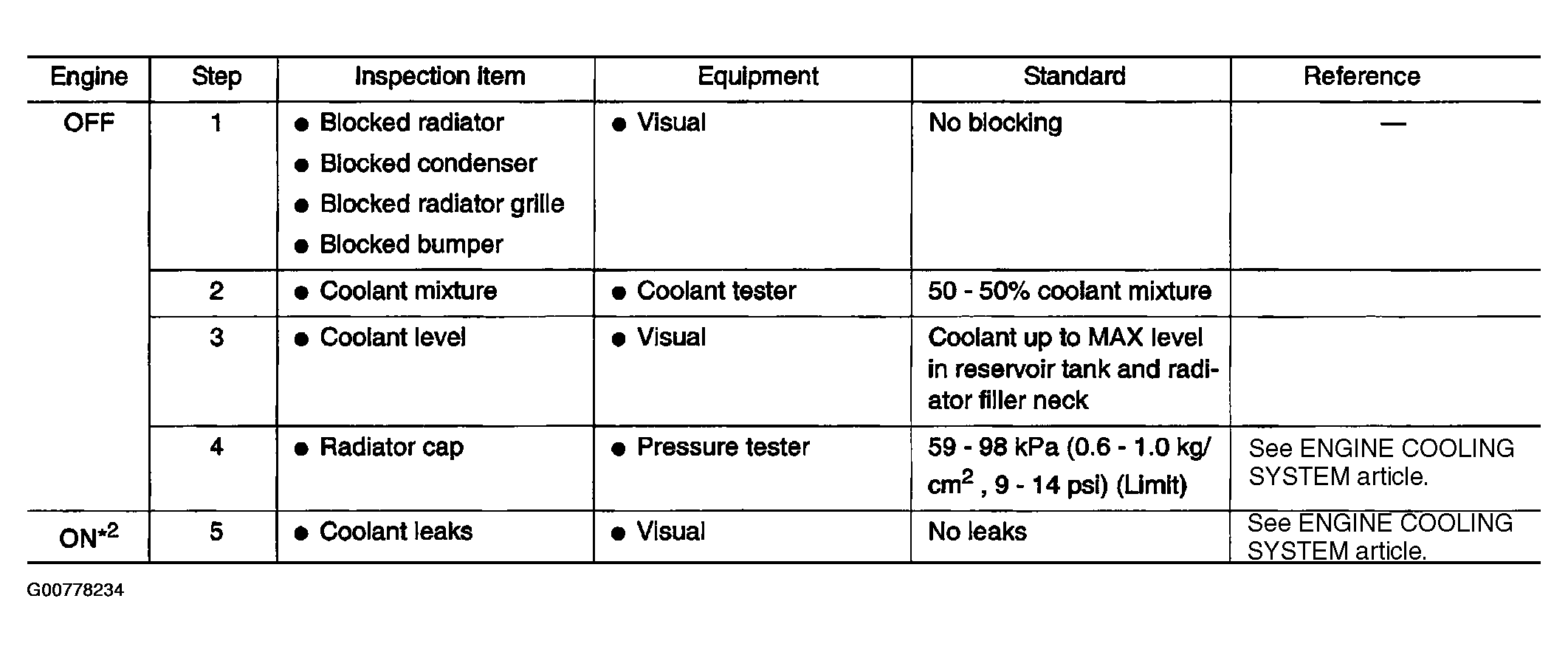

Fig 1: Main 12 Causes Of Overheating Chart (1 Of 2)
G00778234Courtesy of NISSAN MOTOR CO., U.S.A.

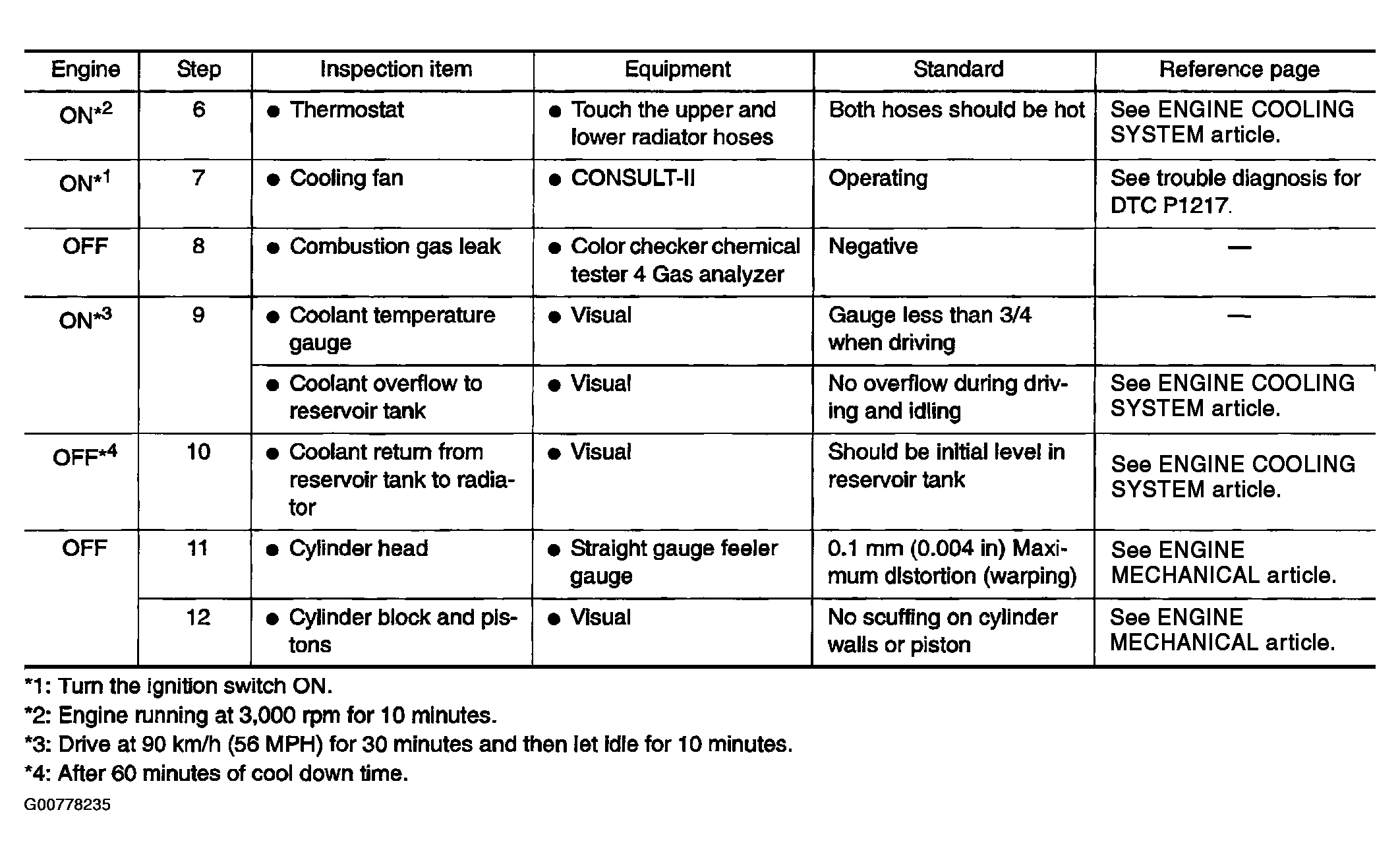

Fig 2: Main 12 Causes Of Overheating (2 Of 2)
G00778235Courtesy of NISSAN MOTOR CO., U.S.A.

For more information, refer to "OVERHEATING CAUSE ANALYSIS ".
