Diagnostic Procedure

  1. RETIGHTEN AIR FUEL RATIO (A/F) SENSOR 1
    1. Turn ignition switch OFF.
    2. Loosen and retighten the air fuel ratio (A/F) sensor 1.

      Tightening torque: 40 - 60 N-m (4.1 - 6.1 kg-m, 30 - 44 ft-lb)

      1. GO TO 2.
  2. CLEAR THE SELF-LEARNING DATA.

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Select "SELF-LEARNING CONT" in "WORK SUPPORT" mode with CONSULT-II.
    3. Clear the self-learning control coefficient by touching "CLEAR".
    4. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0171 detected? Is it difficult to start engine?

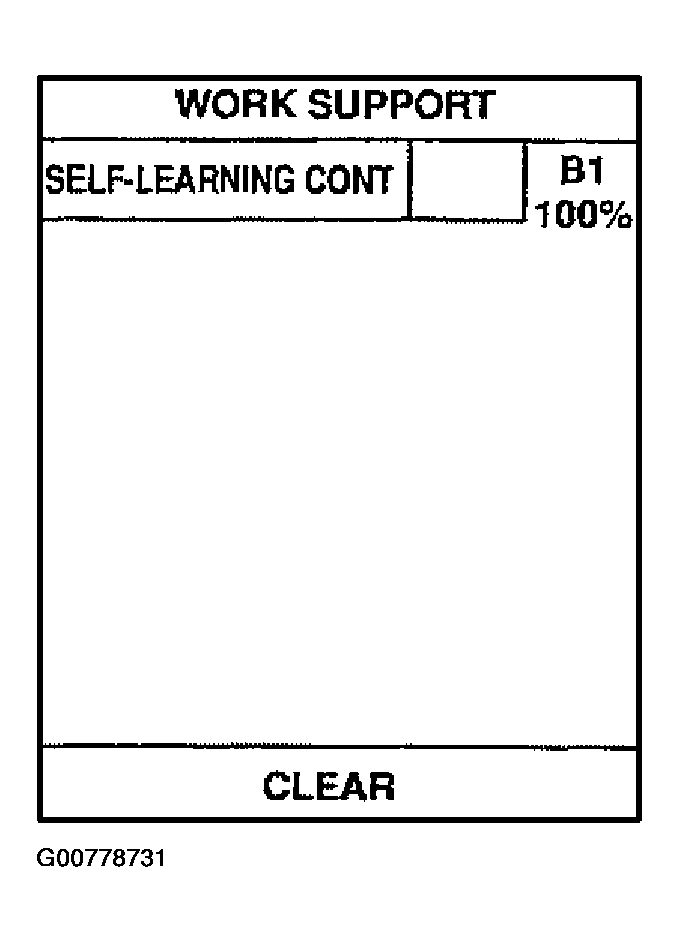

      Fig 1: Displaying WORK SUPPORT Mode With Consult-II
      G00778731Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Turn ignition switch OFF.
    3. Disconnect mass air flow sensor harness connector, and restart and run engine for at least 3 seconds at idle speed.
    4. Stop engine and reconnect mass air flow sensor harness connector.
    5. Make sure DTC P0102 is displayed.
    6. Erase the DTC memory. Refer to "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION ".
    7. Make sure DTC P0000 is displayed.
    8. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0171 detected? Is it difficult to start engine?

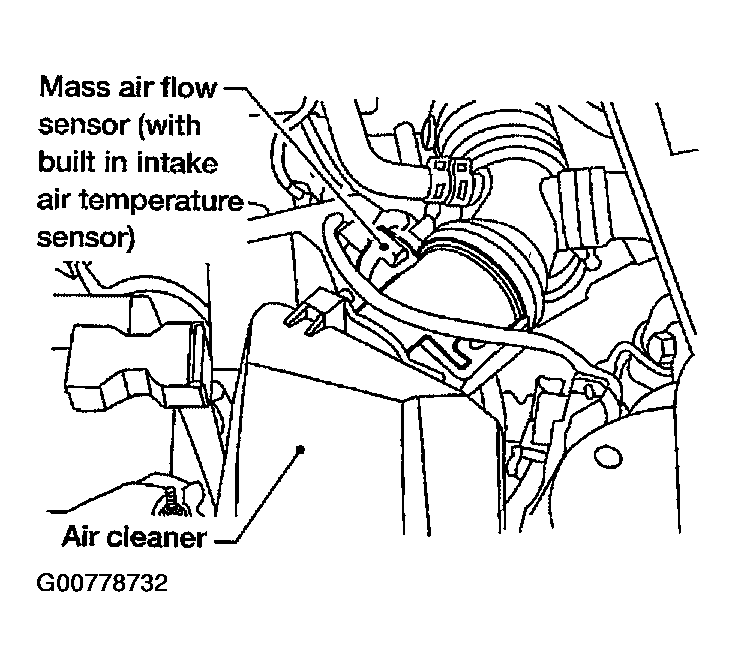

      Fig 2: Disconnecting Mass Air Flow Sensor Harness Connector
      G00778732Courtesy of NISSAN MOTOR CO., U.S.A.

    Yes or No

    1. Yes: perform trouble diagnosis for DTC P0171. Refer to DTC P0171 FUEL INJECTION SYSTEM FUNCTION .
    2. No: GO TO 3.
  3. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector and A/F sensor 1 harness connector.
    3. Check harness continuity between the following terminals. Refer to WIRING DIAGRAM .
      Fig 3: ECM & A/F Sensor 1 Terminals Table
      G00778733Courtesy of NISSAN MOTOR CO., U.S.A.

      Continuity should exist.

    4. Check harness continuity between ECM terminals 16, 35, 56, 75 or A/F sensor 1 terminals 1, 2, 5, 6 and ground. Refer to WIRING DIAGRAM .

      Continuity should not exist.

    5. Also check harness for short to power.

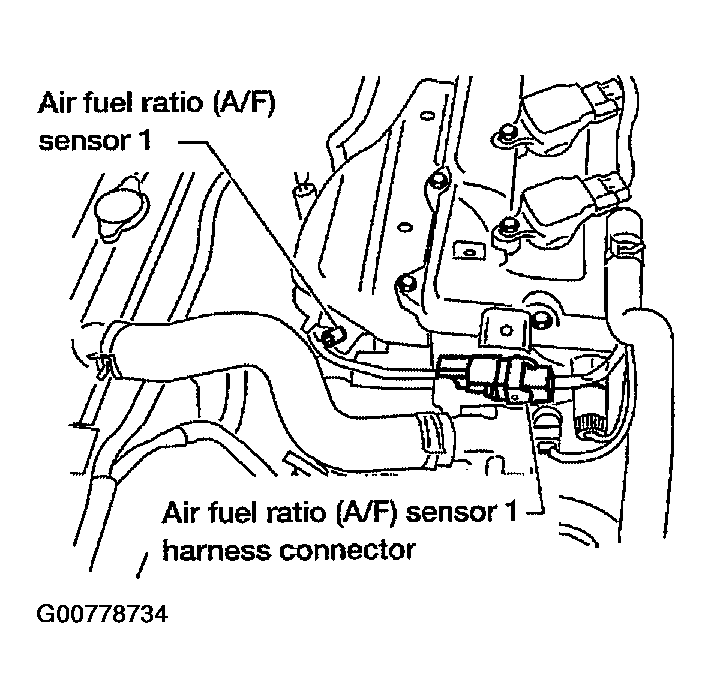

    6. Fig 4: Disconnecting A/F Sensor 1 Harness Connector
      G00778734Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK A/F SENSOR 1 HEATER

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 5.
    2. NG: Replace A/F sensor 1.
  5. CHECK INTERMITTENT INCIDENT

    Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    OK or NG

    1. OK: Replace A/F sensor 1.
    2. NG: Repair or replace.
