Diagnostic Procedure
- RETIGHTEN GROUND SCREWS
- Turn ignition switch OFF.

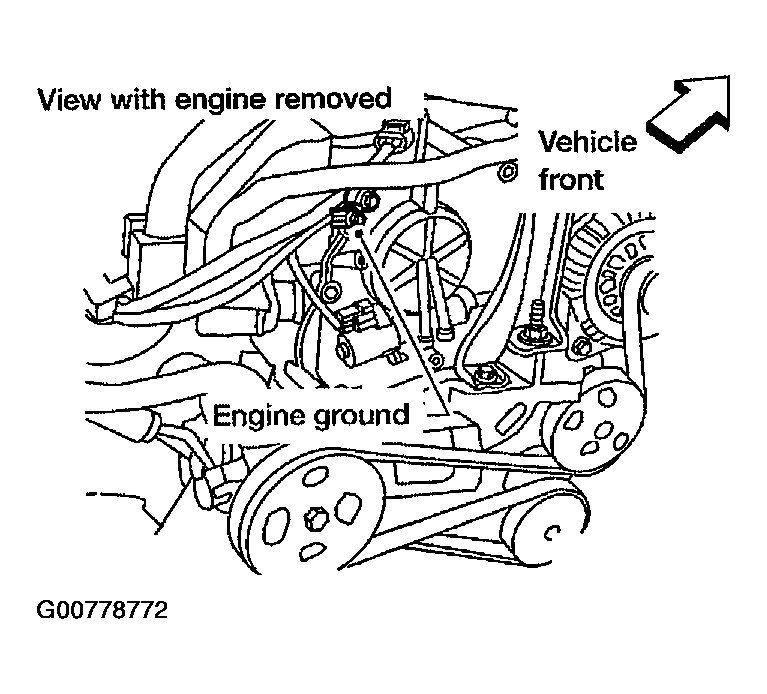

- Loosen and retighten engine ground screws.
- GO TO 2.
- RETIGHTEN AIR FUEL RATIO (A/F) SENSOR 1

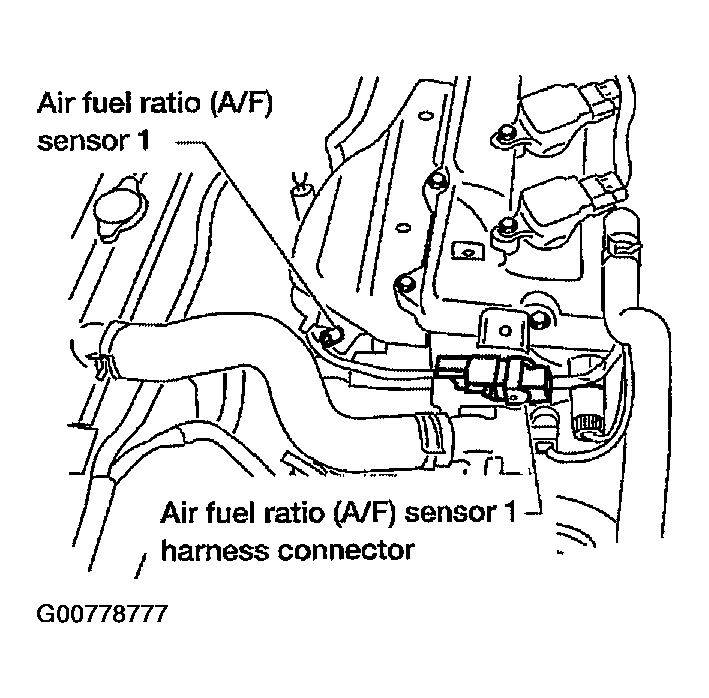

Loosen and retighten the air fuel ratio (A/F) sensor 1.
Tightening torque: 40 - 60 N-m (4.1 - 6.1 kg-m, 30 - 44 ft-lb)
- GO TO 3.
- CHECK EXHAUST GAS LEAK
- Start engine and run it at idle.

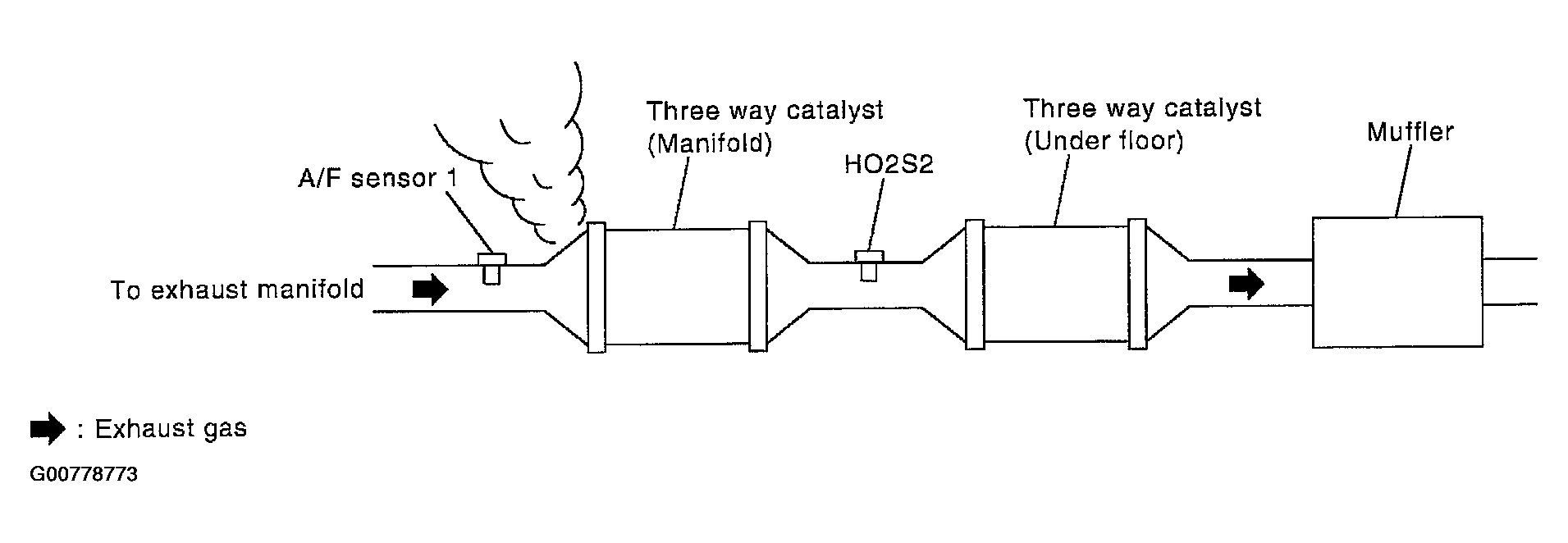

- Listen for an exhaust air leak before three way catalyst (manifold).
OK or NG
- OK: GO TO 4.
- NG: Repair or replace.
- CHECK FOR INTAKE AIR LEAK

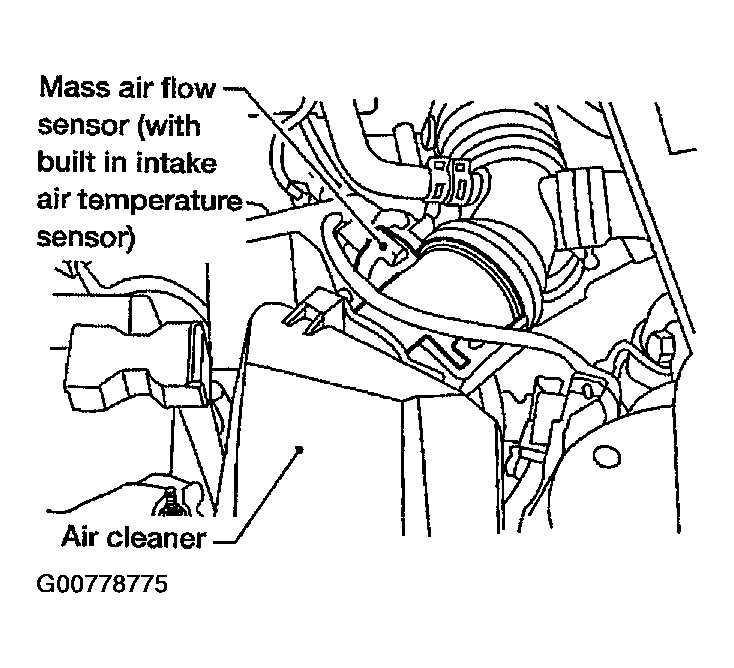

Listen for an intake air leak after the mass air flow sensor.
OK or NG
- OK: GO TO 5.
- NG: Repair or replace.
- CLEAR THE SELF-LEARNING DATA
With CONSULT-II
- Start engine and warm it up to normal operating temperature.

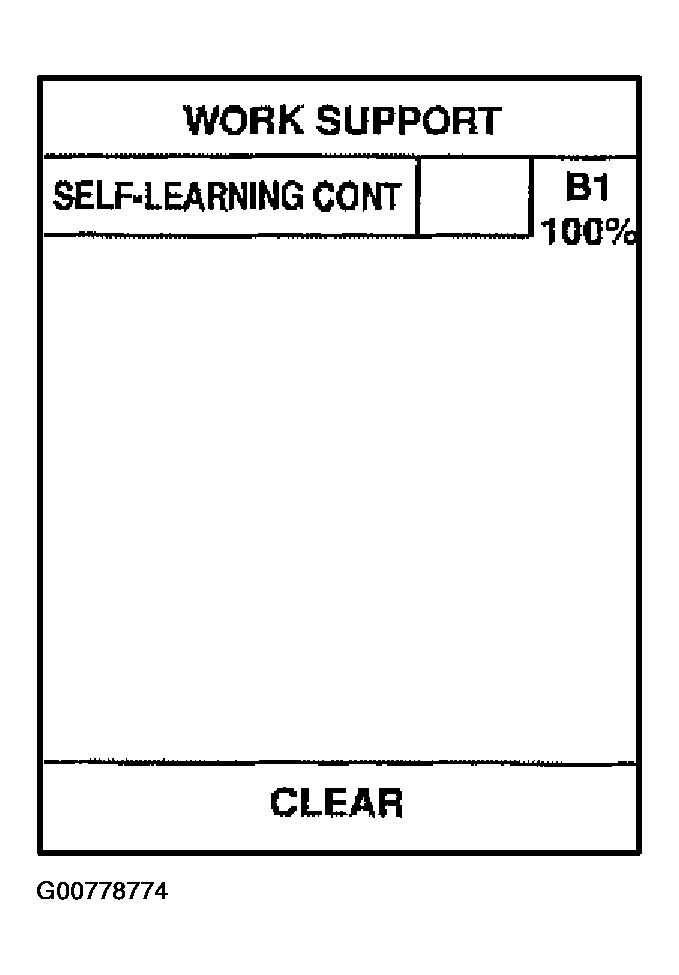

- Select "SELF-LEARNING CONT" in "WORK SUPPORT" mode with CONSULT-II.
- Clear the self-learning control coefficient by touching "CLEAR" or "START".
- Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 or P0172 detected? Is it difficult to start engine?
Without CONSULT-II
- Start engine and warm it up to normal operating temperature.
- Turn ignition switch OFF.
- Disconnect mass air flow sensor harness connector, and restart and run engine for at least 3 seconds at idle speed.
- Stop engine and reconnect mass air flow sensor harness connector.
- Make sure DTC P0102 is displayed.
- Erase the DTC memory. Refer to "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION ".
- Make sure DTC P0000 is displayed.
- Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 or P0172 detected? Is it difficult to start engine?
Yes or No
- Yes: perform trouble diagnosis for DTC P0171, P0172. Refer to DTC P0171 FUEL INJECTION SYSTEM FUNCTION , DTC P0172 FUEL INJECTION SYSTEM FUNCTION .
- No: GO TO 6.
- CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT
- Turn ignition switch OFF.
- Disconnect ECM harness connector and A/F sensor 1 harness connector.
- Check harness continuity between the following terminals. Refer to WIRING DIAGRAM .
Continuity should exist.
- Check harness continuity between ECM terminals 16, 35, 56, 75 or A/F sensor 1 terminals 1, 2, 5, 6 and ground. Refer to WIRING DIAGRAM .
Continuity should not exist.
- Also check harness for short to power.
OK or NG
- OK: GO TO 7.
- NG: Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER
Refer to "COMPONENT INSPECTION ".
OK or NG
- OK: GO TO 8.
- NG: Replace A/F sensor 1.
- CHECK MASS AIR FLOW SENSOR
Refer to "COMPONENT INSPECTION ".
OK or NG
- OK: GO TO 9.
- NG: Replace mass air flow sensor.
- CHECK PCV VALVE
Refer to "POSITIVE CRANKCASE VENTILATION " .
OK or NG
- OK: GO TO 10.
- NG: Repair or replace PCV valve.
- CHECK INTERMITTENT INCIDENT
Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
OK or NG
- OK: Replace A/F sensor 1.
- NG: Repair or replace.
