ASCD Steering Switch

  1. Disconnect ASCD steering switch.
  2. Check continuity between ASCD steering switch terminals 1 and 4 with pushing each switch.

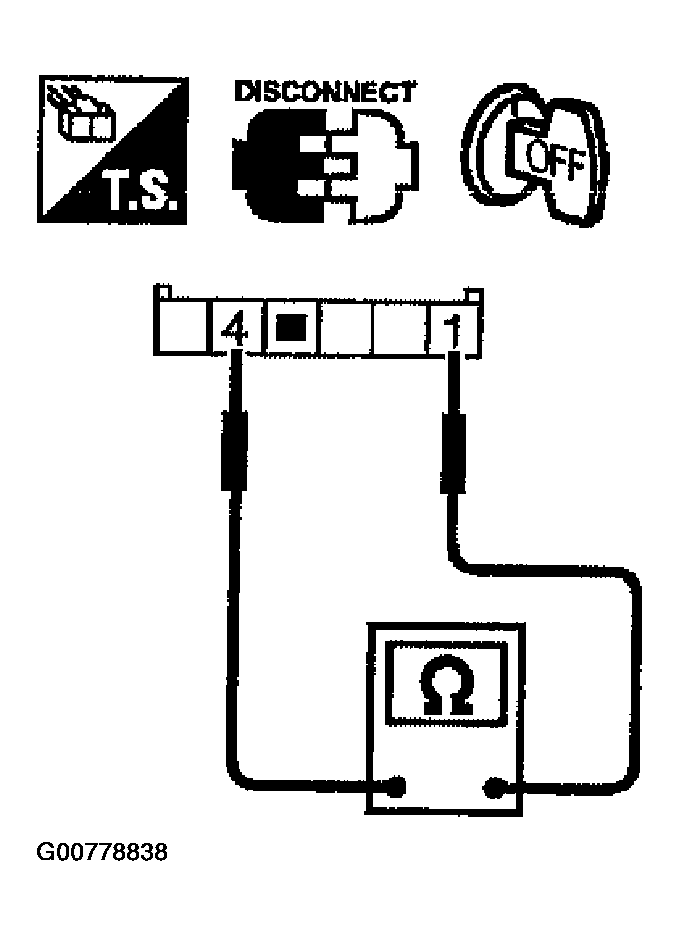

    Fig 1: Checking Continuity Between ASCD Steering Switch Terminals 1 & 4
    G00778838Courtesy of NISSAN MOTOR CO., U.S.A.

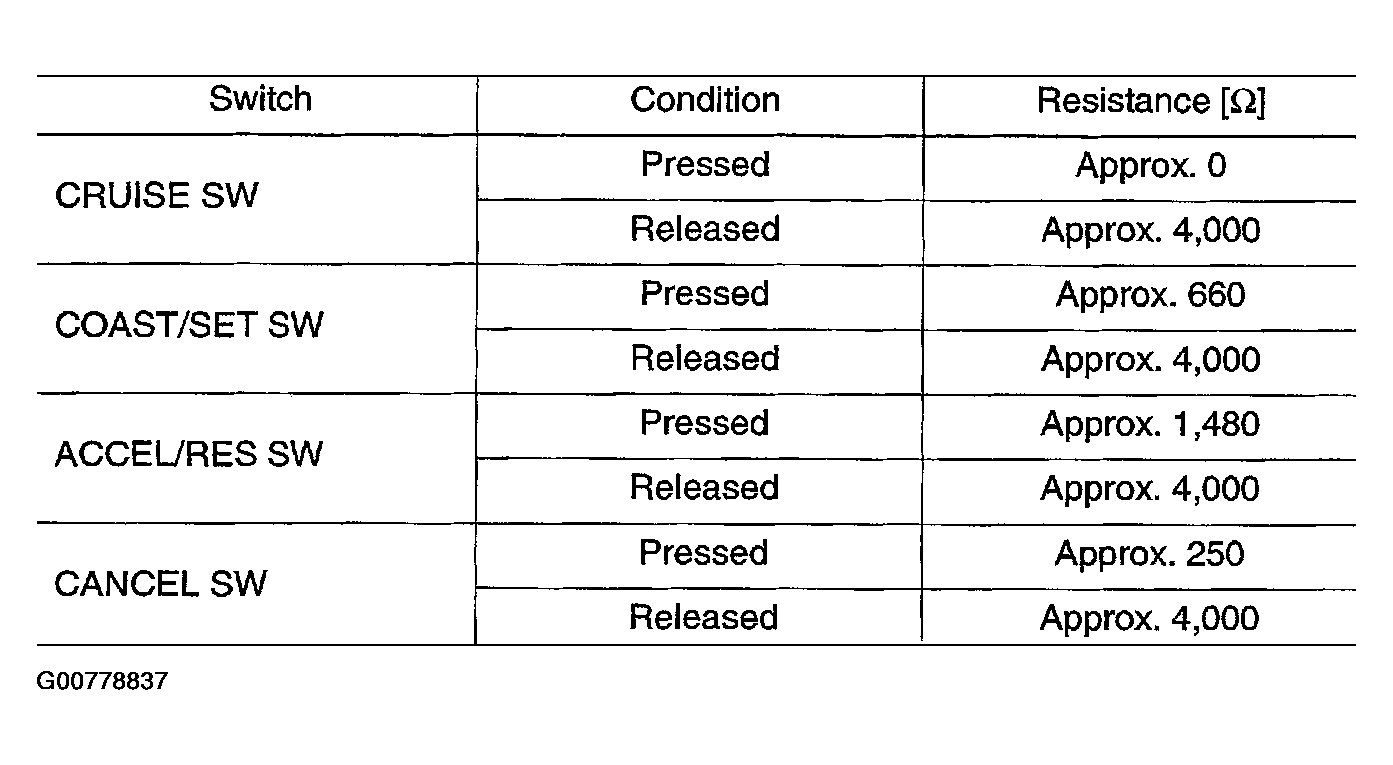

    Fig 2: ASCD Steering Switch Resistance Chart
    G00778837Courtesy of NISSAN MOTOR CO., U.S.A.
