ASCD Clutch Switch (For M/T Models)

Turn ignition switch OFF.
Disconnect ASCD clutch switch harness connector.
Check harness continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.
If NG, adjust ASCD clutch switch installation, refer to "CLUTCH SYSTEM ", and perform step 3 again.

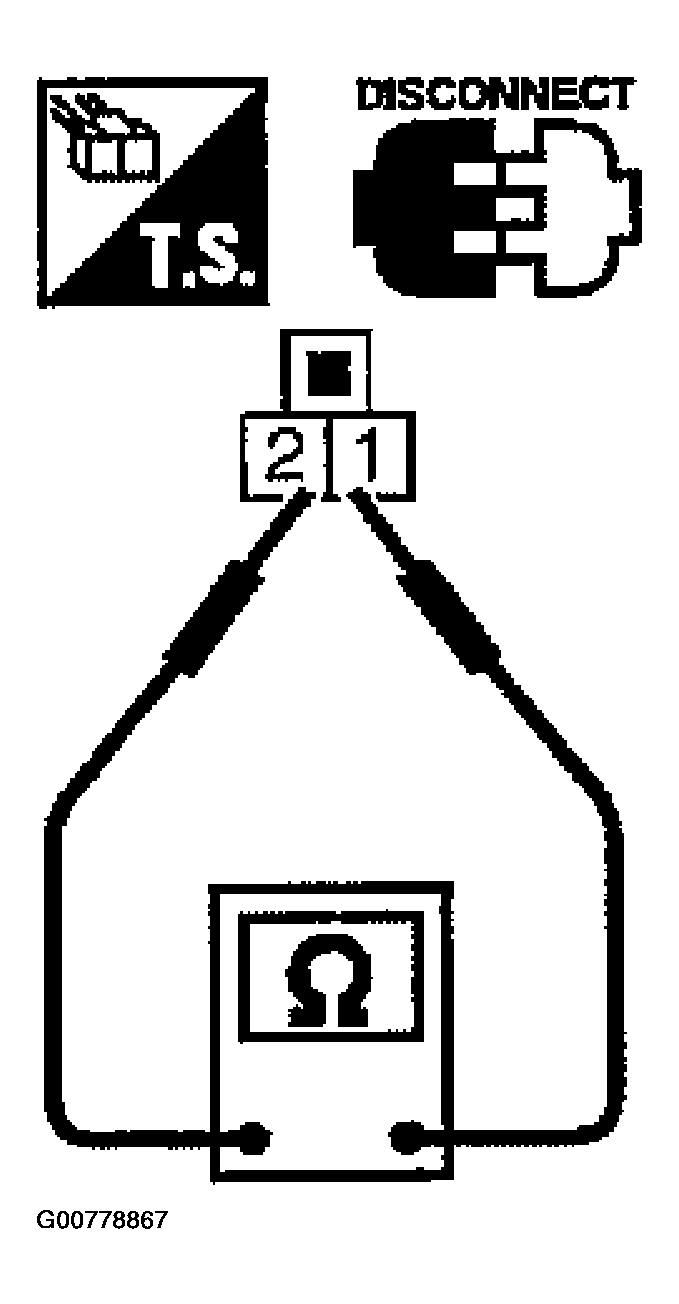

Fig 1: Checking Harness Continuity Between ASCD Clutch Switch Terminals 1 & 2
Courtesy of NISSAN MOTOR CO., U.S.A.

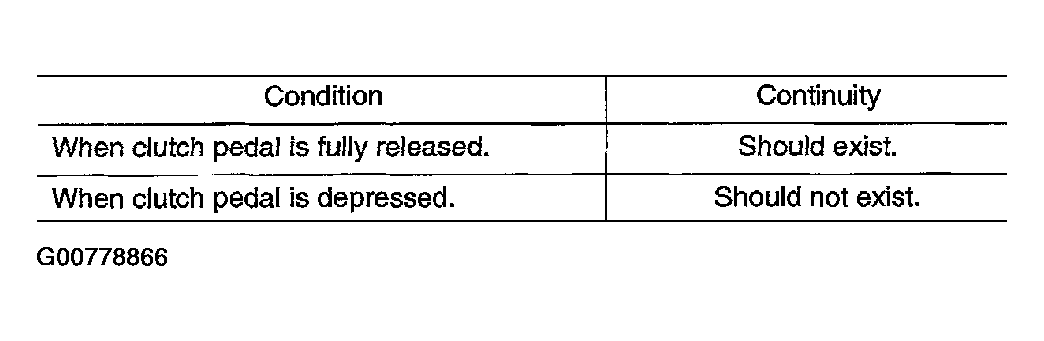

Fig 2: Continuity Table
Courtesy of NISSAN MOTOR CO., U.S.A.
