With Consult-II

Turn ignition switch ON.
Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT-II. Then check the "P/N POSI SW" signal under the following conditions.

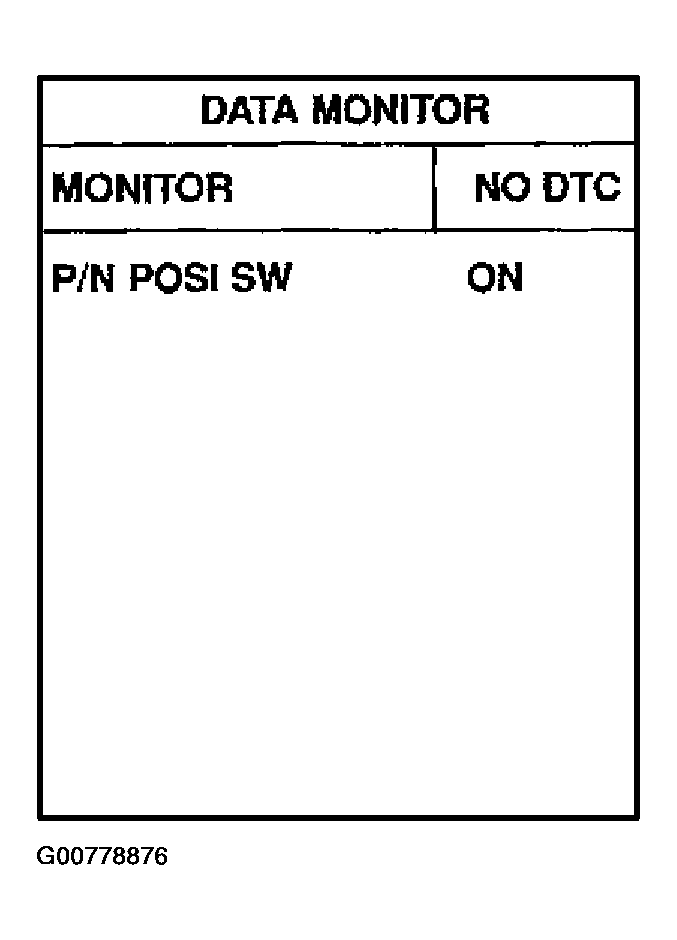

Fig 1: Selecting P/N POSI SW With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.

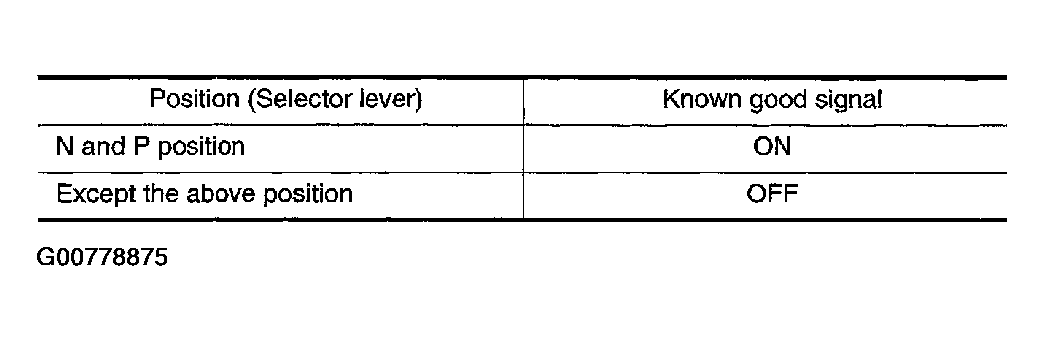

Fig 2: Position (Selector Lever) Condition Table
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, go to "DIAGNOSTIC PROCEDURE ".

If OK, go to following step.
Select "DATA MONITOR" mode with CONSULT-II.
Start engine and warm it up to normal operating temperature.
Maintain the following conditions for at least 50 consecutive seconds.

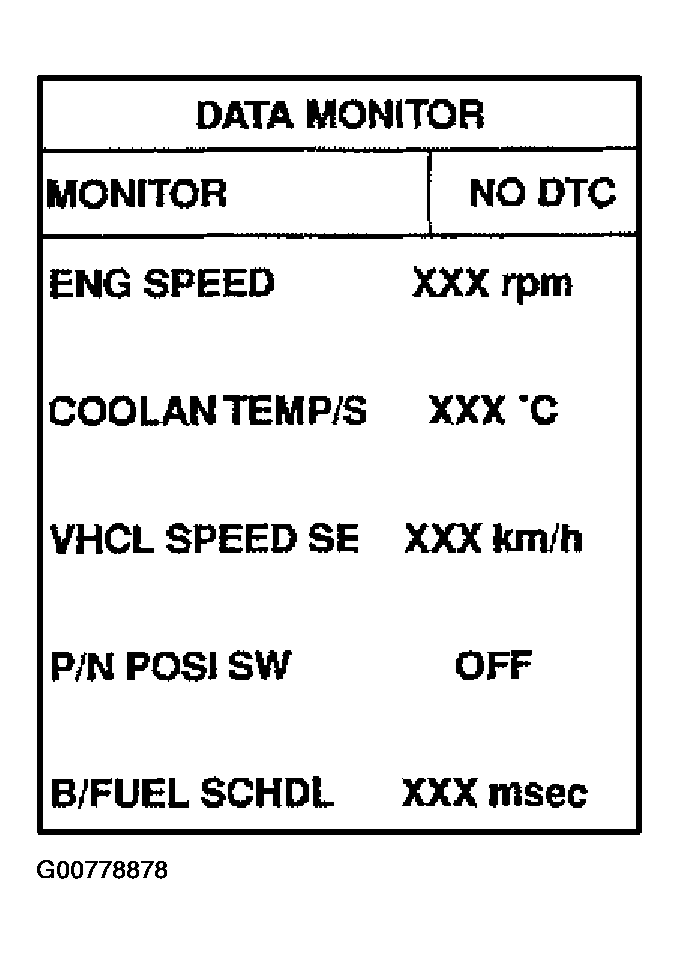

Fig 3: Displaying Data Monitor Mode With Consult-II

G00778878

Courtesy of NISSAN MOTOR CO., U.S.A.

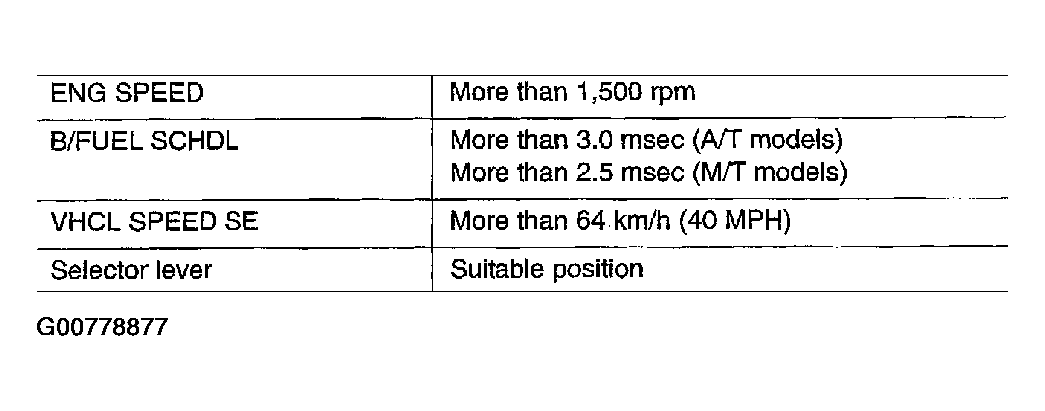

Fig 4: Specifications Table

G00778877

Courtesy of NISSAN MOTOR CO., U.S.A.

If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
