DTC P1706: PNP Switch: Wiring Diagram

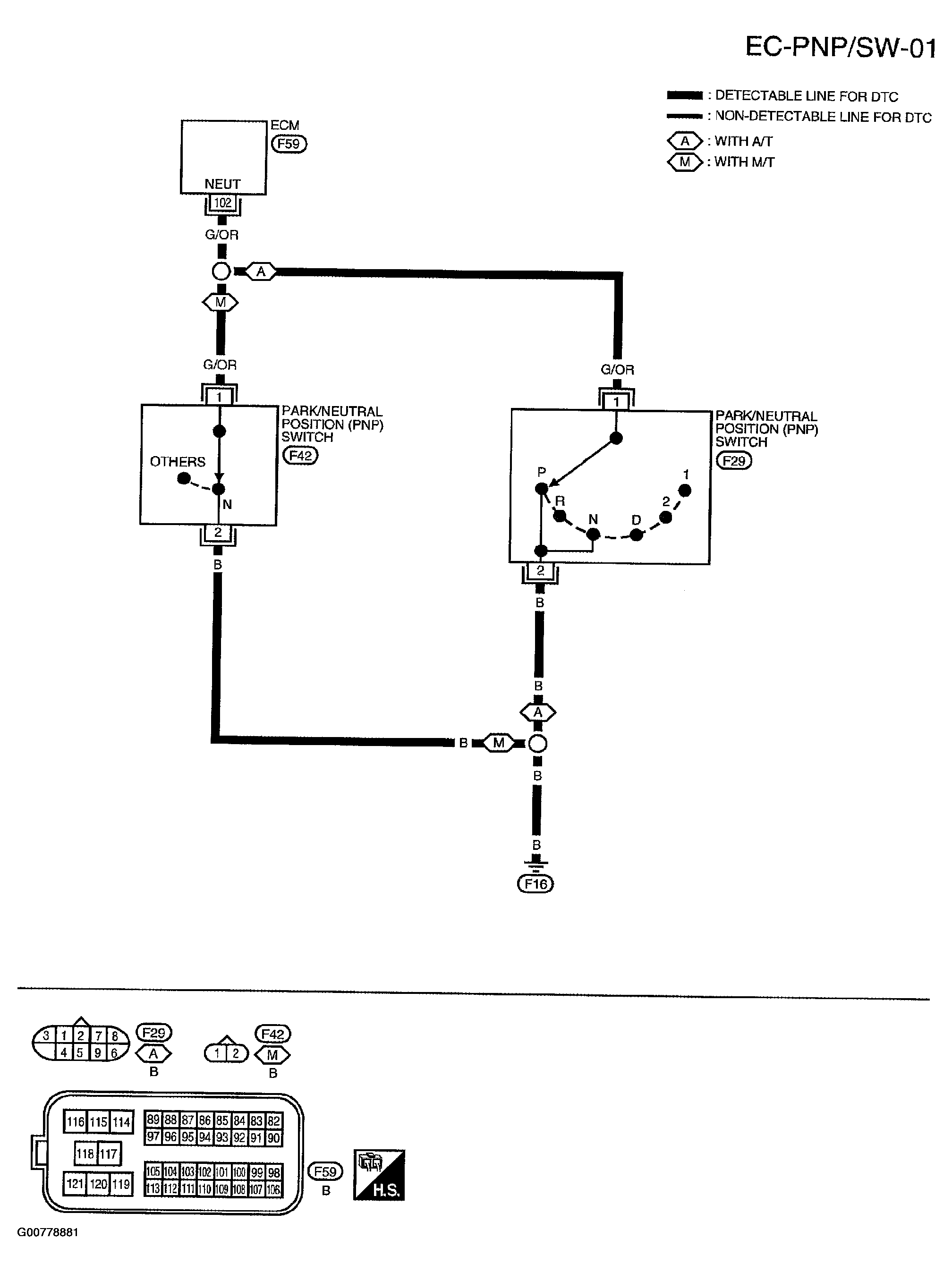

Fig 1: PNP Switch Wiring Diagram
G00778881Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

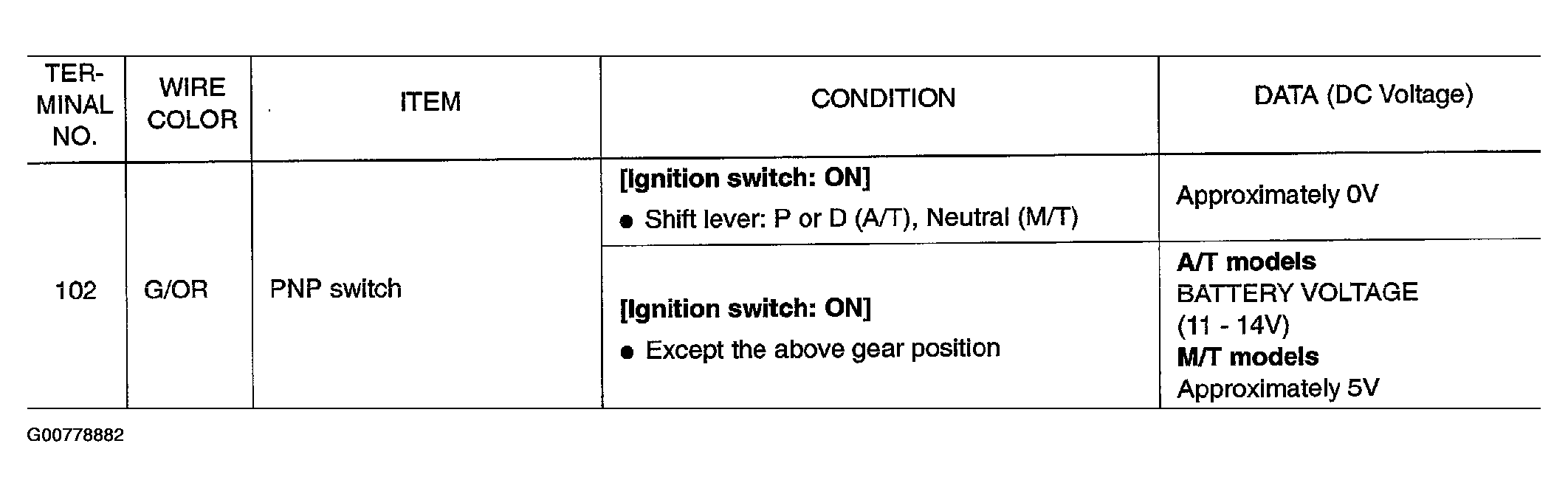

Fig 2: PNP Switch Specification Data
G00778882Courtesy of NISSAN MOTOR CO., U.S.A.
